Antwerpen 18 February 2019 |
|
Name |

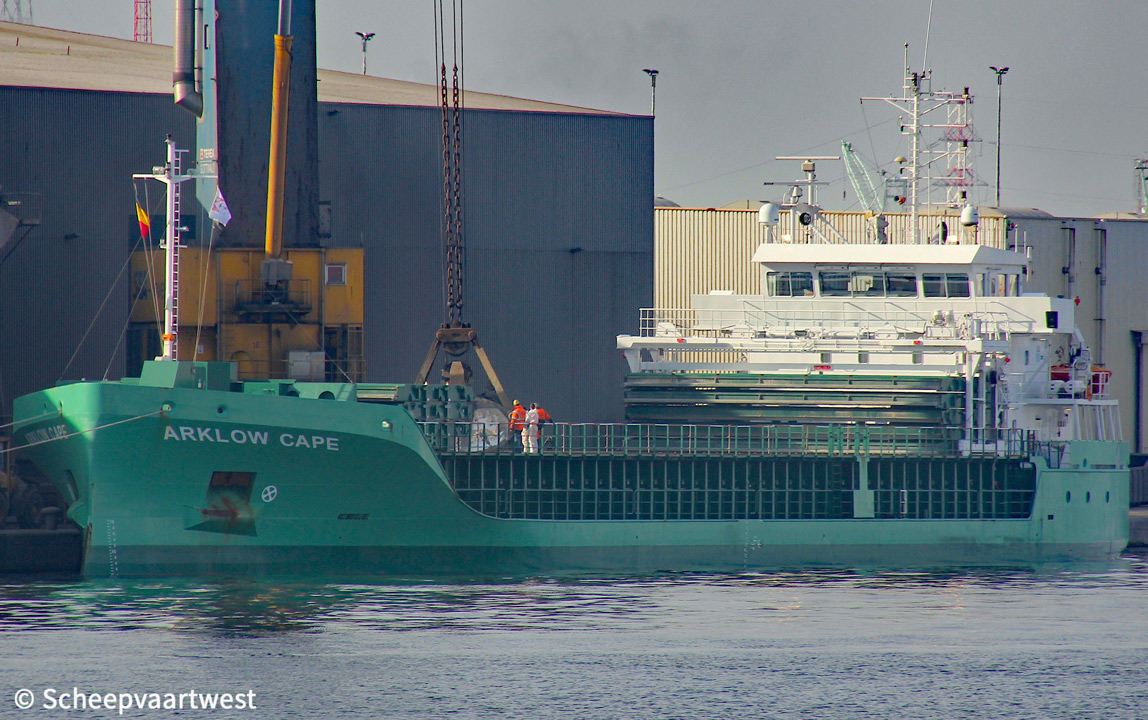

ARKLOW CAPE |
|
Type |
General cargo ship - heavycargo |
|
IMO-number |
9757096 |
|
Call sign |
EISA9 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
2.999 t |
|
DWT |
5.085 t |
|
NT |
1.692 t |
|
Length |
87,40 m overall 84,99 m between perpendiculars |
|
Breadth |
14,99 m moulded 15,20 m extreme |
|
Draught |
Summer: 6,26 m |
|
Air draft |
21,70 m in ballast |
|
Freeboard |
868 mm |
|
Depth |
7,12 m moulded |
|
Speed |
12,0 knots |
|
Built |
2016 |
|
Launch date |
21/10/2016 |
|
Date of completion |
18/11/2016 |
|
Builder |
Scheepswerf Ferus Smit The Netherlands |
|
Yard number |
425 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x May be placed in 11 positions for cargo separation |
|
Main engine |
1x Mak 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.740 kW / 2.324 hp at 720 rpm Built: 28/01/2016 Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Screw propeller controllable pitch - aft at 148 rpm |
|
Shaft generator |
1x 425 kVA - 340 kW |
|
Generators |
2x Main diesel generatorsets each 208 kVA - 166 kW - 247 hp |
|
Emergency generator |
1x Diesel generatorset 100 kVA - 80 kW - 109 hp |
|
Bow thruster |
1x 275 kW |
|
Number of cargo holds |
1 59,80 x 12,60 x 8,50 m |
|
Total capacity of holds |
Grain & bale: 6.196 m³ / 218.800 ft³ excluded bulkheads 6.105,8 m³ / 215.614,22 ft³ included bulkheads |
|
Hold ventilation |
6x Changes per hour in empty hold |
|
Number of hatches |
1 59,80 x 12,60 m |
|
Hatch type |
Pontoon system |
|
Max permitted loads |
Hatch covers: 1,75 m²/h Tanktop: 15,0 t/m² |
|
Tank capacities |
HFO: 101 m³ Gas oil: 96 m³ |
|
Crew size |
10 |
|
Manager |
Arklow Shipping Nederland BV |
|
Registered owner |
Crinnis Shipping Ltd. |
|
Latest data adjustment |
02 March 2019 |
