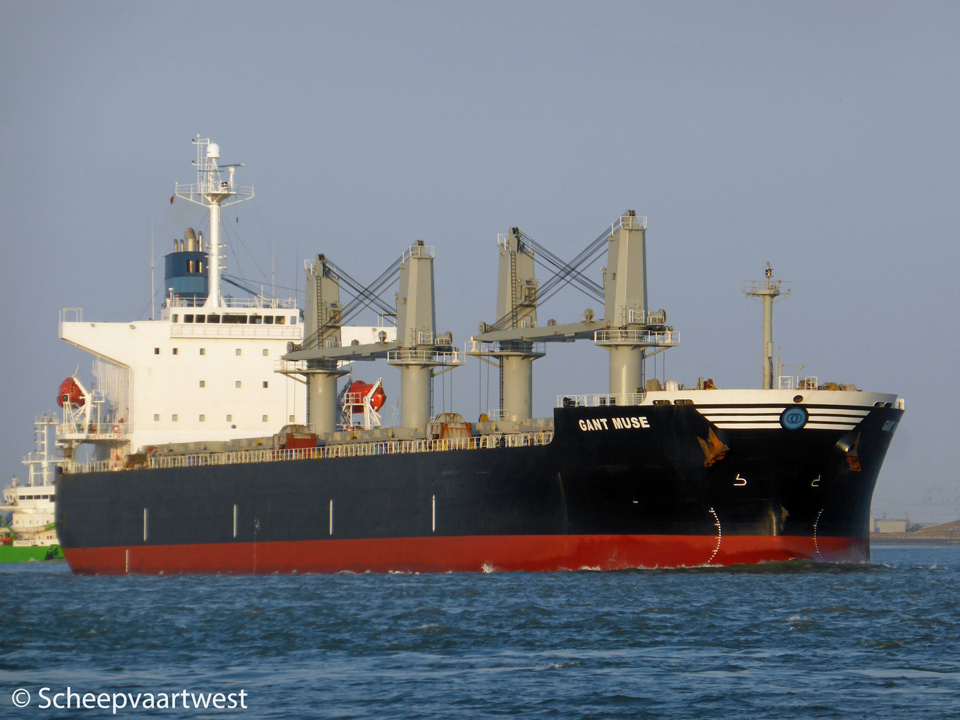

Gant Muse 01

Westerschelde 01 August 2015



Name

GANT MUSE

Previous names

2004 - 06/2014 Triton Stork

Type

Bulk carrier - Single deck

IMO-number

9328675

Call sign

D5GJ7

Flag

Liberia

Port of registry

Monrovia

Previous flags

Republic of Panama: Panama City - Call sign: H3WL

GT

31.242 t registered

DWT

Summer: 56.024 t

NT

18.504 t registered

Length

189,99 m overall

Breadth

32,26 m moulded

Draught

Summer: 12,58 m

Moulded Lx B x D

182,00 x 32,26 x 17,90 m

Registered L x B x D

182,97 x 32,26 x 17,90 m

Freeboard

Summer: 5.370 mm

Depth

19,70 m moulded

Speed

Max: 16,4 knots

Service: 13,5 ballast

Built

2004

Keel laid

09/07/2004

Launch date

16/10/2004

Date of completion

17/12/2004

Builder

Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works
Tamano
Japan

Yard number

1577

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W/Mitsui 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.900 hp at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 470 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,97 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators total 1.900 kVA

Number of holds

5

Hold 1: fore 7,90m, aft 23,54 m, length 29,92 m

Hold2,3,4: fore 23,54 m, aft 23,54 m, length 29,20 m

Hold 5: fore 23,54 m, aft 10,60 m, length 28,20 m

Cargo hold capacity

Grain / Bulk

Hold 1: 12.713,5 / 12.132,0 m³
Hold 2: 14.709,8 / 14.090,0 m³
Hold 3: 14.652,0 / 14.050,7 m³
Hold 4: 14.709,8 / 14.050,7 m³
Hold 5: 14.025,6 / 13.720,8 m³

Total: 70.810,7 / 68.044,2 m³

Number of hatches

5

Hatch 1: 17,60 x 18,92 m

Hatches: 2/3/4/5: 21,12 x 18,92 m

Hatch type

Mac-Gregor electro-hydraulic folding type

Max permitted loads

Tanktop:

Hold 1: 18,8 t/m²

Hold 2: 18,7 t/m²

Hold 3: 27,9 t/m²

Hold.4: 18,7 t/m²

Hold 5: 19,9 t/m²

Deck:

No 1-5: 3,70 t/m² (except between hatch ends)

Hatch cover:

2,014 t/m²

Tank capacities

Fuel oil: 2.510 m³

Fresh water: 428 m³

Cargo gear

4x Cranes - SWL 30,0 t each

4x Grabs electro- hydraulic - 12,0 m³ each

Manager

Anthony Giavridis Maritime Incorporation
39 Aggelou Metaxa
Glyfada, Athens
Greece

Registered owner

Sun Pearl Enterprises Inc.

Latest data adjustment

14 January 2019
