Westerschelde 15 August 2017 |
 |
|
| Westerschelde 31/07/18 | |
|
Name |

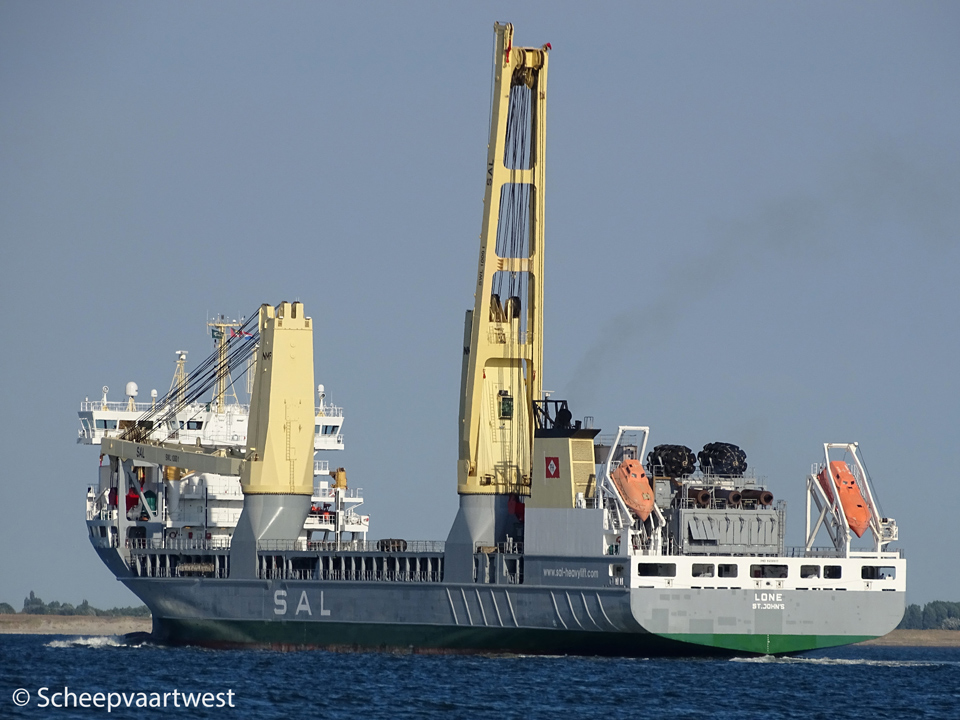

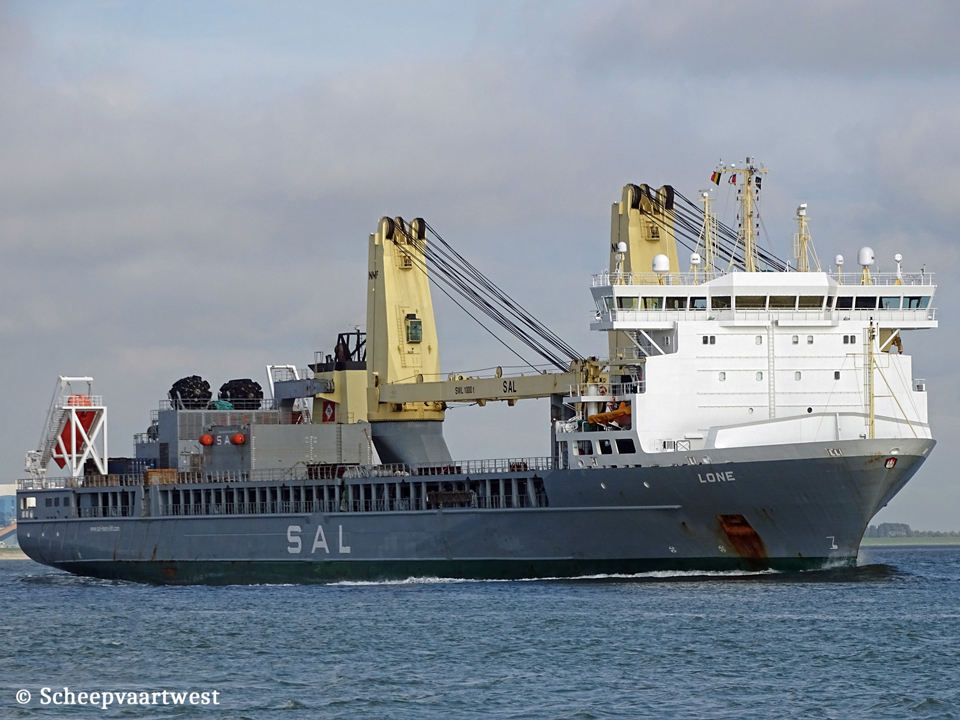

LONE |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Equipped with Kongsberg Dynamic Positioning II System |
|
IMO-number |
9458913 |
|
Call sign |
V2GL6 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
15.199 t Suez: 15.670,10 t |
|
DWT |
Summer: 12.501 t Summer: 7.396 t open top |
|
NT |
4.559 t Suez: 14.894,01 t Panama: 12.925 t |
|
Displacement |
Summer: 23.600 t Summer: 18.500 t open top |
|
Number of 20ft containers |
971 |
|
Length |
160,60 m overall 149,38 m between perpendiculars |
|
Breadth |
27,91 m extreme 27,50 m moulded |
|
Draught |
Summer: 9,01 m Summer: 7,50 m open top |
|
Air draft |
41,09 m (jibs in rest) 66,47 m (jibs upright) |
|
Freeboard |
Summer: 1.809 mm Summer: 3.309 mm open top |
|
Depth |
13,80 m moulded |
|
Speed |
Max: 20,0 knots |
|
Built |
2011 |
|
Keel laid |
20/12/2007 |
|
Launch date |
26/12/2010 |
|
Date of completion |
11/03/2011 |
|
Builder |
J.J. Sietas Kg Schiffswerft Gmbh & Co. Neuenfelder Fährdeich 88 21129 Hamburg Germany |
|
Yard number |
1280 |
|
Hull material |
Steel |
|
Hull type |
Single hull - Double bottom |
|
Main engine |
1x MAN-B&W 9L58/64CD - 9 cylinder combustion engine 12.600 kW / 17.136 bhp at 428 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired 1x Thermal oil heater, exhaust heated |
|
Generators |
3x Mitsubishi S12R-MPTA diesel generatorsets each 1.040 kW |
|
Emergency generator |
1X D2866LXE20 diesel generatorset 200 KW |
|
Bow thruster |
2x Brunvoll FU-80-LCR-2250 - 1.200 kW, forward 1x Brunvoll FU-63-LTC-1750 - 745 kW, aft |
|
Number of holds |
1 107,10 × 17,00 × 13,50 m |
|
Hold capacity |
17.735 m³ with tweendeck Bale capacity: 626.310 ft³ |
|
Number of hatches |
1 |
|
Hatch cover type |
MacGregor hydraulic operated combined folding type and lift and roll type |
|
Deck area |
128,50 x 27,50 m |
|
Free deck space |
3.332 m² |
|
Tank capacities |
Ballast water: 10.446 m³ Gas oil: 247 m³ HFO: 1.686 m³ Fresh water: 261 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
2x NMF deck cranes - SWL 1.000 t each Combinable up to 2000 t SWL Auxiliary hoist 2x 60 t; sling hoist 2x 10 t, auxiliary hoist proved for man riding |
|
Manager |
SAL Ship Management UG (haftungsbeschränkt) & Co. KG |
|
Operator |
SAL Heavy Lift GmbH Brooktorkai 20 20457 Hamburg Germany |
|
Registered owner |
SAL - Shipping UG (haftungsbeschränkt) & Co. KG MS "LONE" |
|
Group |
Harren & Partner Hermann-Hollerith-Straße 10 28355 Bremen Germany |
|
Latest data adjustment |
17 January 2019 |
