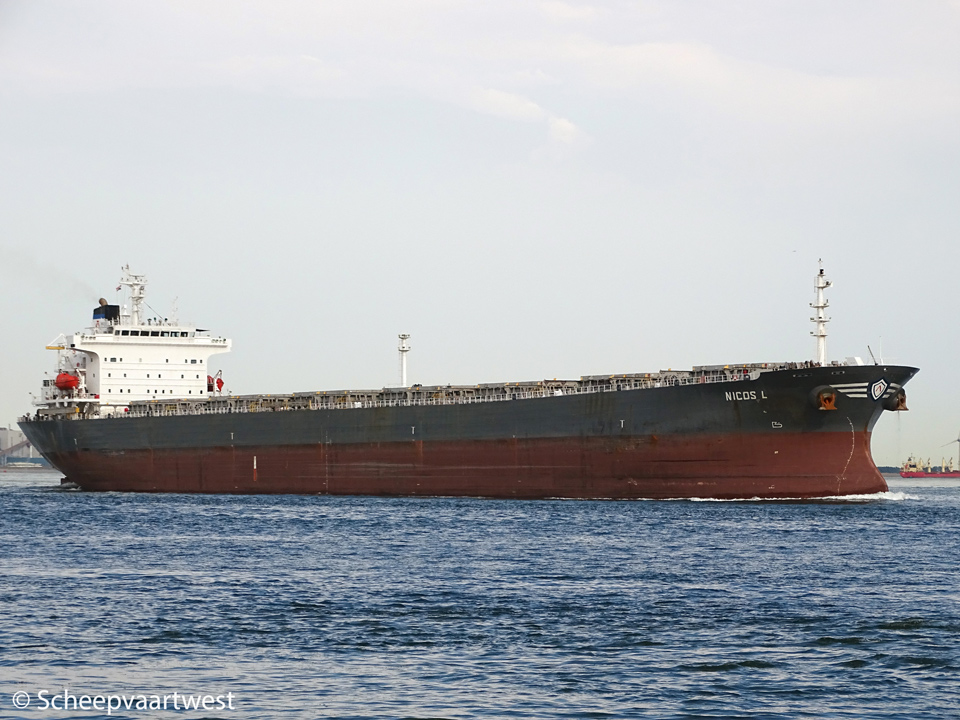

Nicos L 01

Westerschelde 27 July 2018



Name

NICOS L

Type

Bulk carrier

IMO-number

9216468

Call sign

SVAT

Flag

Greece

Port of registry

Piraeus

GT

39.958 t registered

Suez: 41.506 t

DWT

Summer: 73.201 t

NT

25.899 t registered

Panama: 33.032 t

Suez: 38.114 t

Length

225,00 m overall

217,00 m between perpendiculars

Breadth

32,26 m moulded

Draught

Max: 14,00 m

Freeboard

5.222 mm

Depth

19,20 m moulded

Speed

14,4 knots

Built

2002

Keel laid

15/04/2001

Delivery date

04/04/2002

Builder

Jiangnan Shipyard (Group) Co., Ltd.
Shanghai
China

Yard number

H2265

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

9

Main engine

1x MAN-B&W 5S60MC MK6 - 5 cylinder 600 x 2.292 mm combustion engine 10.197,82 kW at 108,0 rpm

Manufacturer: Shangchuan Diesel Co.

Propellers

1

Boilers

1x Auxiliary water tube boiler - 9,0 bar

1x Waste heat boiler - 9,0 bar

Manufacturer: Aalborg Industries

Generators

3x Main diesel generatorsets each 600 kW

Number of holds

7

Cargo hold capacity

Grain: 90.873 m³

Bale: 86.173 m³

Number of hatches

7

Number of tanks

Ballast: 29

Fuel oil: 12

Lubricating oil: 8

Diesel oil: 4

Fresh water: 3

Chain: 2

Sludge: 1

Potable water: 1

Waste water: 1

Slop: 1

Tank capacities 100%

Freshwater: 382 m³

Fuel oil: 2525 m³

Tank ballast: 32.869 m³

Lifting equipment

1x Engine room crane - SWL 5,0 t

1x Provision crane - SWL 4,0 t

1x Bunker hose handling davit port - SWL 1,6 t

1x Bunker hose handling davit starboard - SWL 1,6 t

Manager

Vrontados SA
Akti Miaouli 11
Pireas 185 35
Greece

Registered owner

Seapearl Marine S.A.
Greece

Latest data adjustment

02 February 2019
