Antwerpen 07 May 2019 |
|
Name |

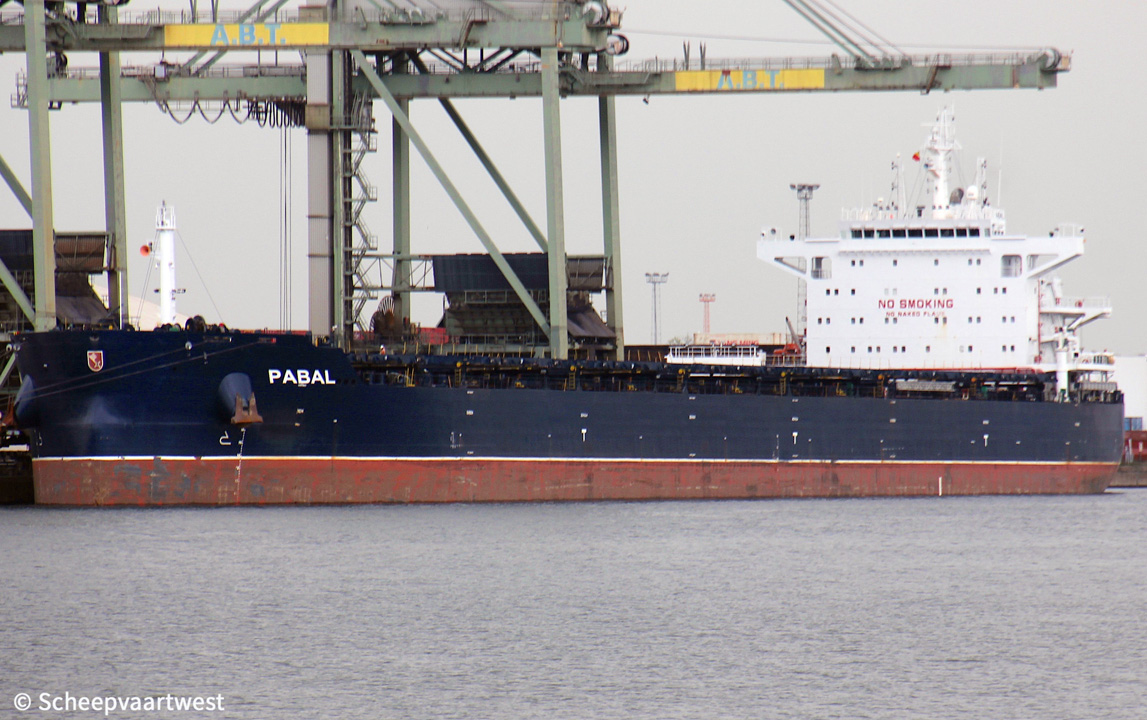

PABAL |
|
Type |
Gearless bulk carrier |
|
IMO-number |
9614842 |
|
Call sign |
V2FX9 |
|
Flag |
Antigua and Barbuda |
|
Port of registry |
St. John’s |
|
GT |
41.213 t |
|
DWT |
Summer: 76.118t |
|
NT |
25.762 t |
|
Length |
224,98 m overall 221,50 m between perpendiculars |
|
Breadth |
32,30 m extreme 32,26 m moulded |
|
Draught |
Max: 14,11 m |
|
Depth |
19,50 m |
|
Speed |
14,25 knots |
|
Built |
2012 |
|
Keel laid |
20/12/2011 |
|
Launch date |
09/07/2012 |
|
Date of completion |
08/10/2012 |
|
Builder |
Taizhou Kouan Shipbuilding Co., Ltd. |
|
Yard number |
TK0701 |
|
Hull material |
Steel |
|
Main engine |
1x MAN/STX 5S60MC-C8.1 - 2 stroke 5 cylinder combustion engine 9.660 kW / 13.137 bhp Manufacturer: STX Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Shaft generator |
1x 640 kVA / 512 kW |
|
Generators |
2x MAN 5L23/30H main diesel generatorsets total 2.250 kVA |
|
Emergency generator |
1x John Deere 6068 HF 275 diesel generatorset 99 kW |
|
Number of holds |
7 |
|
Cargo hold capacity |
90.538 m³ |
|
Max permitted load |
Tanktop: 18.0 t/m² Hatch covers: 3,5 t/m² |
|
Tank capacities |
IFO: 2.592,9 m³ MGO: 177.,2 m³ Ballast: 33.599,2 m³ |
|
Anchor equipment |
Length: 659,80 m Diameter: 78 mm |
|
Crew size |
27 |
|
Manager |
HPS - Harren & Partner Schiffahrt Shipping & Management GmbH & Co. KG |
|
Registered owner |
Harren & Partner Schiffahrts GmbH & Co. KG MS “PABAL“ |
|
Latest data adjustment |
22 May 2019 |
