Westerschelde 22 July 2018 |
|
Name |

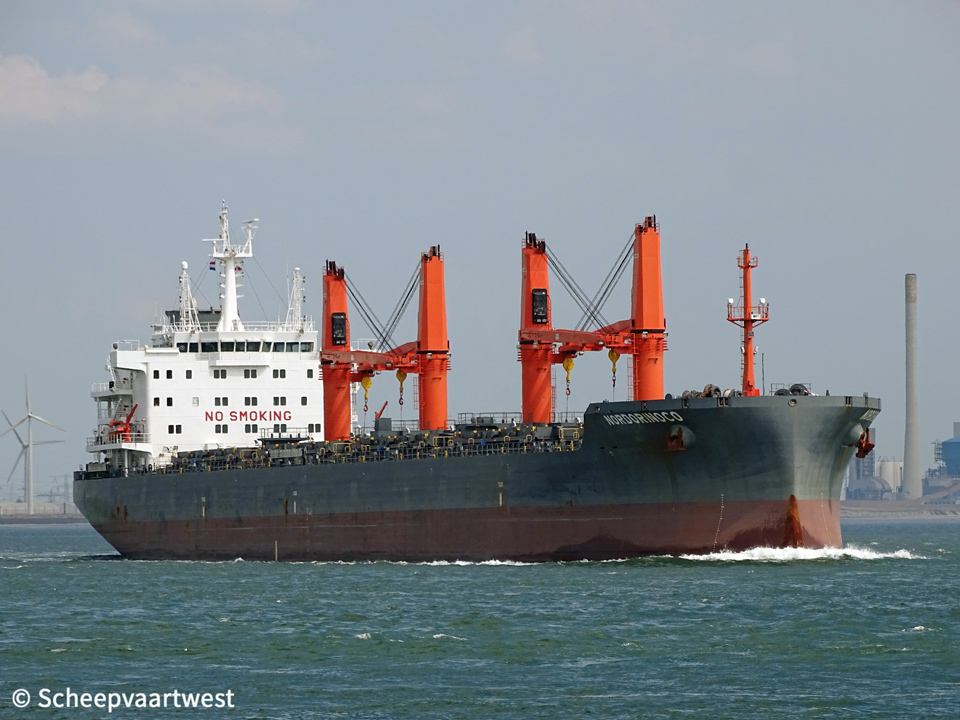

NORDORINOCO |
|
Type |
Bulk carrier - handysize - Strengthened for heavy cargo loading "Emerald 38 Mark II" handysize bulker |
|
IMO-number |
9741712 |
|
Call sign |
CQIR7 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2015 - 2017 Malta, Valletta |
|
GT |
23.974 t |
|
DWT |
37.964 t |
|
NT |
12.927 t |
|
Length |
189,99 m overall |
|
Breadth |
28,30 m |
|
Draught |
10,50 m |
|
Moulded L x B x D |
187,00 x 28,30 x 15,00 m |
|
Registered L x B x D |
187,00 x 28,30 x 15,00 m |
|
Freeboard |
4.524 mm |
|
Depth |
15,00 m |
|
Speed |
14,8 knots |
|
Built |
2015 |
|
Keel laid |
16/03/2015 |
|
Launch date |
10/06/2015 |
|
Date of completion |
23/09/2015 |
|
Builder |
Zhejiang Ouhua Shipbuilding Co. Ltd. |
|
Yard number |
680 |
|
Hull material |
Steel |
|
Main engine |
1x MAN 5G50 ME-B - 2 stroke single acting 5 cylinder 500 x 2.500 mm combustion engine 6.575 kW / 11.696 bhp at 95,8 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 470 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 1,85 t/h Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 635 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 45.971 m³ Grain: 47.564,3 m³ |
|
Tank capacities |
Fuel oil: 1.394,2 m³ Fresh water: 311,8 m³ |
|
Cargo gear |
4x MacGregor electro-hydraulic deck cranes - SWL 30,0 t each |
|
Manager |
Reederei Nord GmbH |
|
Registered owner |
MS "NORDCOLORADO" Schifffahrtsgesellschaft mbH & Co. KG |
|
Latest data adjustment |
09 March 2019 |
