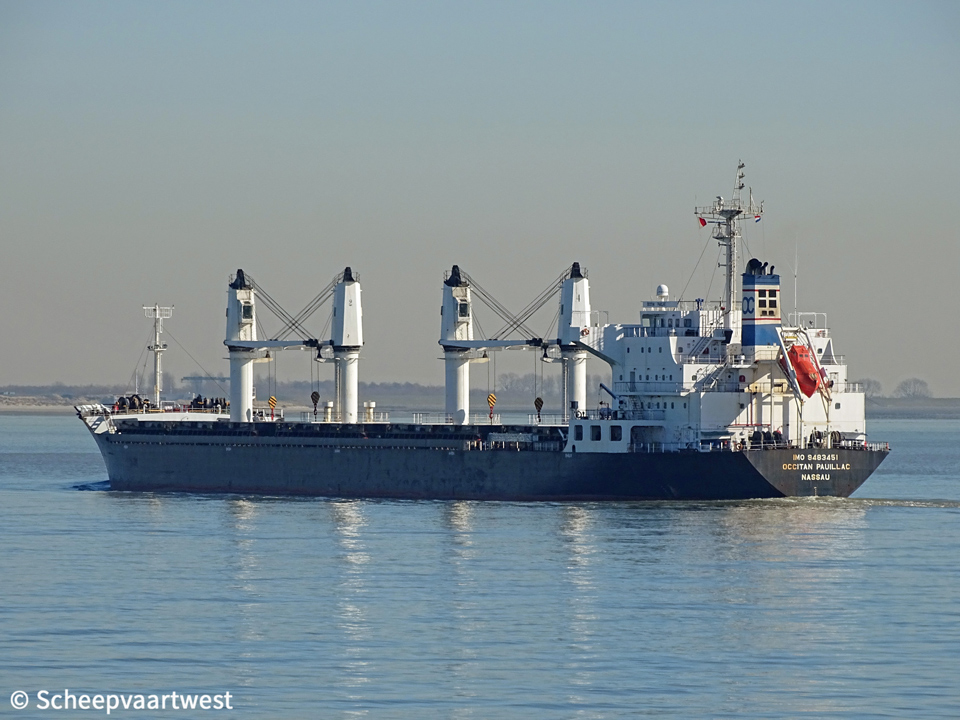

Occitan Pauillac 01

Westerschelde 25 February 2019



Name

OCCITAN PAUILLAC

Previous names

04/2008 - 07/2009 Western Wave

07/2009 Franziska Bolten

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9483451

Call sign

C6DH8

Flag

Bahamas

Port of registry

Nassau

Previous flags

2008 - 2017 Liberia, Monrovia - Call sign: A8PN4

GT

18.493 t registered

DWT

Summer: 29.231 t

NT

10.335 t registered

Length

169,99 m overall

Breadth

27,00 m moulded

Draught

Max: 10,6 m

Moulded L x B x D

161,01 x 27,00 x 14,20 m

Registered L x B x D

170,00 x 27,00 x 14,20 m

Freeboard

Summer: 4.184 mm

Depth

14,20 m moulded

Speed

Service: 13,9 knots

Max: 15,8 knots

Built

2008

Keel laid

04/06/2007

Launch date

27/12/2007

Date of completion

21/04/2008

Builder

Nantong Nikka Shipbuilding Co., Ltd.
China

Yard number

NK-001

Hull material

Steel

Main engine

1x Hitachi/MAN B&W 5S50 MC-Mk6 - 2 stroke 5 cylinder 500x 1.910 mm combustion engine 5.730 kW at 104,0 rpm

Manufacturer: Hitachi Zosen Diesel & Engineering Co., Ltd.

Propeller shaft

1x Oil lubrications shaft without monitoring device

Diameter: 595 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,06 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generatorsets total 1.766 kVA

Cargo hold capacity

Bale: 39.296 m³

Grain: 39.988 m³

Tank capacities

Fuel oil: 1.590 m³

Freshwater: 335 m³

Cargo gear

4x Deck cranes

Manager

Synergy Maritime Private Limited
House Complex Market, Karampura Industrial Area
Karam Pura, New Delhi
Delhi 110015
India

Registered owner

Kerin Ltd.

Latest data adjustment

28 March 2019
