Name
|

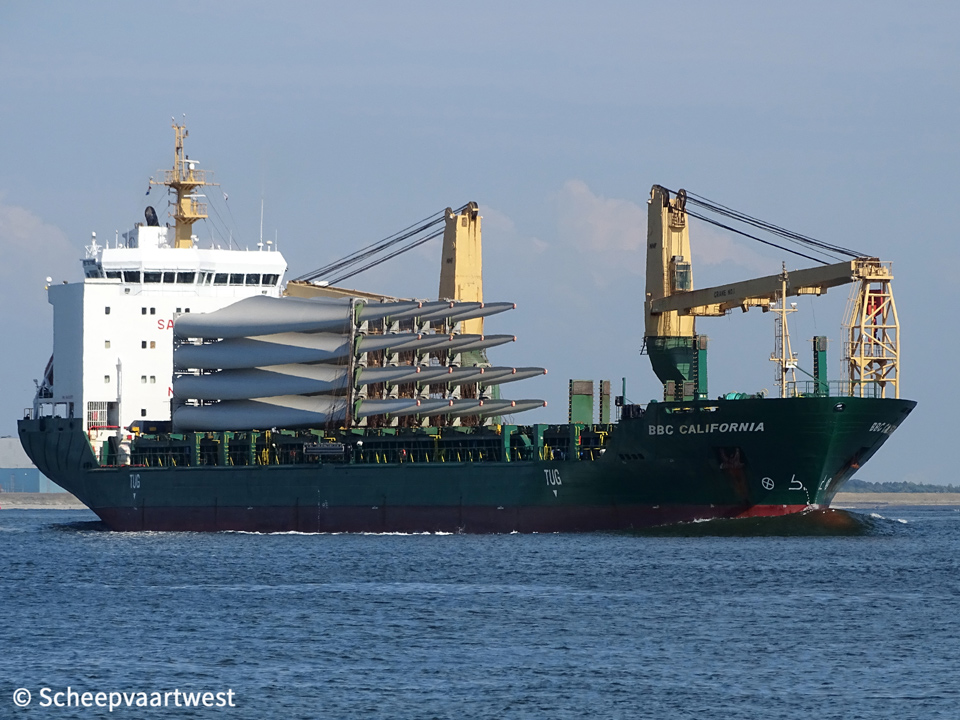

BBC CALIFORNIA
|
|
Previous names
|
2008 - 04/2011 Beluga Fraternity
04/2011 - 06/2011 Fraternity
|
|
Type
|
Multi-purpose dry cargo ship - Strengthened for heavy cargoes - Equipped for the carriage of containers - Equipped for the carriage of dangerous goods - Heavylifter
|
|
IMO-number
|
9402055
|
|
Call sign
|
V2DD6
|
|
Flag
|
Antigua & Barbuda
|
|
Port of registry
|
St. John’s
|
|
GT
|
9.611 t
|
|
DWT
|
Summer: 12.672,4 t
|
|
NT
|
4.260 t
|
|
Number of 20ft containers
|
In hold: 334
On deck: 331
Total: 665
|
|
Number of 40ft containers
|
In hold: 158 + 22 TEU
On deck: 136 + 59 TEU
Total: 294 + 81 TEU
|
|
Container capacity 14t
|
528
|
|
Reefer capacity
|
50 reefer plus on deck
|
|
Length
|
138,50 m overall
130,71 m between perpendiculars
|
|
Breadth
|
21,34 m extreme
20,99 m moulded
|
|
Draught
|
Max: 7,98 m
|
|
Height above keel
|
40,09 m
|
|
Freeboard
|
Summer: 3.018 mm
|
|
Depth
|
11,00 m to main deck
|
|
Speed
|
Max: 15,0 knots
Service: 13,5 knots
|
|
Built
|
2008
|
|
Keel laid
|
28/04/2007
|
|
Launch date
|
18/08/2007
|
|
Date of completion
|
28/02/2008
|
|
Builder
|
CSC Jiangdong Shipyard
Wuhu
China
|
|
Yard number
|
JD12000-8
|
|
Hull material
|
Steel
|
|
Hull type
|
Double skin
|
|
Main engine
|
1x MaK 6M43C - 4 stroke single acting 6 cylinder 430 x 610 mm diesel engine 5.400 kW / 7.342 hp at 500 rpm
Manufacturer: Caterpillar Motoren GmbH & Co. KG – Germany
|
|
Propellers
|
1x Controllable pitch propeller
|
|
Boilers
|
1x Thermal Oil Installation FTH
Pressure: 13,0 kg/cm²
Heating surface: 39 m²
2x Economizer EGH
Heating surface: 39 m²
Build: 04/2007
Manufacturer: Aalborg Industries BV; Rotterdam - The Netherlands
|
|
Shaft generator
|
1x 875 kVA
|
|
Generators
|
3x MAN D2840LE301 - 4 stroke 10 cylinder diesel engine 450 kW coupled with generator 395 kW 400/230 Volt 50 Hz each
|
|
Emergency generator
|
1x MAN D 2866 E diesel generatorset 99 kW
|
|
Bow thruster
|
1x 500 kW/ 680 hp
|
|
Hatch and hold
|
Number of holds: 3
Hold form: Hold 2:double skinned/boxshaped;
Hold 1+3: narrow stepwise in container dimensions
Hatchcover:
Hold 1: 19,30 m (18,75 m opening) x 15,42 m (15,00 m opening)
Hold 2: 42,33 m (42,00 m opening) x 17,98 m (17,50 m opening)
Hold 3: 26,00 m (25,50 m opening) x 17,98 m (17,50 m opening)
Tweendeck
Hold 1: 18,75 m x 15,01 m
Hold 2: 42,00 m x 17,50 m,
Hold 3: 25,50 m x 17,50 m
Lower hold:
Hold 1: 18,75 m x 15,01 m narrows to 10,06 m over 6,00 m
Hold 2: 42,00 m x 17,50 m
Hold 3: 25,50 m x 17,50 m narrows to 14,40 m over 5,25 m
|
|
Heights
|
Tanktop - Hatchcover Hold 1: 10,53 m
Tanktop – Hatchcover Hold 2: 11,18 m
Tanktop - Hatchcover Hold 3: 10,77 m
Tanktop - Tweendeck (bottom edge) Hold 1: 5,43 m
Tanktop - Tweendeck (bottom edge) Hold 2: 3,25 m /6,00 m /7,45 m (adjustable)
Tanktop - Tweendeck (bottom edge) Hold 3: 5,59 m
Tweendeck (top edge) Hatchcover Hold 1: 4,50 Tweendeck (top edge) Hatchcover Hold 2: 2,93 m /4,38 m /7,13 m
|
|
Type of hatch covers
|
Tweendeck (top edge) Hatchcover Hold 3: 4,38 m
Hydr. folding type Type of tweendeck: Pontoons can be used as vertical bulkheads in holds
|
|
Cargo hold capacity
|
Hold 1: 2.701 m³
Hold 2: 8.362 m³
Hold 3: 4.890 m³
Total: 15.952 m³ / 563.340 ft³
|
|
Hold ventilation
|
Hold 1: 6 fold
Hold 2+3: 12 fold air change per hour
|
|
Floor space
|
Under deck: 2.810 m² / 30.247 ft²
On deck: 1.480 m² / 15.931 ft²
|
|
Max permitted loads
|
Tanktop: 16,0 t/m²
2,50 t on tweendeck in hold 1 and hold 2 (upper position)
4,00 t on tweendeck in hold 2 (middle and lower position) and hold 3
1,75 t on hatchcovers
|
|
Tank capacities
|
IFO: 948 m³
MGO: 150 m³
Water ballast: 5.000 m³
Fresh water: 147 m³
|
|
Anchor equipment
|
Length: 545,40 m
Diameter: 52 mm
|
|
Cargo gear
|
2x NMF cranes situated portside - SWL 180 t each
360 t combined
|
|
Manager
|
Liberty Blue Shipmanagement GmbH & Co. Kg
Harderwykensteg 1
26789 Leer
Germany
|
|
Operator
|
BBC Chartering
|
|
Registered owner
|
MS "FRATERNITY" Schiffahrts UG (haftungsbeschränkt) & Co. KG
|
|
Latest data adjustment
|
23 June 2019
|
