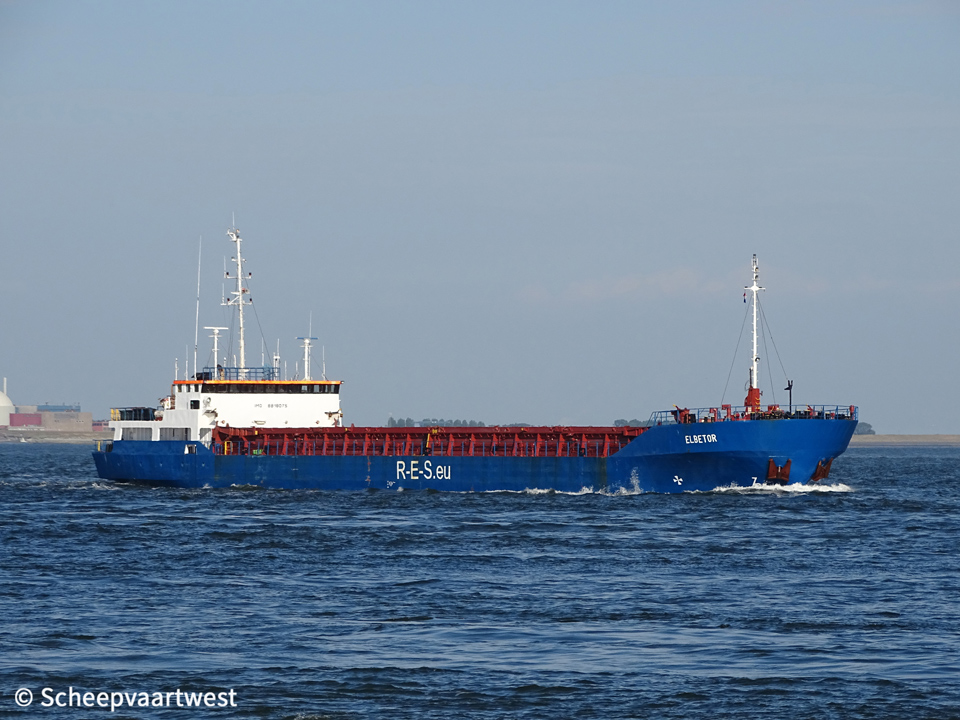

Westerschelde 13 July 2018 |
|
Name |
ELBETOR |
|
Previous names |
1990 - 10/1993 Port Faro 10/1993 - 01/1995 Balfrum 01/1995 - 06/2005 Lady Clara |
|
Type |
General cargo ship - Strengthened for heavy cargo - Single decker |
|
IMO-number |
8818075 |
|
Call sign |
V2OQ9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
1990 - 1993 Republic of Panama - Panama City 1993 - 1995 Cyprus, Limassol |
|
GT |
2.351 t |
|
DWT |
Summer: 3.398 t incl. bulkheads |
|
DWCC |
Summer/winter: 3.200 t |
|
NT |
1.149 t |
|
Displacement |
4.572 t |
|
Light ship |
1.140 t + 32 t bulkheads |
|
Number 20 ft containers |
In hold: 117 On deck 36 Total: 153 |
|
Length |
87,00 m overall 82,73 m between perpendiculars |
|
Breadth |
13,00 m extreme |
|
Draught |
Max: 5,08 m |
|
Air draft |
21,50 m full ballast |
|
Depth |
7,10 m moulded |
|
Speed |
Ballast: 10,5 knots Full load: 9,5 knots Max: 11,0 knots |
|
Built |
1990 |
|
Keel laid |
30/06/1989 |
|
Launch date |
01/11/1989 |
|
Date of completion |
22/02/1990 |
|
Builder |
ENVC - Estaleiros Navais De Viana Do Castelo, S.A. Portugal |
|
Yard number |
153 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2x Movable units (6 bulkhead position are possible) |
|
Main engine |
1x MAN-B&W 8L23/30DKV - 8 cylinder combustion engine 1.080 kW / 1.470 bhp |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 215 kW |
|
Generators |
2x Cummins 6CT8.3G main diesel generatorsets each 120 kW |
|
Emergency generator |
1x Cummins 6BT5.9G1 diesel generatorset 72 kW |
|
Bow thruster |
150 hp |
|
Number of holds |
1x Box type 57,40 x 10,20 x 8,00 m – Strongbeam fitted |
|
Hold ventilation |
Electrical / Mechanical |
|
Cargo hold capacity |
Grain: 4.650 m³ / 164.213 ft³ Bale: 4.377 m³ / 154.593 ft³ |
|
Deck |
57,30 x 10,200 |
|
Number of hatches |
1 57,70 x 10, 40 m |
|
Hatch cover type |
Kvaerner type |
|
Max permitted loads |
Tanktop: 10,0 t/m² Deck: 1,5 t/m² |
|
Tank capacities |
Ballast: 1.693,7 m³ bunker: 143,64 m³ Fresh water: 28,93 m³ Lub oil: 4,72 m³ |
|
Manager |
Erwin Strahlmann Gmbh & Co., KG Schleusenstraße 10 25541 Brunsbüttel Germany |
|
Operator |
R.E.S. Chartering GmbH Fuhlenywiete 10 20355 Hamburg Germany |
|
Registered owner |
Roland Second Maritime GmbH & Co., KG |
|
Previous names & owners |
1970 Port Faro - Republic of Panama - Portline Europen S.A. 1993 Baltrum - Cvyprus,Limassol- Baltrum Shipping Co. Ltd. 1995 Lady Clara - Antigua & Barbuda, St. John's - Lady Clara Shipping Co. Ltd. |
|
Renamed |
03/2020 Gulf Wind Antigua and Barbuda, St. John’s - Call sign: V2OQ9 Owner: Gulf Royal Ltd. Manager: Pasifik Lojistik Grubu ve Denizcilik AS - Turkey |
|
Latest data adjustment |
18 June 2020 |
