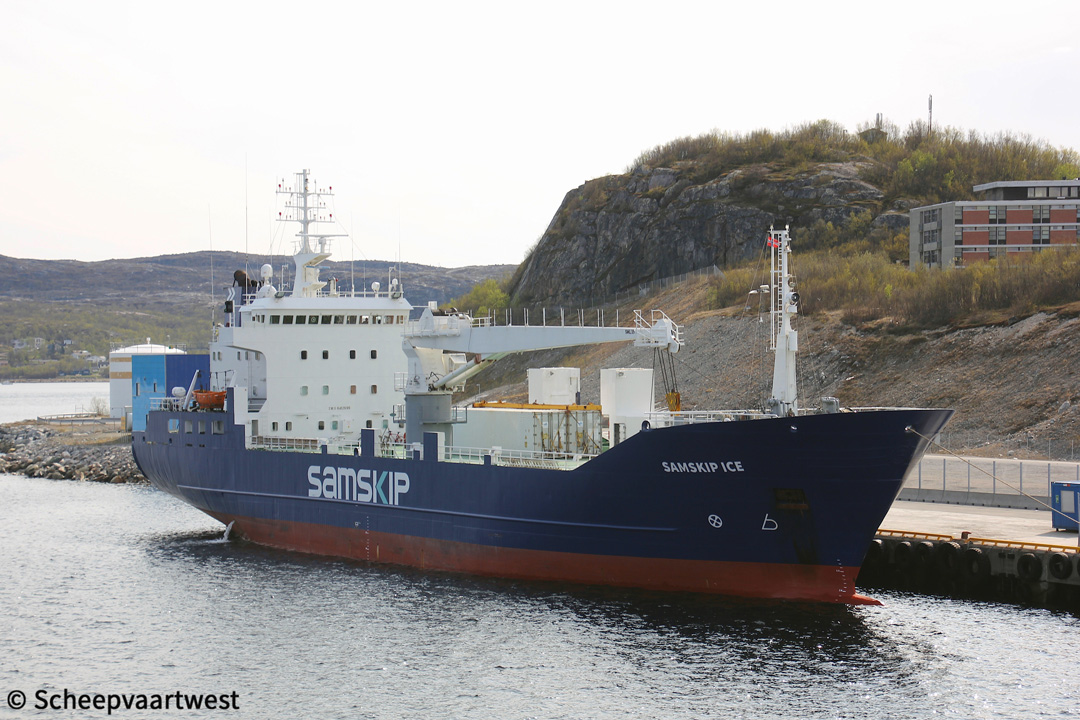

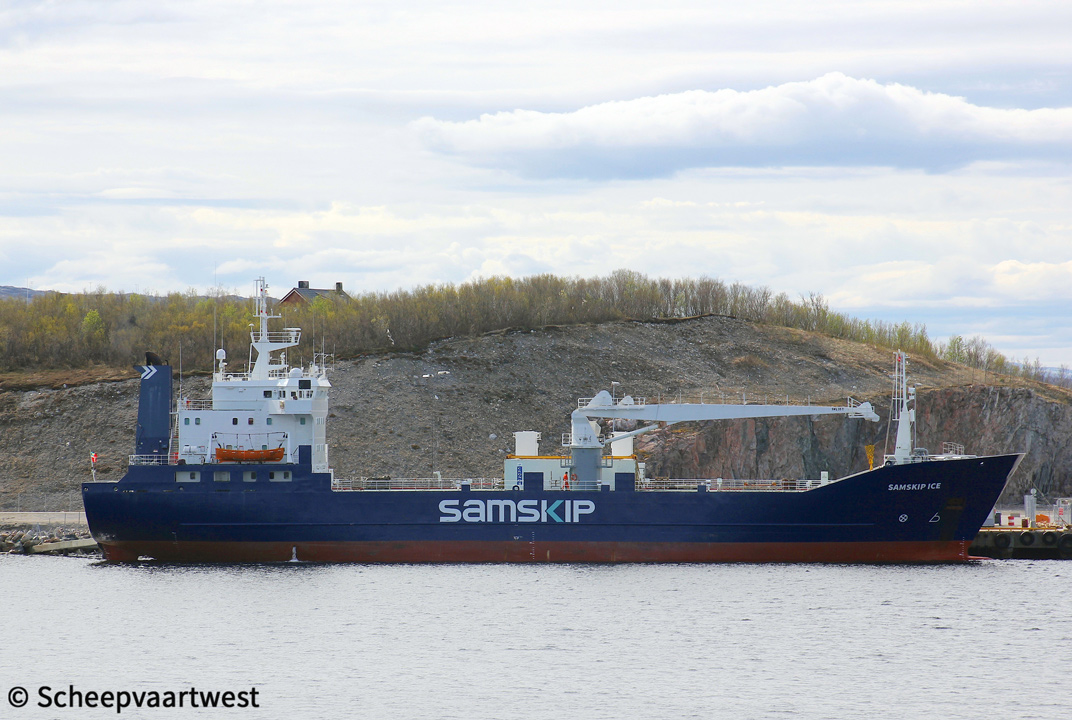

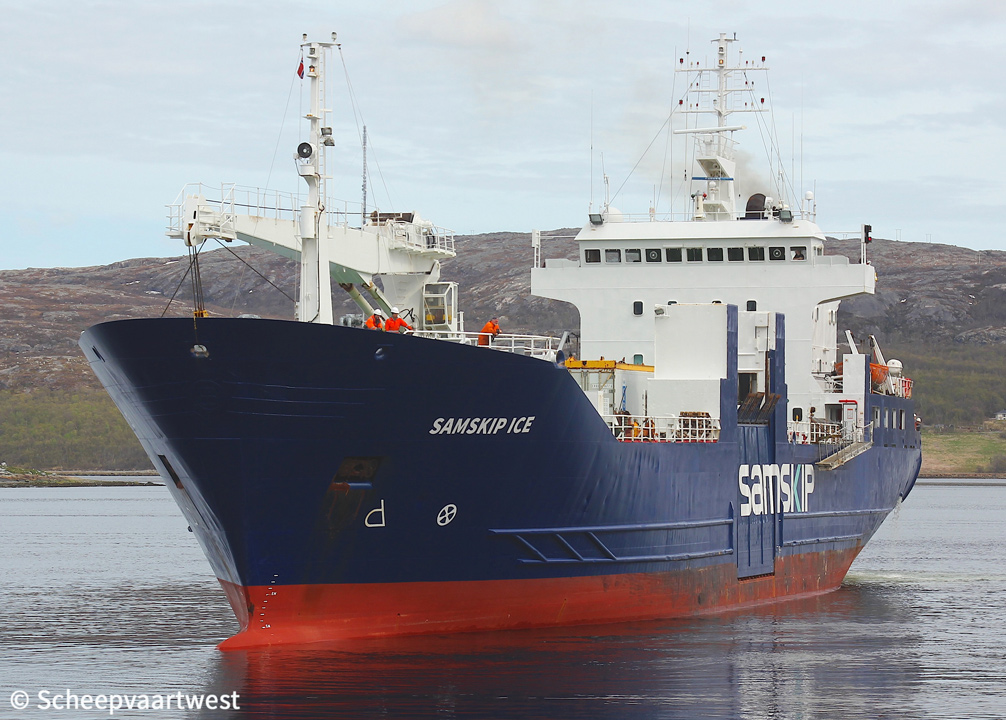

Kirkenes, Norway 04 June 2019 |
 |
 |
|
| Kirkenes 04/06/19 | Kirkenes 04/06/19 |
|
Name |
SAMSKIP ICE |
|
Previous names |
1985 - 01/1988 Svanur 01/1988 - 12/1993 Tinganres |
|
Type |
Refrigerated cargo ship |
|
IMO-number |
8412699 |
|
Call sign |
C6SO4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
3.399 t |
|
DWT |
Summer: 2.900 t |
|
NT |
2.080 t |
|
Number of 20ft containers |
70 |
|
Reefer capacity |
20 |
|
Length |
85,93 m overall 77,80 m between perpendiculars |
|
Breadth |
16,02 m extreme |
|
Draught |
Max: 6,45 m |
|
Depth |
10,70 m |
|
Speed |
Max: 15,0 knots Service: 12,7 knots |
|
Built |
1985 |
|
Keel laid |
28/02/1985 |
|
Launch date |
11/05/1985 |
|
Date of completion |
03/12/1985 |
|
Hull yard |
FEAB-Marstrandsverken AB |
|
Contracted builder |
Fosen Mekaniske Verksteder AS |
|
Yard number |
37 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä Vasa 8R32DF - 4 stroke 8 cylinder 320 x 350 mm combustion engine 3.003 kW / 4.080 bhp at 750 rpm Manufacturer: Wärtsilä Finland Oy |
|
Propellers |
1x Controllable pitch propeller Manufacturer: Ulstein Propeller AS |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (economiser) AQ-2 - 9,1 bar 1x Auxiliary boiler, oil/gas fired AQ-12 - 9,1 bar Manufacturer: Alfa Laval Aalborg A/S |
|
Shaft generator |
1x 576 kW |
|
Generators |
3x Daimler Benz OM 424 A main diesel generatorsets each 262 kW |
|
Bow thruster |
500 bhp |
|
Number of holds |
6 |
|
Cargo hold capacity |
4.787 m³ in 6 freezer rooms at -25°C |
|
Number of hatches |
2 Hatch 1: 12,60 x 7,80 m Hatch 2: 12,60 x 7,80 m |
|
Pallet lift |
2x Each 5,0 t |
|
Tank capacities |
Ballast: 1.032,97 m³ |
|
Cargo gear |
1x Deck crane -33,0 t |
|
Crew size |
16 |
|
Manager |
Nav-Tech B.V. |
|
Operator |
Samskip |
|
Latest data adjustment |
25 August 2019 |
