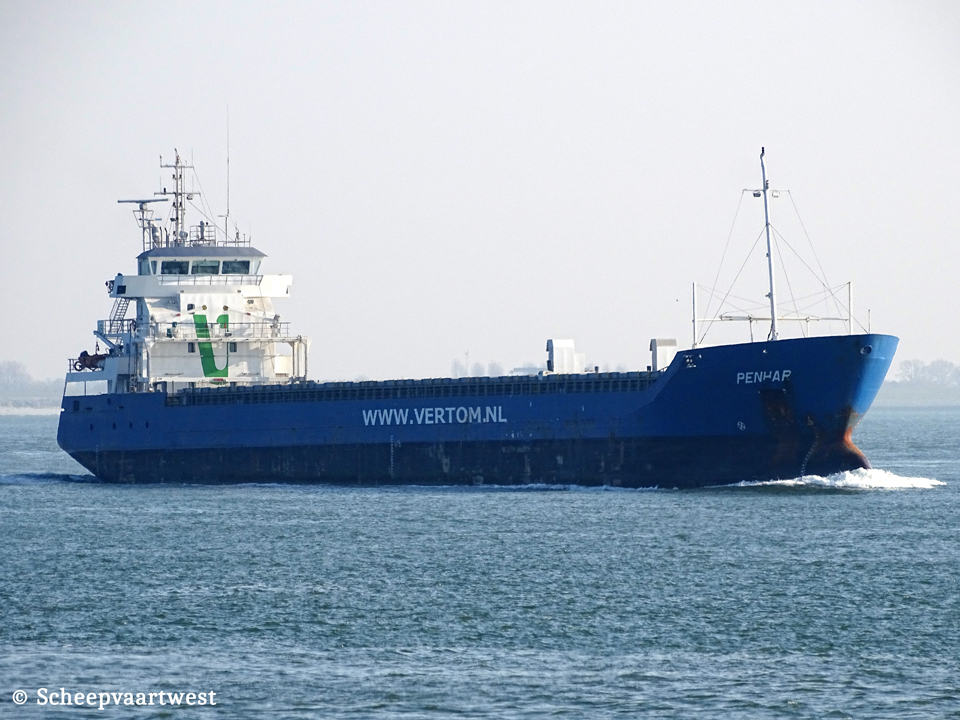

Westerschelde 26 June 2015 |
 |
|

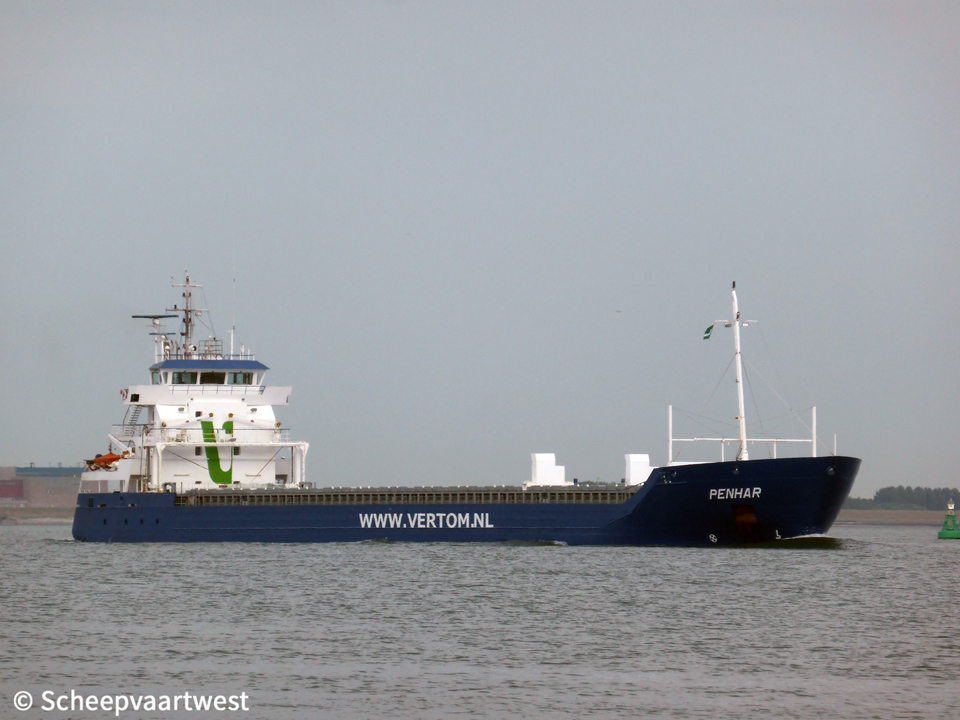

| Westerschelde 21/11/18 | |
|
Name |
PENHAR |
|
Previous names |
2010 - 2015 CFL Penhar |
|
Type |
General Cargo, Multi Purpose - Jumbo 6500 type Bix sid |
|
IMO-number |
9534365 |
|
Call sign |
PBXQ |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
On deck: 112 in hold: 144 Total: 256 |
|
GT |
4.106 t |
|
DWT |
Summer: 6.517 t |
|
DWCC |
6.210 t |
|
NT |
1.747 t |
|
Length |
118,90 m overall 111,69 m between perpendiculars |
|
Breadth |
13,35 m extreme |
|
Draught |
6,08 m |
|
Air draft |
24,30 m in ballast |
|
Freeboard |
3.030 mm |
|
Depth |
9,10 m |
|
Speed |
Max: 17,0 knots Service: 12,0 knots |
|
Built |
2010 |
|
Launch date |
06/03/2010 |
|
Date of completion |
23/04/2010 |
|
Builder |
Scheepswerf Peters B.V. Kampen The Netherlands |
|
Yard number |
820 |
|
Hull material |
Steel |
|
Watertight compartments |
10 |
|
Movable bulkheads |
1x In hold 2 - 8 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.980 kW / 2.690 hp at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Electrical propulsion gen. |
1x 348 kW - 400 Volt |
|
Propelling system |
1x Screw propeller controllable pitch at 172 rpm |
|
Generators |
1x Diesel generatorset 81 kVA - 65 kW - 102 hp 2x Diesel generatorsets each 213 kVA - 170 kW - 247 hp |
|
Number of holds |
2 Hold 1: 18,70 x 11,20 x 9,00 m height Hold 2: 59,90 x 11,20 x 9,00 m height |
|
Cargo hold capacity |
Hold 1: 66.559 ft³ Hold 2: 213.202 ft³ Bale/Grain: 279.761 ft³ |
|
Number of hatches |
2 Hatch 1: 18,70 x 11,20 m Hatch 2: 59,90 x 11,20 m |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
IFO380: 333 m³ Gas oil: 34 m³ Ballast: 2.390 m³ |
|
Manager |
Vertom-Bojen Bereederungs GmbH |
|
Previous managers |
04/2010 - 01/2015 Canada Feeder Lines B.V., Groningen - The Netherlands 01/2015 -04/2015 CFL Shipmanagement B.V., Groningen - The Netherlands 04/2015 06/2015 iegfried Bojen Schiffahrts K.G., Emden - German Federal Republic |
|
Operator |
Vertom Scheepvaart en Handelmaatschappij BV Oever 7 3161 GR Rhoon The Netherlands |
|
Registered owner |
Vertom Ucs MV Penhar BV |
|
Previous names & owners |
04/2010 - 01/2015 CFL Penhar - B.V. Scheepvaartonderneming CFL Penhar, Groningen - The Netherlands 01/2015 - 04/2015 CFL Penhar - m.v. CFL Penhar, Groningen- The Netherlands 04/2015 - 06/2015 Penhar - Siegfried Bojen Schiffahrts K.G., Emden - German Federal Republic |
|
Latest data adjustment |
01 January 2023 |
