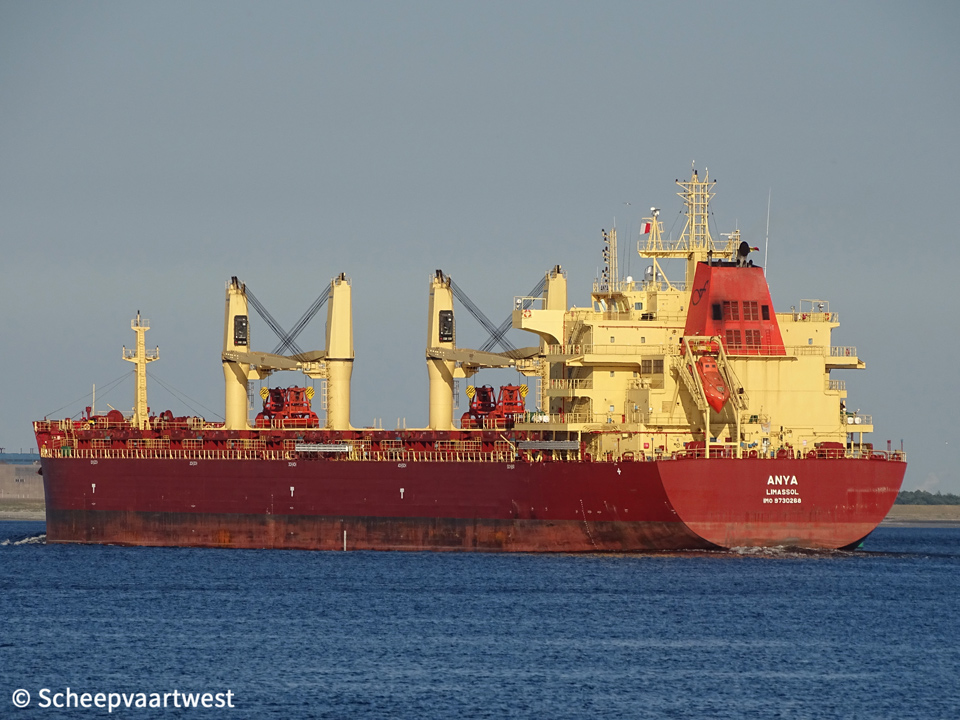

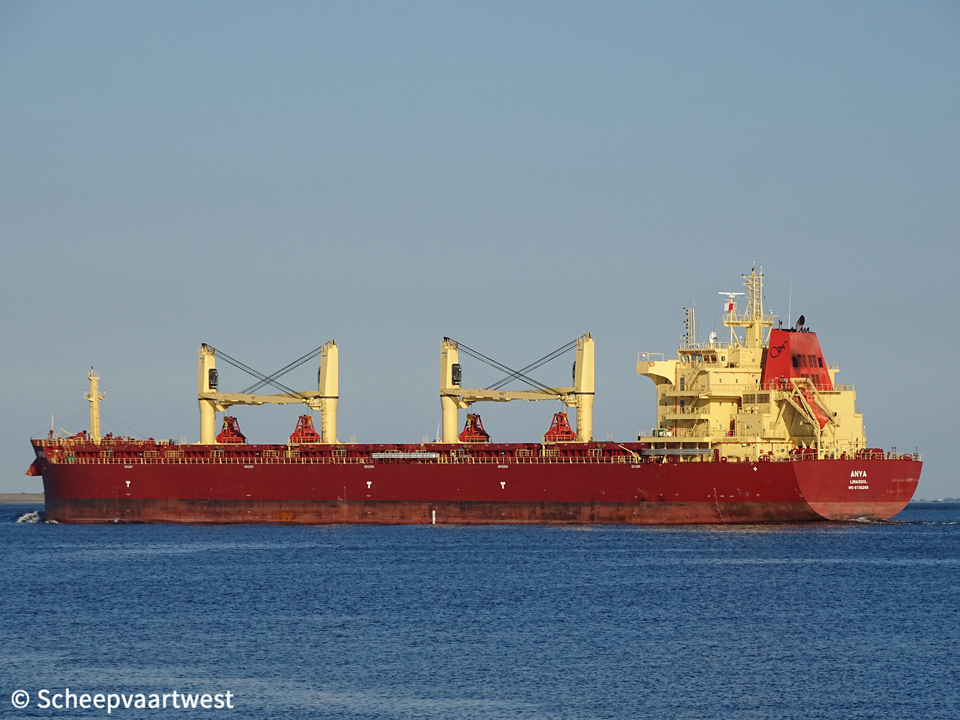

Westerschelde 08 July 2018 |
 |
| Westerschelde 08/07/18 |
|
Name |
ANYA |
|
Type |
Geared Supramax bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9730268 |
|
Call sign |
5BKZ4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
34.206 t registered Suez: 35.586,14 t |
|
DWT |
Summer: 58.593,1 t Winter: 56.983,1 t |
|
NT |
19.510 t Panama: 28.339 t Suez: 31.098,7 t |
|
Displacement |
Summer: 69.678,1 t Winter: 68.068,1 t |
|
Lightship |
11.070,50 t |
|
Length |
189,90 m overall 186,50 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 13,10 mm Winter: 12,83 m |
|
Keel to top mast |
47,90 m |
|
Air draft |
42,10 m normal ballast |
|
Freeboard |
5.424 mm |
|
Depth |
18,50 m moulded |
|
Speed |
14,0 knots |
|
Built |
2017 |
|
Keel laid |
11/12/2015 |
|
Launch date |
29/04/2016 |
|
Delivery date |
23/02/2017 |
|
Builder |
New Times Shipbuilding Co., Ltd. |
|
Yard number |
0105807 |
|
Hull material |
High strength steel |
|
Bulkheads |
Water tight: 6 Gas tight: 1 |
|
Main engine |
1x JAD MAN-5S60ME-C8 - 5 cylinder 600 x 2.400 mm combustion engine 8.050 kW / 10.795 bhp at 89,0 rpm Normal service rating: 8.363 bhp / 6.440 kW at 82,9 rpm Manufacturer: Jiangsu Antai Power Machinery Co., Ltd. |
|
Propellers |
1x Diameter 6.800 mm - 4 blades Manufacturer: Dalian Marine Propeller Co., Ltd. |
|
Boilers |
1x Fired exhaust gas boiler - 7,8 bar Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 650 kW 450 Volt 60 Hz Manufacturer: Zhenjiang China Xiandai Generating Co., Ltd. |
|
Emergency generator |
1x Diesel generatorset 120 kW 450 Volt 60 Hz |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 73.467,5 m³ / 2.594.258 ft³ |
|
Number of hatches |
5 |
|
Hatch cover type |
MacGregor folding type |
|
Tank top strength |
Hold 1,3,5: 22,0 t/m² Hold 2,4: 16,0 t/m² |
|
Number of tanks |
Fuel oil: 12 Ballast: 12 Lubricating oil: 10 Fresh water: 4 Diesel oil: 3 Sludge: 3 Chain: 2 Sea water: 1 Waste water: 1 Sewage: 1 Slop: 1 |
|
Tank capacities 100% |
Diesel oil: 127,8 m³ Freshwater: 805 m³ Fuel oil: 2.071,5 m³ Lube oil: 177,5 m³ Tank ballast: 16.530,5 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Jiangsu Bolin Machinery Manufacture Co., Ltd |
|
Cargo gear |
4x MacGregor cranes - SWL 35,0 t each Manufacturer: CSSC - Nanjing Luzhou Machine Co., Ltd. |
|
Manager |
Lemissoler Navigation Co., Ltd. |
|
Operator |
FrontMarine |
|
Registered owner |
Kaver Shipping Ltd. |
|
Latest data adjustment |
29 July 2019 |
