Westerschelde 31 May 2019 |
 |
| Westerschelde 22/06/18 |
|
Name |

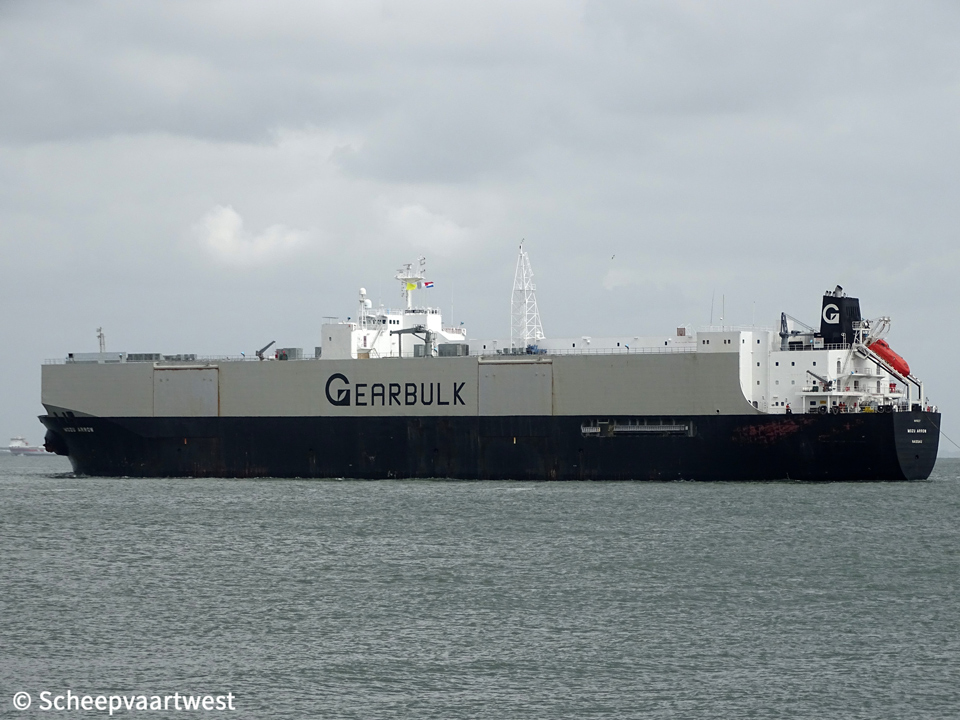

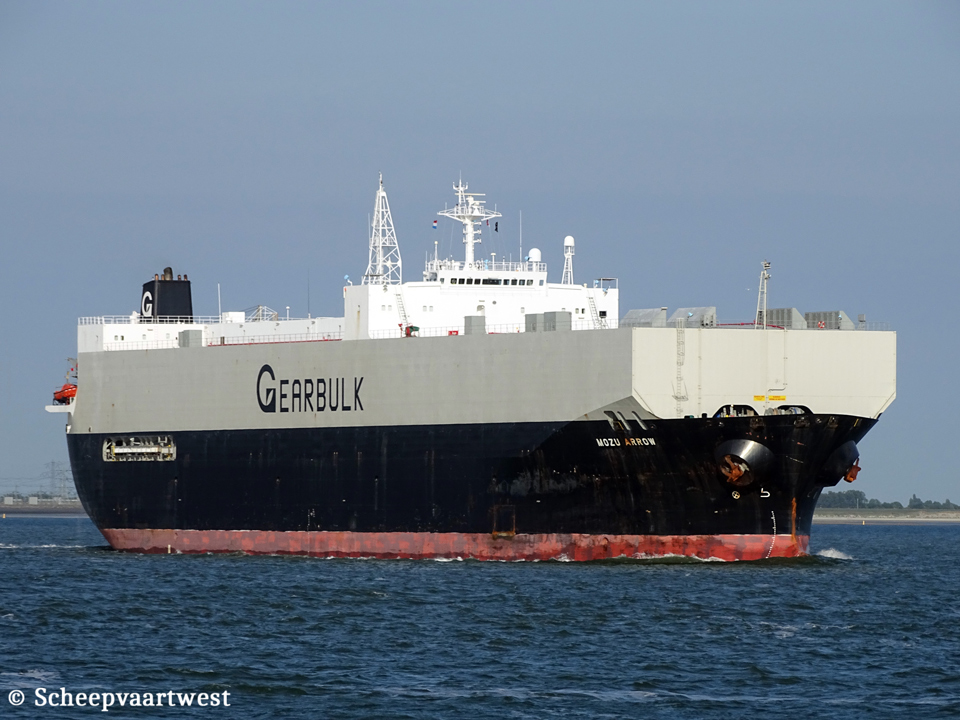

MOZU ARROW |
|
Type |
TEFC - Totally Enclosed Forestry Carrier |
|
IMO-number |
8918227 |
|
Call sign |
C6NI8 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
28.157 t |
|
DWT |
Summer: 42.275 t |
|
NT |
8.841 t |
|
Length |
185,20 m overall 175,00 m between perpendiculars |
|
Breadth |
30,00 m extreme |
|
Draught |
Summer: 12,22 m |
|
Depth |
18,20 m |
|
Speed |
14,0 knots |
|
Built |
1992 |
|
Keel laid |
01/08/1991 |
|
Launch date |
27/11/1991 |
|
Date of completion |
01/03/1992 |
|
Builder |
Mitsui Tamano Engineering & Shipbuilding Tamano Japan |
|
Yard number |
1372 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 5S60MC - 2 stroke single acting 5 cylinder 600 x 2.292 mm combustion engine 9.378 kW / 12.750 hp at 105,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, composite AQ-16 Builder: Aalborg |
|
Generators |
3x BMV KRG6 - 4 stroke 6 cylinder 250 x 300 mm diesel generatorsets Mcr 1.080 kW each 1x Volvo Penta D16C-A MG 1800 main diesel 500 kW generatorset |
|
Emergency generator |
1x Yanmar 6HAL-H diesel generatorset 180 kW |
|
Bow thruster |
1x 2.000 kW |
|
Number of holds |
6 |
|
Cargo capacity |
Bale & grain: 1.658.934 m³ |
|
Tank capacities |
Ballast: 18.313 m³ |
|
Cargo cranes |
2x Gantry cranes - SWL 40,0 each |
|
Person capacity |
30 |
|
Commerical manager |
G2 Ocean AS Grieg-Gaarden, C. Sundtsgate 17 5004 Bergen Norway |
|
ISM manager |
Gearbulk Norway AS Ytrebygdsvegen 215 5258 Blomsterdalen Norway |
|
Registered owner |
East Arrow Shipping SA Care of G2 Ocean AS C Sundtsgate 17 5004 Bergen Norway |
|
Latest data adjustment |
10 August 2021 |
