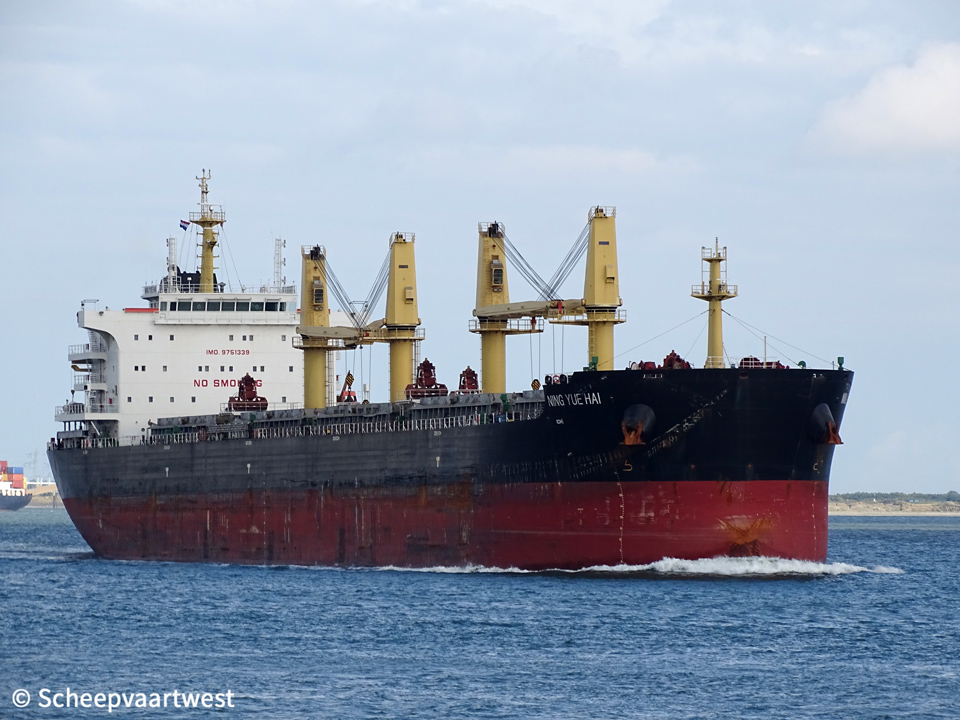

Ning Yue Hai 01

Westerschelde 04 September 2019



Name

NING YUE HAI

Type

Bulk carrier

IMO-number

9751339

Call sign

VRQL5

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

36.413 t

DWT

63.562 t

NT

21.646 t

Length

199,90 m overall

194,50 m between perpendiculars

Breadth

32,26 m moulded

Draught

11,30 m

Forecastle

13,14 m

Deckhouse

21,24 m

Freeboard

5.228 mm

Depth

18,50 m moulded

Speed

14,4 knots

Built

2017

Date of completion

20/04/2017

Builder

Chengxi Shipyard Co.,Ltd.
Jiangyin
China

Yard number

671

Hull material

Steel

Bulkheads

6

Continuous decks

1x upper deck

Main engine

1x HHM-MAN B&M 5S60ME-C8.2 - 5 cylinder 600 x 2.400 mm combustion engine 8.050 kW at 89,0 rpm

Build: 17/08/2016

Builder: Hu Dong Heavy Machinery Co., Ltd.

Propellers

1

Boilers

Builder: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 645 KW - 450 Volt

Number of holds

5

Number of hatches

5

4x 22,96 x 18,26 m each

1x 19,68 x 18,26 m

Cargo hold capacity

Grain:

Hold 1: 1.3957,80 m³

Hold 2: 1.7658,30 m³

Hold 3: 1.5352,99 m³

Hold 4: 1.5839,60 m³

Hold 5: 1.5942,06 m³

Total: 78.750,75 m³

Tank capacities

Ballast: 33.054 m³

Anchor equipment

1x Crane - SWL 0,5 t

1x Crane - SWL 4,0 t

1x Engine room overhead crane - SWL 4,0 t

Cargo gear

4x Deck cranes - SWL 30,0 t each

Operator

Cosco Bulk Carrier Co., Ltd.
Tianjin
China

Registered owner

Ning Yue Hai Shipping Ltd.

Latest data adjustment

04 October 2019
