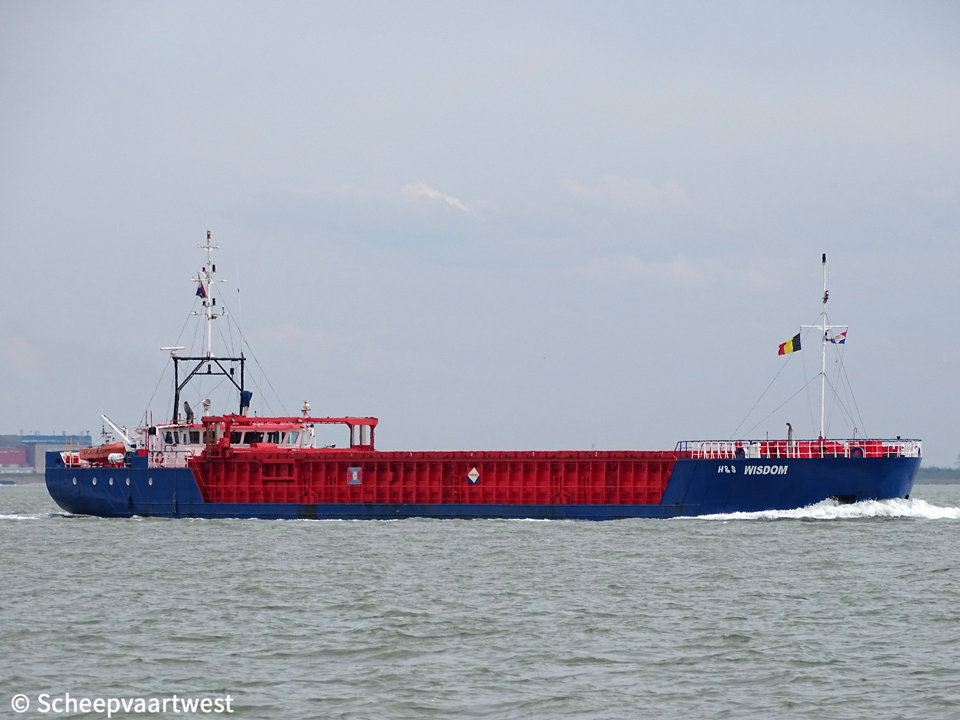

Westerschelde 12 March 2018 |
 |
 |
|

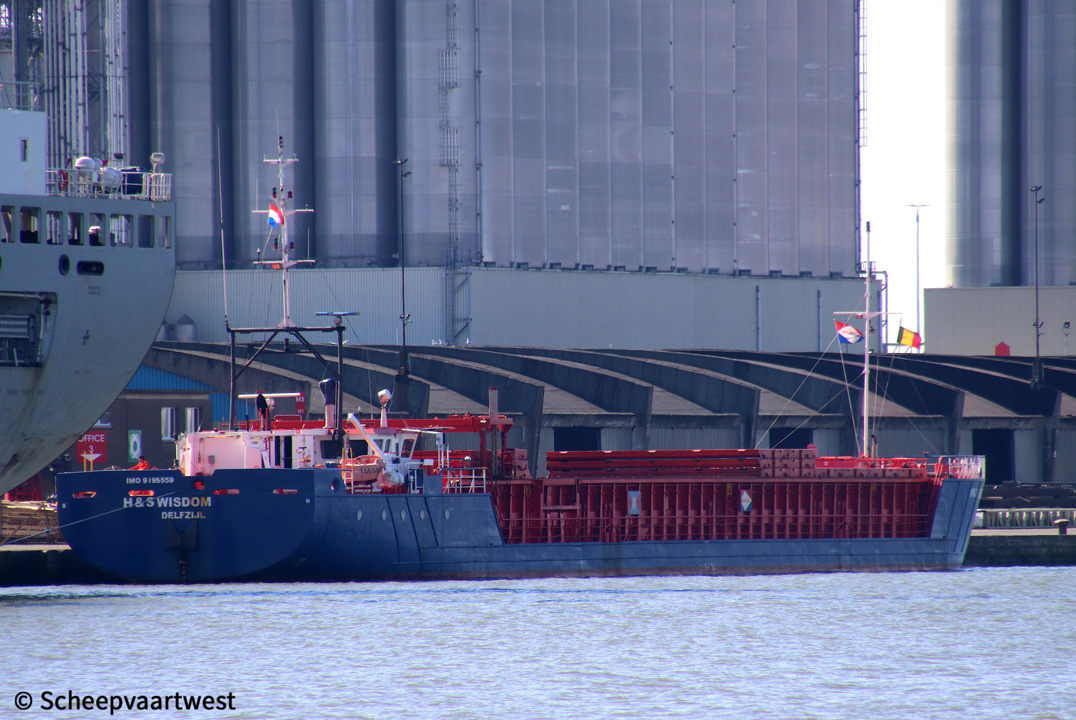

| Westerschelde 30/03/18 | Antwerpen 24/03/20 | |
|
Name |
H&S WISDOM |
|
Type |
General cargo ship - Heavy cargo - Singledecker / box Damen Combi Coaster 1700 |
|
IMO-number |
9195559 |
|
Call sign |
PCAZ |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
1.552 t |
|
DWT |
1.842 t |
|
DWCC |
Summer: 1.750 t Winter: 1.650 t |
|
NT |
804 t |
|
Number of 20ft containers |
45 |
|
Length |
82,19 m overall 78,65 m between perpendiculars |
|
Breadth |
11,30 m |
|
Draught |
3,42 m 2,80 m ballast |
|
Air draft |
6,50 m |
|
Freeboard |
1.054 mm |
|
Depth |
4,45 m |
|
Speed |
10,0 knots |
|
Built |
2004 |
|
Date of completion |
05/02/2004 |
|
Builder casco |
DAHK Chernomorskiy Sudnobudivniy Zavod (Black Sea Shipyard) Nikolayev Ukraine Yard number: 202 |
|
Builder completion |
Damen Shipyards Bergum Bergum The Netherlands Yard number: 9325 |
|
Hull material |
Steel |
|
Watertight bulkheads |
5 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 TA - 4 stroke single acting 12 cylinder 170 x 190 mm combustion engine 955 kW adjusted to 750 KW at 1.600 rpm Built: 2003 Builder: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany |
|
Propellers |
1x Screw propeller solid - aft at 269 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Generators |
2x Diesel generatorsets each 88 kVA - 70 kW - 95 hp |
|
Emergency generator |
1x Diesel generatorset 71 kVA - 57 kW - 77 hp |
|
Bow thruster |
1x Scania DS 11 - 242 kW |
|
Number of holds |
1 Dimensions: 51,80 x 9,30 x 6,20 m |
|
Total capacity of holds |
2.986 m³ / 105.462 ft³ |
|
Number of hatches |
1 Dimensions: 51,80 x 9,30 m |
|
Hatch cover type |
Steel pontoons, operated with own gantry crane |
|
Max permitted loads |
Tanktop: 12,0 t/m² |
|
Manager |
Amasus Shipping B.V. Delfzijl The Netherlands |
|
Registered owner |
Wisdom B.V. Delfzijl The Netherlands |
|
Previous owner |
2004- 06/2022 C.V. Scheepvaartonderneming Amasus II, Delfzijl - The Netherlands |
|
Latest data adjustment |
17 September 2024 |
