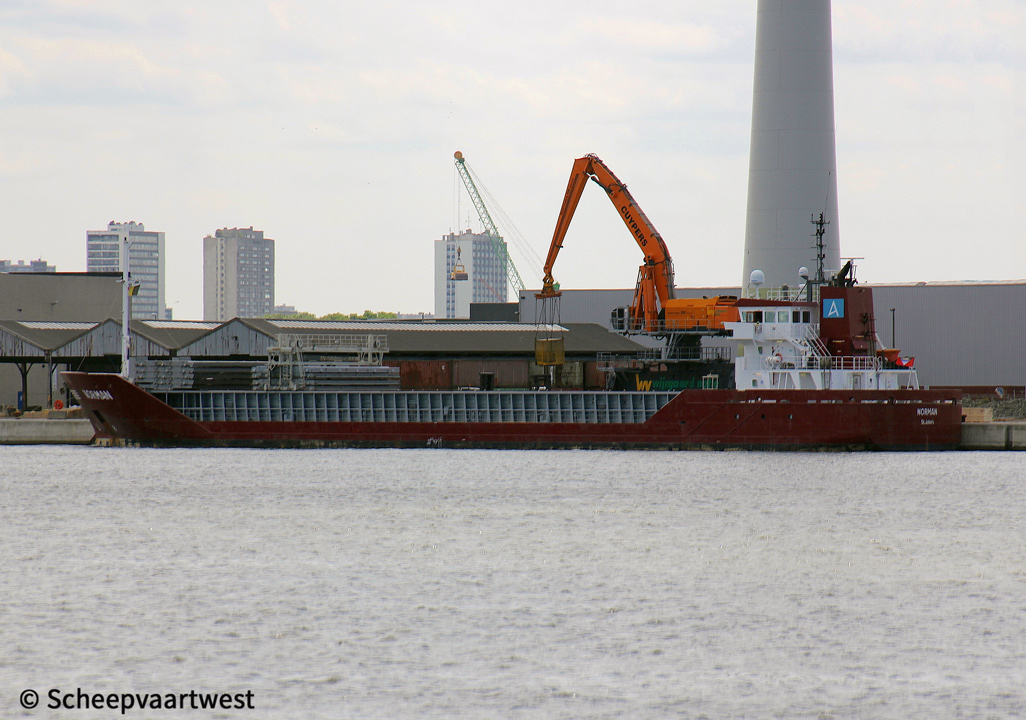

Antwerpen 01 July 2019 |
|
Name |
NORMAN |
|
Previous names |
11/2007 - 03/2018 Tasman |
|
Type |
General cargo ship - Container ship heavy cargo |
|
IMO-number |
9361342 |
|
Call sign |
CQAU5 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2007 - 2011 The Netherlands, Harlingen - Call sign: PFBO 2011 - 2017 Gibraltar - Call sign: ZDKI2 2017 - 2018 The Netherlands, Harlingen - Call sign: PDFQ 2018 - 2018 Malta, Valletta - Call sign: 9HA4793 2018 - 2019 Antigua & Barbuda, St. John’s - call sign: V2CT3 |
|
GT |
2.999 t |
|
DWT |
Summer: 4.537 t Winter: 4.350 t |
|
NT |
1.643 t |
|
Number of 20ft containers |
146 of which 44 on deck |
|
Reefer plugs |
10 |
|
Length |
89,78 m overall 84,97 m between perpendiculars |
|
Breadth |
14,00 m moulded |
|
Draught |
Summer: 5,95 m |
|
Air draft |
16,50 m ballast |
|
Freeboard |
1.561 mm |
|
Depth |
7,50 m |
|
Speed |
13,0 knots |
|
Built |
2007 |
|
Keel laid |
07/06/2007 |
|
Launch date |
03/11/2007 |
|
Date of completion |
28/11/2007 |
|
Builder |
NV Scheepswerven Ferus Smit |
|
Yard number |
377 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
6 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm diesel Combustion 2.640 kW / 3.587 hp at 750 rpm Built: 2007 Builder: M.A.K. Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propelling system |
1x Screw propeller controllable pitch |
|
Electrical propulsion gen. |
1x 340kW - 400 Volt |
|
Generators |
2x Diesel generatorsets each 256 kVA - 205 kW - 332 hp |
|
Bow thruster |
1x 275 kW |
|
Number of holds |
1x Box shaped 61,50 x 11,50 x 9,00 m |
|
Cargo hold capacity |
Grain / Bale: 5.976,20 m³ - 215.000 ft³ |
|
Hold ventilation |
8x Changes/hour, equipped with dehumidification system |
|
Number of hatches |
1 61,50 x 11,50 m |
|
Hatches type |
Pontoon hatch panels by gantry crane on coaming rails |
|
Max permitted loads |
Tanktop: 15,0 t/m³ Hatch cover: 3,5 t/m² |
|
Tank capacities |
Water ballast : 1.870 m³ Fresh water: 45 m³ Fuel oil: 375 m³ gas oil: 45 m³ |
|
Accommodation |
For 7 persons, all cabins air conditioned |
|
Manager |
Norman Maritime Unipessoal LDA |
|
Previous managers |
11/2007 - 05/2001 Flinter Shipping B.V., Paterswolde - The Netherlands 05/2001 - 11/2017 Flinter Management B.V., Barendrecht - The Netherlands 11/2017 - 03/2018 Rederij Tasman, Harlingen - The Netherlands 03/2018 - 2019 Alpha Shipping Company SIA, Riga - Latvia |
|
Previous names & owners |
11/2007 - 11/2017 Tasman - V.o.F. Motorschip Paphos, Harlingen - The Netherlands 11/20147 - 03/2018 Tasman - Rederij Tasman, Harlingen - The Netherlands 03/2018 - 2019 Norman - Veriana Trade Ltd., Limassol - Cyprus |
|
Latest data adjustment |
12 January 2020 |
