Westerschelde 02 July 2018 |
|
Name |

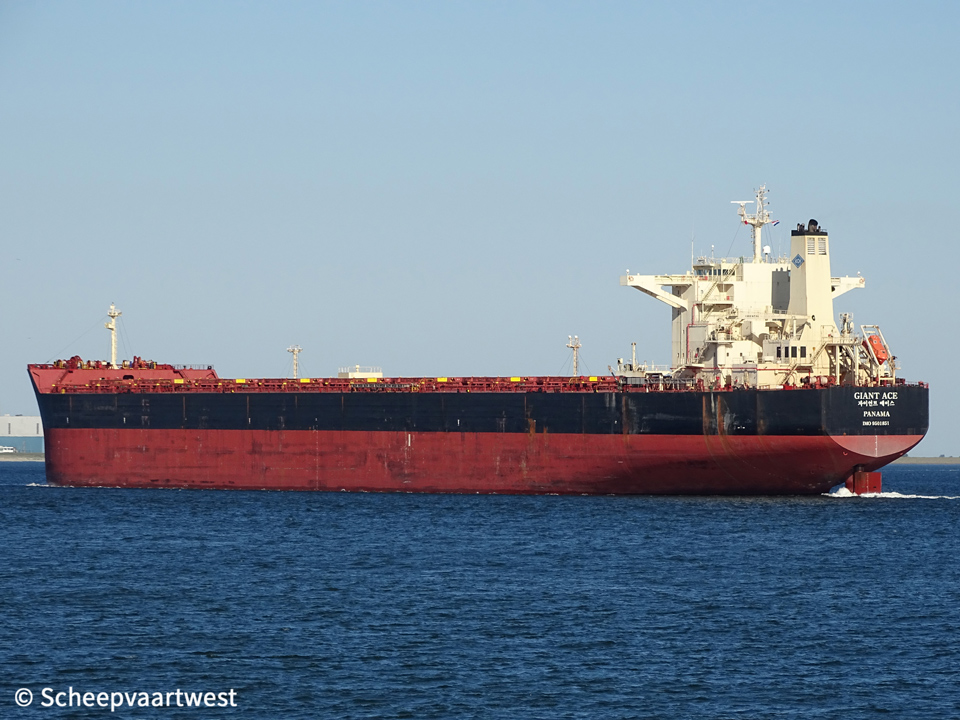

GIANT ACE |
|
Type |
Bulk carrier |
|
IMO-number |
9501851 |
|
Call sign |
3EVK |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
China |
|
GT |
93.359 t |
|
DWT |
Summer: 179.184 t |
|
NT |
60.453 t |
|
Length |
292,00 m overall |
|
Breadth |
45,00 m |
|
Draught |
Max: 18,22 m |
|
Reg. dimensions L x B x D |
284,23 x 45,00 x 24,70 m |
|
Rule dimensions L x B x D |
279,95 x 45,00 x 24,70 m |
|
Freeboard |
Summer: 6.634 mm |
|
Speed |
Max: 15,3 knots |
|
Built |
2009 |
|
Keel laid |
15/12/2008 |
|
Launch date |
03/04/2009 |
|
Date of completion |
20/07/2009 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
H-2239 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hyundai 6S70MC-C7 - 2 stroke single acting 6 cylinder 700 x 2.800 mm combustion engine 18.660 kW at 91,0 rpm Build: 10/2008 Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division |
|
Boilers |
1x Auxiliary Boiler WTB (Water tube boiler) - 8,0 bar Heating surface: 70,7 m² 2x Economizer EGE (Exhaust gas boiler)- 12,0 bar Heating surface: 314 m² Build: 12/2008 Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
3x Main diesel generatorsets each 938 kVA - 450 Volt |
|
Hatchway |
9 Hatch 1: 14,56 x 16,88 m Hatch 2: 15,60 x 20,20 m Hatch 3: 15,60 x 20,20 m Hatch 4: 15,60 x 20,20 m Hatch 5: 15,60 x 20,20 m Hatch 6: 15,60 x 20,20 m Hatch 7: 15,60 x 20,20 m Hatch 8: 15,60 x 20,20 m Hatch 9: 15,60 x 16,88 m |
|
Cargo hold capacity |
Grain : 200.169㎥ |
|
Tank capacities |
Fuel oil: 5.334,4 m³ Fresh water 445,4 m³ Water ballast: 53.340,1 m³ |
|
Manager |
Korea Line Corporation |
|
Previous managers |
KLC SM Co., Ltd. |
|
Registered owner |
Mirae Wise SA Republic of Panama |
|
Latest data adjustment |
07 December 2019 |
