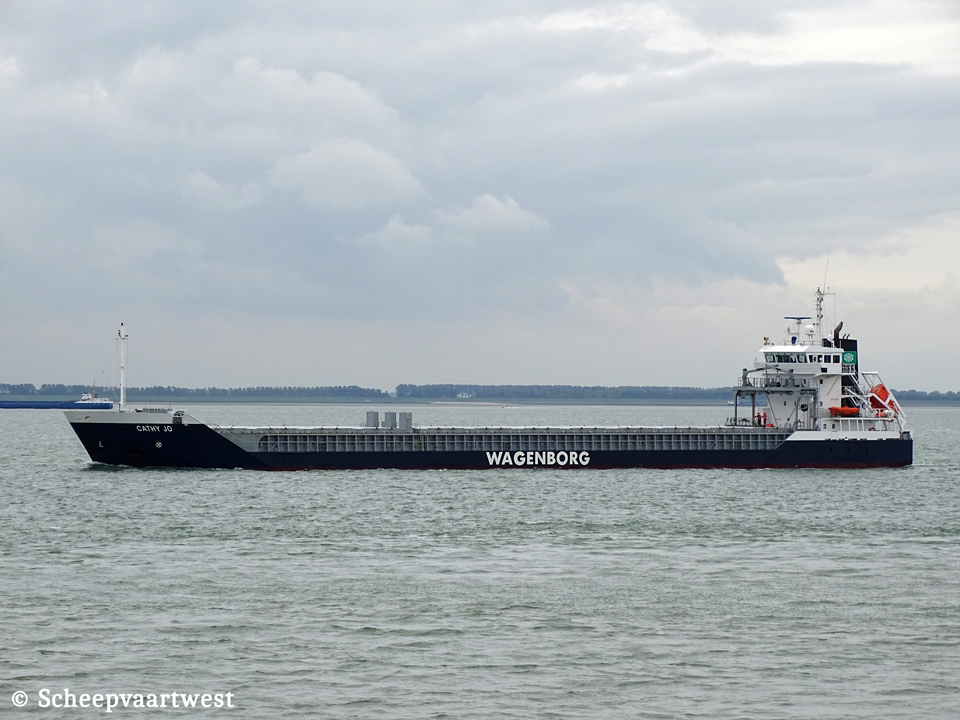

Westerschelde 17 October 2019 |
 |
 |
 |
 |
 |
 |
|||||

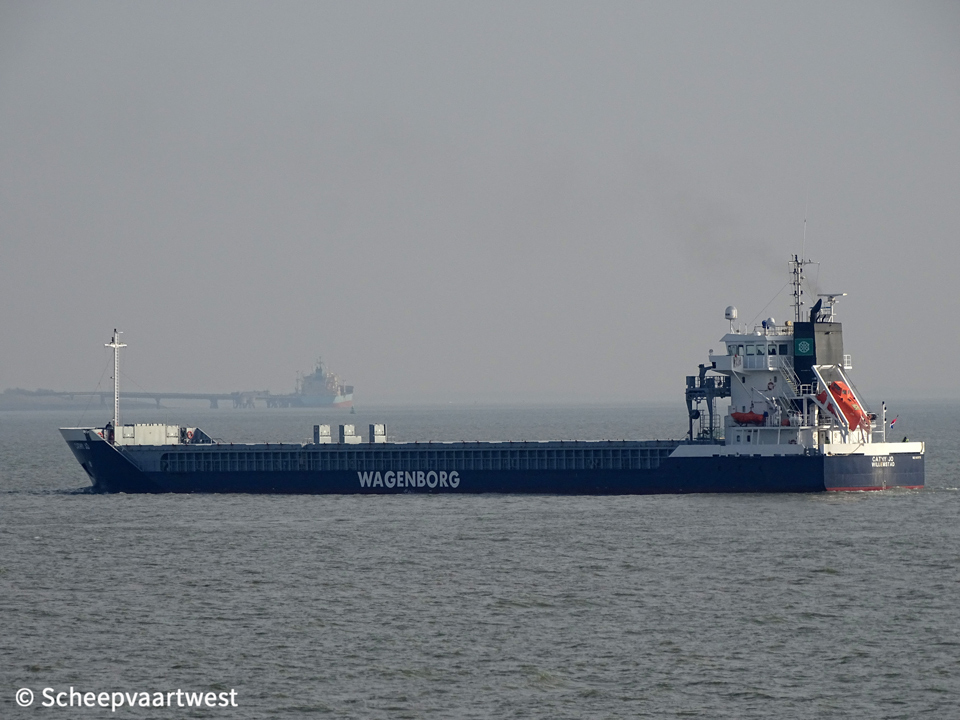

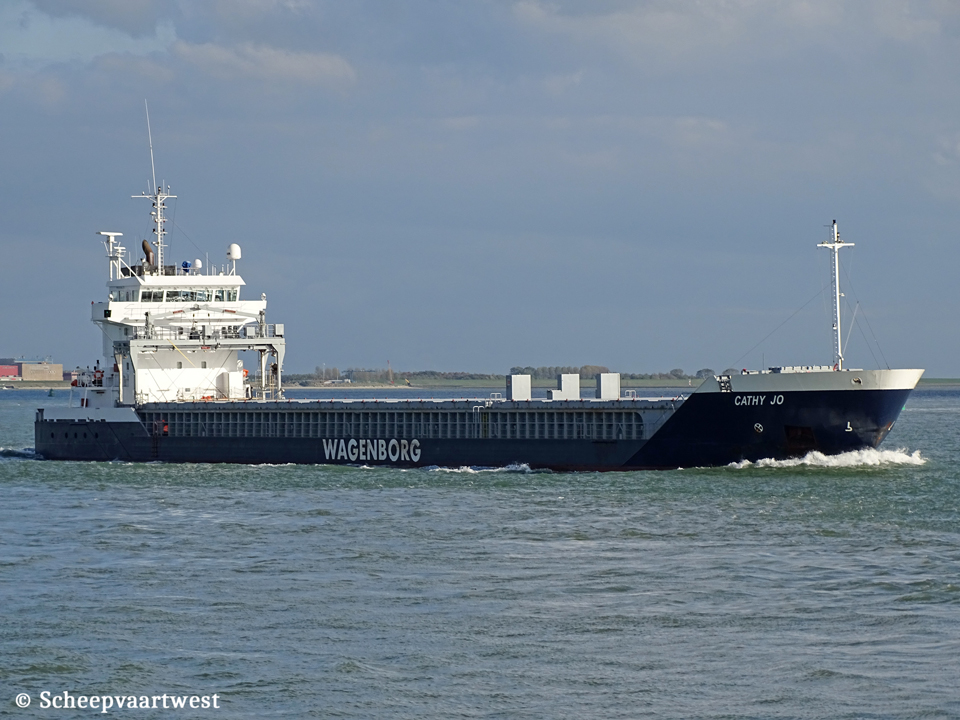

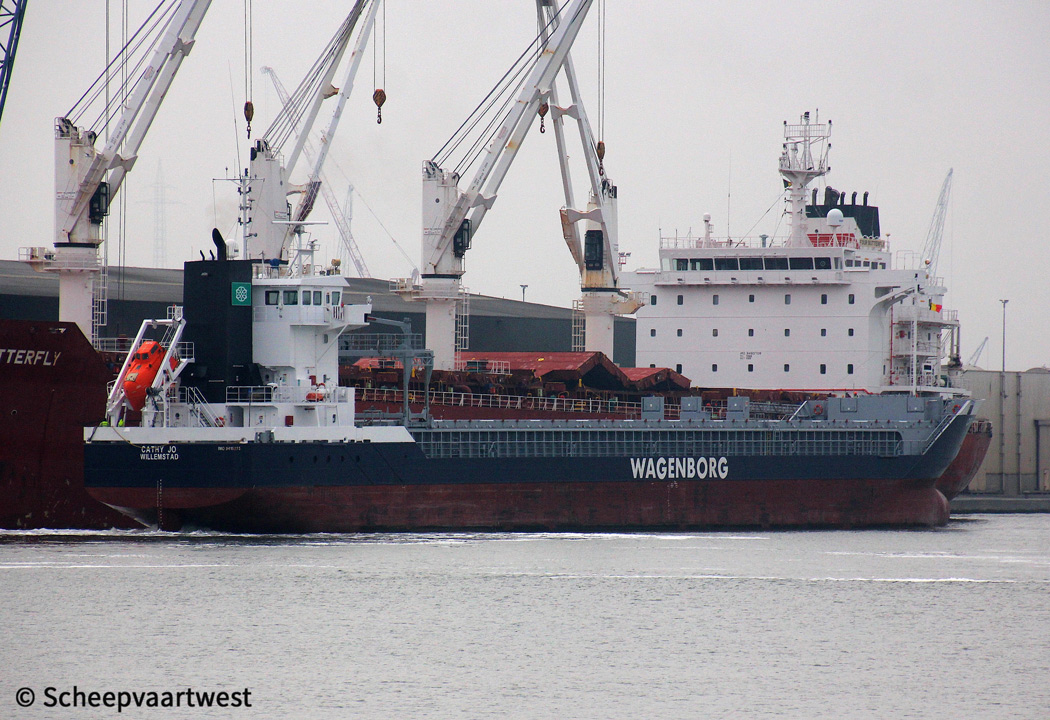

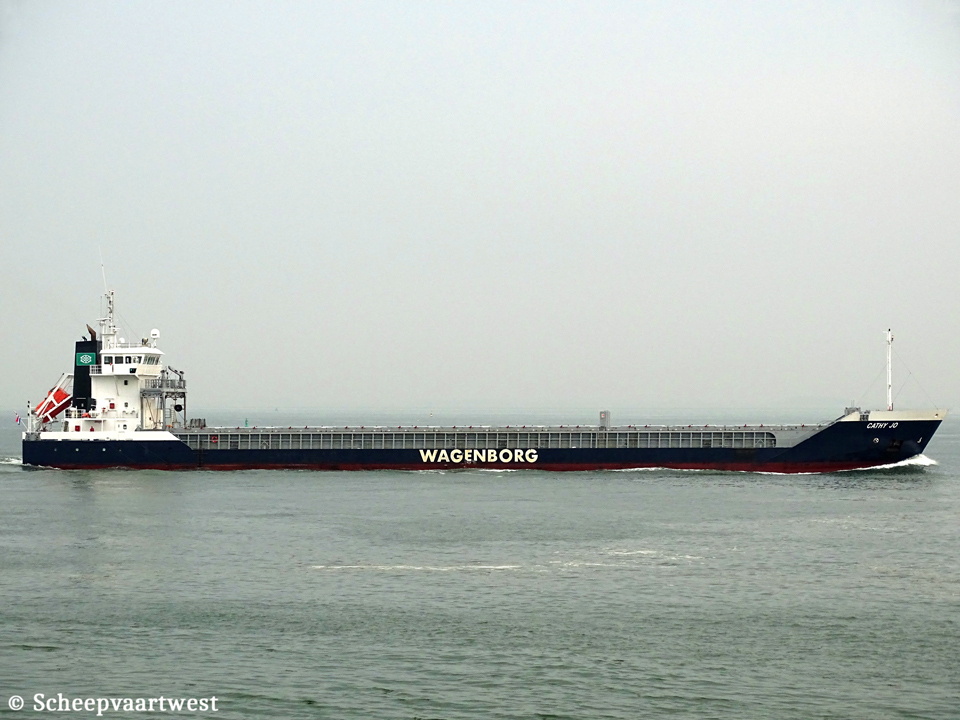

| Westerschelde 13/02/19 | Westerschelde 13/02/19 | Antwerpen 21/11/19 | Westerschelde 15/10/19 | Westerschelde 15/10/19 | Westerschelde 18/05/17 | |||||
|
Name |
CATHY JO |
|
Type |
General cargo ship - heavycargo - Container ship |
|
IMO-number |
9419278 |
|
Call sign |
PDVO |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
2008 - 2010 Netherlands Antilles, Willemstad - Call sign: PJYV 2010- 2020 Curaçoa, Willemstad - Call sign: PJYV |
|
GT |
3.990 t |
|
DWT |
5.960 t |
|
DWCC |
Summer: 6.400 t |
|
NT |
2.208 t |
|
Number of 20ft containers |
242 |
|
Length |
110,78 m overall 105,48 m between perpendiculars |
|
Breadth |
14,00 m overall |
|
Draught |
Max: 6,52 m |
|
Air draft |
21,40 m in ballast |
|
Freeboard |
1.636 mm |
|
Depth |
8,13 m moulded |
|
Speed |
12,0 knots |
|
Built |
2008 |
|
Keel laid |
20/01/2008 |
|
Launch date |
29/10/2007 |
|
Date of completion |
25/06/2008 |
|
Builder |
Ferus Smit Leer GmbH Leer Germany |
|
Yard number |
385 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 1.500 rpm Build: 10/01/2008 Builder: Caterpillar Motoren GmbH & Co. KG,Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 200 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x 488 kVA - 390 kW |
|
Generators |
2x Main diesel generatorsets each 175 kVA - 140 kW - 222 hp |
|
Emergency generator |
1x Diesel generatorset 52 kVA - 42 kW - 68 hp |
|
Bow thruster |
1x 335 kW |
|
Number of cargo holds |
2x Fully box and double skinned Hold 1: 27,58 x 11,47 x 9,00 m Hold 2: 50,88 x 11,47 x 9,00 m |
|
Total capacity of holds |
Bale / grain: 7.956 m³ / 278.042 ft³ |
|
Hold ventilation |
4x Air changes per hour, basis empty holds. Both holds are fitted with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 27,58 x 11,47 m Hatch 2: 50,88 x 11,47 m |
|
Hatch type |
Coops & Nieborg pontoon hatchcovers |
|
Tank capacities |
HFO: 379 m³ MGO: 44,7 m³ Water ballast: 2.599 m³ Fresh water: 45 m³ |
|
Crew size |
8 |
|
Manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Owner |
Corrib Shipping Group |
|
Registered owner |
Eems Beheer XIV B.V. Delfzijl The Netherlands |
|
Previous owner |
05/2008 - 12/2020 Seaburn Shipping NV Willemstad Curaçao |
|
Latest data adjustment |
25 January 2022 |
