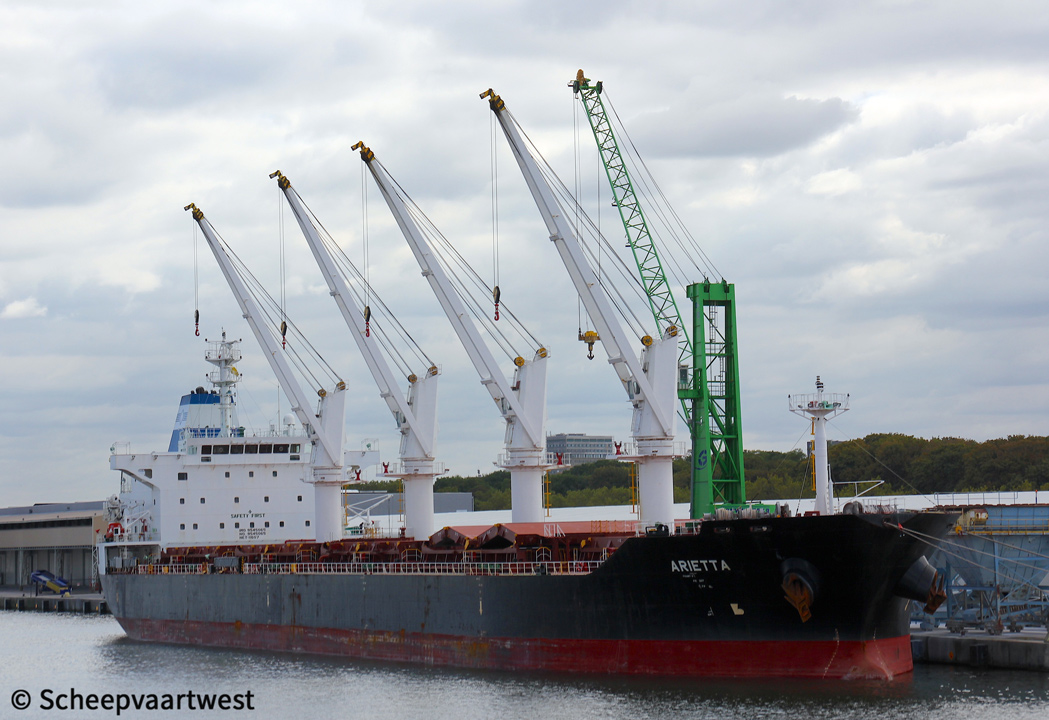

Arietta 01

Antwerpen 19 September 2019



Name

ARIETTA

Type

Handymax bulk carrier

IMO-number

9545065

Call sign

9HA2902

Flag

Malta

Port of registry

Valletta

GT

22.400 t registered

Suez: 22.861,91 t

DWT

Summer: 34.111,45 t

NT

11.642 t registered

Panama: 18.669 t

Suez: 20.559,68 t

Displacement

42.723,23 t

Length

180,40 m overall

171,40 m between perpendiculars

Breadth

30,00 m moulded

Draught

Max: 9,30 m

Freeboard

4.524 mm

Depth

14,40 m moulded

Speed

Max: 13,9 knots

Built

2012

Keel laid

09/05/2011

Launch date

05/09/2011

Delivery date

18/02/2012

Builder

Dae Sun Shipbuilding & Engineering Co., Ltd.

12, 4-GA, Bongnae-Dong, Youngdo-Gu

Busan

South Korea

Yard number

SB538

Hull material

Steel

Main engine

1x STX - MAN B&W 6S42MC7 - 6 cylinder combustion engine 6.480 kW / 8.810 bhp at 136,0 rpm

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Fired exhaust gas boiler - 8 Mpa

Manufacturer: Aalborg Industries Co., Ltd.

Generators

3x MAN 5L23/30H - 5 cylinder 225 x 300 mm combustion engines each 650 kW at 720 rpm coupled with generators HFC7 502-14K each 570 kW

Manufacturer: STX Engine Co., Ltd / HHI Electro Electric System

Number of cargo holds

5

Cargo hold capacity

Grain: 46.587,85 m³

Bale: 44.526,20 m³

Number of hatches

5

Tank capacities

Lub oil: 122,44 m³

Fuel oil: 1.566,94 m³

Ballast: 10.337,61 m³

Fresh water: 543,61 m³

Diesel oil: 267,11 m³

Lifting equipment

1x Engine room overhead crane - SWL 2,5 t

Manufacturer: Dae Kyung Co., Ltd

1x Provision crane - SWL 3,0 t

Manufacturer: Oriental Prec & Eng'g Co.

Cargo gear

4x Cranes - SWL each 30,0 t

Manufacturer: Wuhan Marine Machinery Plant Co., Ltd.

Crew

27

Manager

Alloceans Shipping Co. Ltd.

Athens

Greece

Registered owner

Mentor Maritime SA

Athens

Greece

Latest data adjustment

10 February 2020
