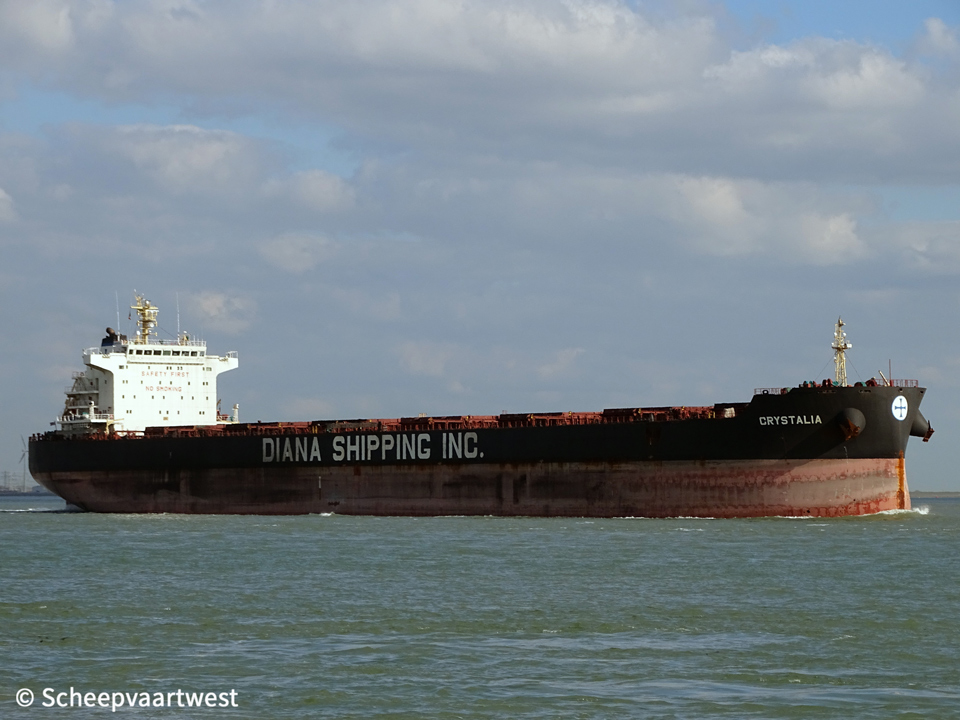

Crystalia 01

Westerschelde 14 March 2018



Name

CRYSTALIA

Type

Bulk carrier - Panamax

IMO-number

9658874

Call sign

SVBX7

Flag

Greece

Port of registry

Piraeus

GT

41.882 t

DWT

Summer: 77.525 t

NT

25.580 t

Lightship

13.365 t

Length

224,93 m overall

221,44 m between perpendiculars

Breadth

32,26 m extreme

Draught

Summer: 14,35 m

Forecastle

14,47 m

Deckhouse

20,75 m

Freeboard

5.469 mm

Depth

19,79 m moulded

Speed

Max: 14,5 knots

Built

2014

Keel laid

24/06/2013

Launch date

29/09/2013

Date of completion

20/02/2014

Builder

Jiangnan Shipyard (Group) Co., Ltd.

China

Yard number

H2528

Hull material

Steel

Bulkheads

9

Continuous decks

1x Upper deck

Main engine

1x MAN-B&W/Hudong Heavy Machinery 5S60ME -C8.2 - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 11.900 kW at 105,0 rpm

Build: 27/06/2012

Builder: Hu Dong Heavy Machinery Co., Ltd., Shanghai - China

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, composite - 8,0 bar

Heating area: 17,8 m²/255 m²

Builder: Saacke Qingdao Marine Boiler Co.,Ltd.

Generators

3x Hyundai/Himsen 6H17/28U(E) main diesel generatorsets each 600 kW / 450 Volt

Builder: Hyundai Heavy Ind. Co., Ltd. Engine & Machinery Division

Emergency generator

1x Sisu 634 Power, GenPowex

Number of holds

7

Cargo hold capacity

Grain:

Hold 1: 11.340,60 m³

Hold 2: 13.521,80 m³

Hold 3: 13.246,90 m³

Hold 4: 12.596,20 m³

Hold 5: 13.197,70 m³

Hold 6: 13.283,20 m³

Hold 7: 12.881,20 m³

Total: 90.067,60 m³

Number of hatches

7

6x 15,48 x 15,20 m

1x 15,48 x 13,60 m

Tank capacities

Ballast: 35.206 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Cargo gear

Gearless

Manager

Diana Shipping Inc.

c/o Diana Shipping Services S.A.

Pendelis 16

175 64 Palaio Faliro

Athens

Greece

Owner

Erikub Shipping Company Inc.

Latest data adjustment

20 March 2020
