Westerschelde 04 March 2017 |
 |
 |
|
| Westerschelde 03/03/16 | Antwerpen 24/03/20 | |
|
Name |

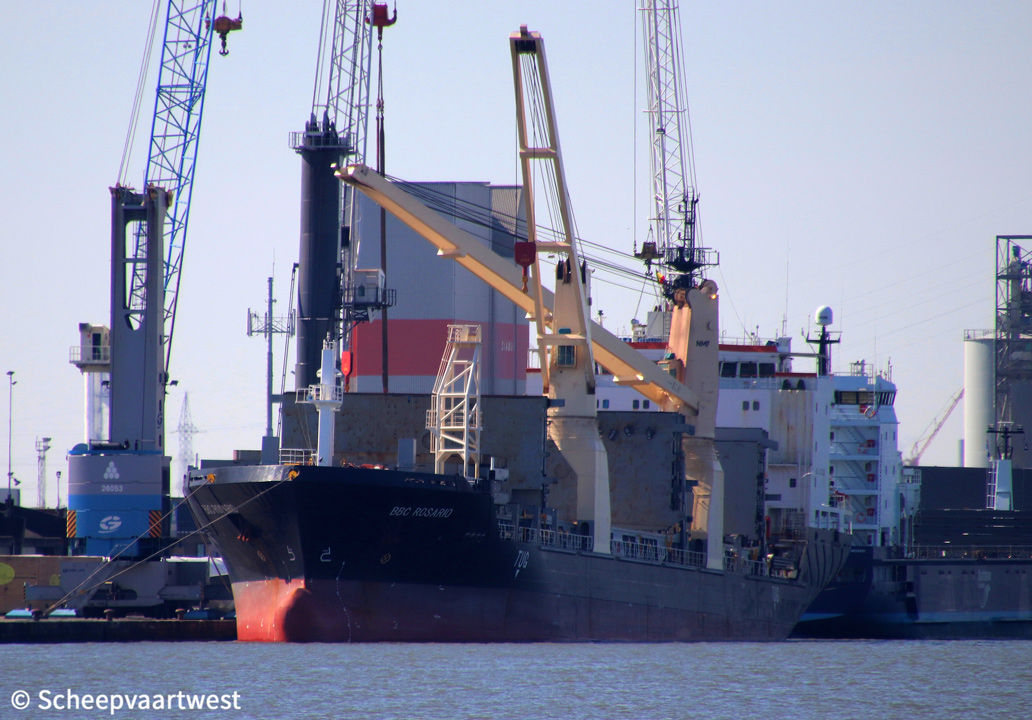

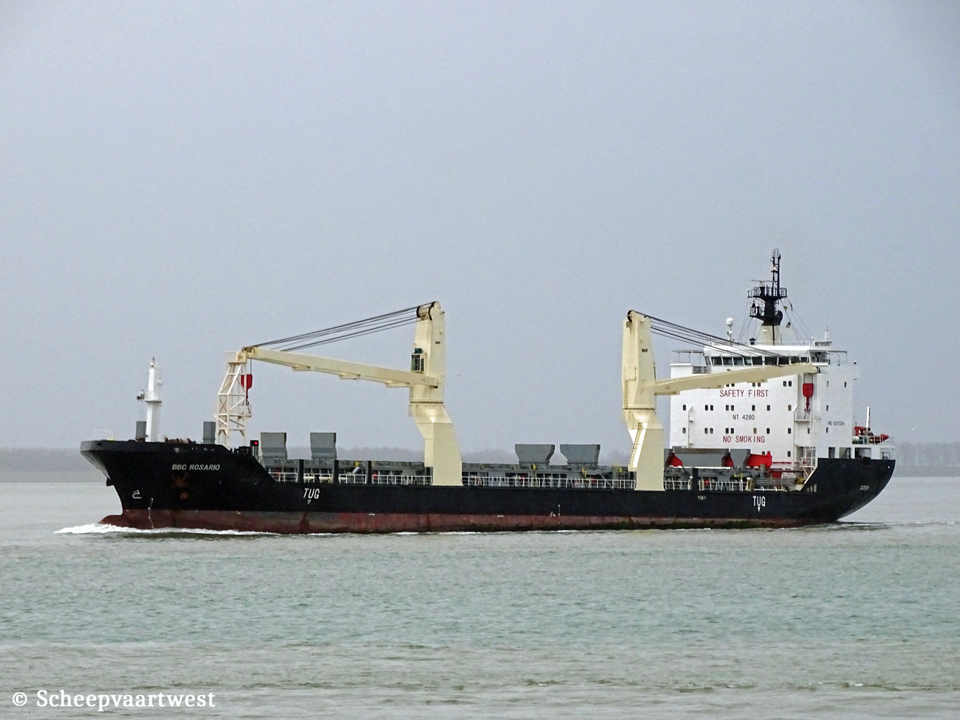

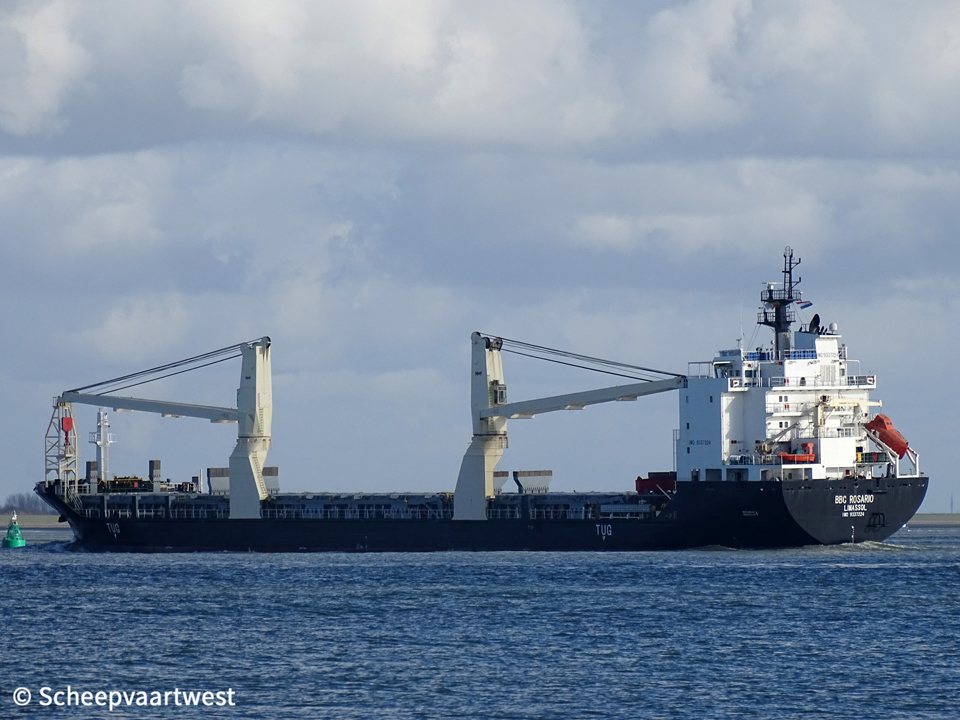

BBC ROSARIO |
|
Previous names |
01/2007 - 02/2011 BBC Rosario 02/2011 - 07/2014 Rosario |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Heavy lifter |
|
IMO-number |
9337224 |
|
Call sign |
5LGY2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
2007 - 07/2022 Cyprus, Limassol - Call sign: C4QL2 |
|
GT |
9.620 |
|
DWT |
12.873,4 t |
|
NT |
4.260 |
|
Number of 20ft containers |
In hold: 334 On deck: 331 Total: 665 |
|
Container capacity 14t |
528 |
|
Reefer plugs |
50 on deck |
|
Length |
138,54 m overall |
|
Breadth |
21,34 m extreme 21,00 m moulded |
|
Draught |
Max: 8,05 m |
|
Reg. Dimensions L x B x D |
130,71 x 21,00 x 11,00 m |
|
Rule Dimensions L x B x D |
129,33 x 21,00 x 11,00 m |
|
Height above keel |
40,90 m |
|
Forecastle |
9,69 m |
|
Poop |
12,60 m |
|
Freeboard |
3.018 mm |
|
Depth |
11,00 m to main deck |
|
Speed |
Max: 15,0 knots Service: 13,5 knots |
|
Built |
2007 |
|
Keel laid |
24/12/2004 |
|
Launch date |
28/06/2006 |
|
Date of completion |
13/02/2007 |
|
Builder |
Taizhou Sanfu Ship Engineering Co., Ltd. Taizhou Jiangsu China |
|
Yard number |
SF0078 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar/MaK 6M43 - 4stroke single acting 2 stroke 6 cylinder 430 x 610 mm diesel engine 5.400 kW at 500 rpm Build: 28/04/2007 Manufacturer: Caterpillar Motoren Rostock GmbH - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 132,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 44,8 m² Manufacturer: Apparate- und Kesselbau AKB GmbH 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 88,6 m² Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH |
|
Electric installations |
1x Plant 400/230 V - 626 kVA 1x Plant 400/230 V - 626 kVA 1x Plant 400/230 V - 626 kVA 1x Plant 400 V - 875 kVA 1x Plant 400 V - 124 kVA |
|
Shaft generator |
1x 750 kW / 875 kVA |
|
Generators |
3x MAN D2842LE301 main diesel generatorsets each 532 kW / 626 kVA at 1.500 rpm / 400 Volt |
|
Emergency generator |
1x MAN D 2866 E diesel generatorset 125 kW at 1.500 rpm |
|
Bow thruster |
1x 500 kW, forward |
|
Number of holds |
3x Boxshaped |
|
Cargo hold capacity |
Grain/Bale: 15.952 m³ / 563.340 ft³ |
|
Number of hatches |
3 |
|
Floor space |
Under deck: 2.810 m² / 30.247 ft² On deck: 1.480 m³ / 15.931 ft² |
|
Tween deck |
Can build up to 2 moveable bulkheads No. 1: 18,75 x 10,06 x 10,75 m No. 2: 42,00 x 17,50 x 11,40 m No. 3: 25,50 x 17,50 x 10,99 m |
|
Max permitted loads |
16,0 t/m² tanktop 2,5 t on tweendeck in hold 1 and hold 2 (upper position) 4,0 t on tweendeck in hold 2 (middle and lower position) and hold 3 1,75 t on hatch covers |
|
Tank capacities |
Ballast: 4.931,3 m³ Fuel oil: 986,7 m³ Fresh water: 177,0 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Length: 544,60 m Diameter: 52 mm |
|
Cargo gear |
2x NMF cranes situated portside - SWL 120 t each 240 t capacity combined |
|
ISM & Commercial manager |
Liberty Blue Shipmanagement GmbH & Co. KG Harderwykensteg 1 26789 Leer Germany |
|
Operator |
BBC Chartering GmbH Hafenstr. 10B 26789 Leer Germany |
|
Owner |
Condor 239. Schifffahrts-GmbH & Co. KG MS "LINZ" Germany |
|
Latest data adjustment |
14 January 2025 |
