Westerschelde 16 March 2016 |
|
Name |

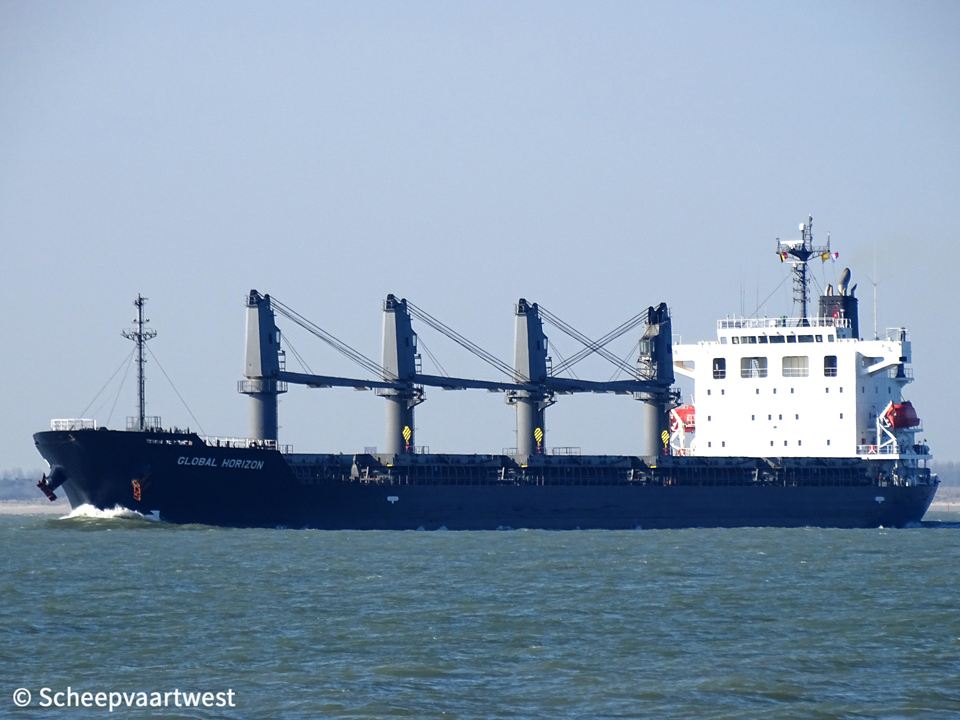

GLOBAL HORIZON |
|
Type |
Bulk carrier |
|
IMO-number |
9553012 |
|
Call sign |
3FCW4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
21.192 t registered |
|
DWT |
Summer: 33.633 t |
|
NT |
11.615 t registered |
|
Length |
179,99 m overall |
|
Breadth |
28,20 m moulded |
|
Draught |
Summer: 10,10 m |
|
Moulded L x B x D |
172,00 x 28,20 x 14,30 m |
|
Registered L x B x D |
172,32 x 28,20 x 14,30 m |
|
Freeboard |
4.266 mm |
|
Depth |
14,30 m moulded |
|
Speed |
Max: 15,8 knots |
|
Built |
2010 |
|
Keel laid |
04/06/2010 |
|
Launch date |
24/06/2010 |
|
Date of completion |
15/12/2010 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Imabari Japan |
|
Yard number |
5687 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x 1.840 mm combustion engine 6.250 kW / 8.381 hp at 118,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 460 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,85 t/h Manufacturer :Tortoise Engineering Co., Ltd. |
|
Generators |
3x Diesel generatorsets total 1.189 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 43.164 m³ Grain: 44.038 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.624 m³ Fresh water: 310 m³ Ballast: 13.332 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
Kobe Shipmanagement Kobe Japan |
|
Owner |
MK Shipmanagement Tokyo Japan |
|
Renamed |
2018 Ocean Spring Hong Kong, China - Call sign: VRRP2 Owner: Ocean Spring Maritime Inc. Manager: Ocean Longevity Shipping & Management Co., Ltd. |
|
Latest data adjustment |
01 May 2020 |
