Vlissingen 24 March 2018 |
Name |

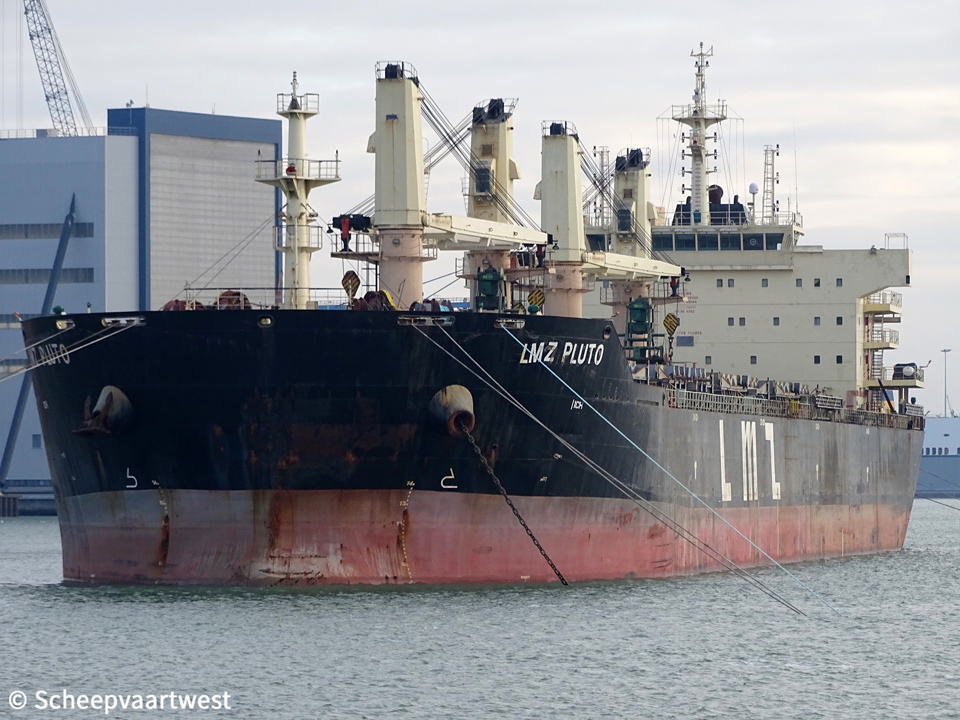

LMZ PLUTO |
Previous names |
OSW4 2011 - 2013 Guoyu 51 |
Type |
Bulk carrier - Handymax |
IMO-number |
9585326 |
Call sign |
V7WM9 |
Flag |
Marshall islands |
Port of registry |
Majuro |
GT |
33.044 t |
DWT |
Summer: 56.705 t |
Length |
189,99 m overall 185,00 m between perpendiculars |
Breadth |
32,26 m |
Draught |
Max: 12,80 m |
Freeboard |
5.224 mm |
Speed |
14,2 knots |
Built |
2011 |
Keel laid |
16812/2009 |
Date of completion |
12/05/2011 |
Builder |
Yangzhou Guoyu Shipbuilding Co., Ltd. China |
Yard number |
GY437 |
Hull material |
Steel |
Hull type |
Single hull |
Continuous decks |
1 |
Main engine |
1x Wärtsilä 6RTFLEX-50B - 2 stroke 6 cylinder 500 x 2.020 mm combustion engine 9.480 kW / 12.880 hp at 124,0 rpm Builder: Qingdao Qiyao Wartsila MHI Linshan Marine Diesel C, Qingdao - China |
Propellers |
1x Screw propeller solid - aft at 124,0 rpm |
Boilers |
1x CHM C09752 - 222,00 m² / 7,0 bar |
Generators |
3x Daihatsu 5DK-20e main diesel generatorsets each 750 kVA - 600 kW - 897 hp |
Emergency generator |
1x Cummins 6BT5.9-D(M/ Diesel generatorset 124 kVA - 99 kW - 135 hp |
Number of holds |
5 |
Total capacity of holds |
Hold 1: 13.009,86m³ Hold 2: 15.333,25 m³ Hold 3: 14.553,08 m³ Hold 4: 15.333,27 m³ Hold 5: 13.404,64 m³ Total: 71.634,10 m³ |
Hold ventilation |
Natural |
Number of hatches |
5 Hatch 1: 18,86 x 18,26 m Hatch 2: 21,32 x 18,26 m Hatch 3: 21,32 x 18,26 m Hatch 4: 21,32 x 18,26 m Hatch 5: 21,32 x 18,26 m |
Hatch type |
Folding |
Pumps |
2a Ballast pumps each 800 m³/h |
Tank capacities |
Fuel: 2.405,03 m³ |
Cargo gear |
4x MacGregor GLB/electro-hydraulic cranes - SWL 36 t each for hook use & 28 t for grab use Max outreach abt 11,90 m Type of grabs: 4 electro-hydraulic/dual scoop |
Manager |
LMZ Shipping S.A. Athens |
Registered owner |
Pluto Marine Ltd. |
Latest data adjustment |
12 May 2020 |
