Vlissingen 23 March 2018 |
|
Name |

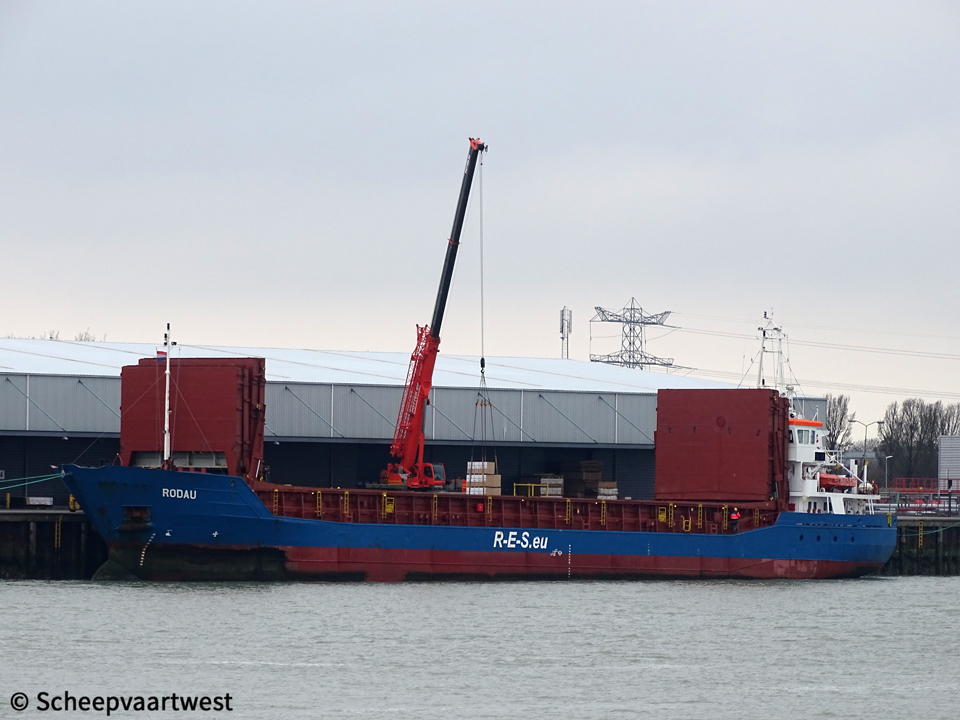

RODAU |
|
Type |
General Dry Cargo Ship – multi-purpose single deck – single hold – steel floored Box shaped – one cargo hold grain fitted – two moveable bulkheads |
|
IMO-number |
9313656 |
|
Call sign |
V2OP3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
2.461 t |
|
DWT |
Summer: 3.712,45 t Winter: 3.671 t |
|
DWCC |
Summer: 3.550 t Winter: 3.420 t |
|
NT |
1.369 t |
|
Light ship |
1.212,8 t |
|
Displacement |
Summer: 5.022,8 t |
|
Number of 20ft containers |
176 |
|
Length |
87,79 m overall 81,00 m between perpendiculars |
|
Breadth |
12,98 m extreme 12,80 m moulded |
|
Draught |
Summer: 5,59 m Winter: 5,48 m |
|
Keel to highest fixed point |
25,20 m |
|
Air draft |
21,50 m in ballast |
|
Freeboard |
Summer: 1.520 mm |
|
Depth |
7,10 m moulded |
|
Speed |
12,3 knots |
|
Built |
2004 |
|
Keel laid |
12/06/1998 |
|
Launch date |
27/04/2004 |
|
Date of completion |
17/06/2004 |
|
Builder |
Slovenske Lodenice Komarno A.S. Prevadzkaren 94525 Komarno Slovakia Republic |
|
Yard number |
2954 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Movable bulkheads |
2x Movable units, various positions |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder combustion engine 1.520 kW / 2.067 bhp Builder: Caterpillar Motoren GmbH & Co.KG, Kiel - Germany |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x MAN D2866E main diesel generatorsets each 130 kVA - 104 kW - 224 hp |
|
Emergency & harbour gen. |
1x Cummins 4B-T3.9-DM diesel generatorset 49 kVA - 39 kW - 67 hp |
|
Bow thruster |
1x 185 kW |
|
Number of holds |
1 56,55 x 10,20 x 8,15m 55,75 x 10,20 x 8,15m incl. bulkheads |
|
Cargo hold capacity |
Grain: 4.613 m³/ 162.906 ft³ Bale: 4.560 m³ / 161.034 ft³ |
|
Number of hatches |
1 56,55 x 10,20 m |
|
Hatch cover type |
Kvaerner multi-fold Crocodile |
|
Max permitted loads |
Tanktop: 15,0 t/m² Deck: 1,6 0t/m³ |
|
Tank capacities |
Gas oil: 122 t Ballast: 1.652,7 m³ Fresh water: 48 t |
|
Anchor equipment |
Length: 660,00 m Diameter: 36 mm |
|
Manager |
Reederei Erwin Strahlmann GmbH & Co. KG Schleusenstraße 10 25541 Brunsbüttel Germany |
|
Operator |
R.E.S. Chartering GmbH Fuhlentwiete 10 20355 Hamburg Germany |
|
Registered owner |
E. Strahlmann GmbH & Co. Reederei KG MS "ARLAU" & "RODAU" |
|
Renamed |
06/2021 Marcus Belgium, Antwerpen - Call sign: ONLC Owner: Rederij AD&C NV, Antwerpen - Belgium |
|
Latest data adjustment |
14 July 2021 |
