| Vlissingen 19 January 2020 |
|
Name |

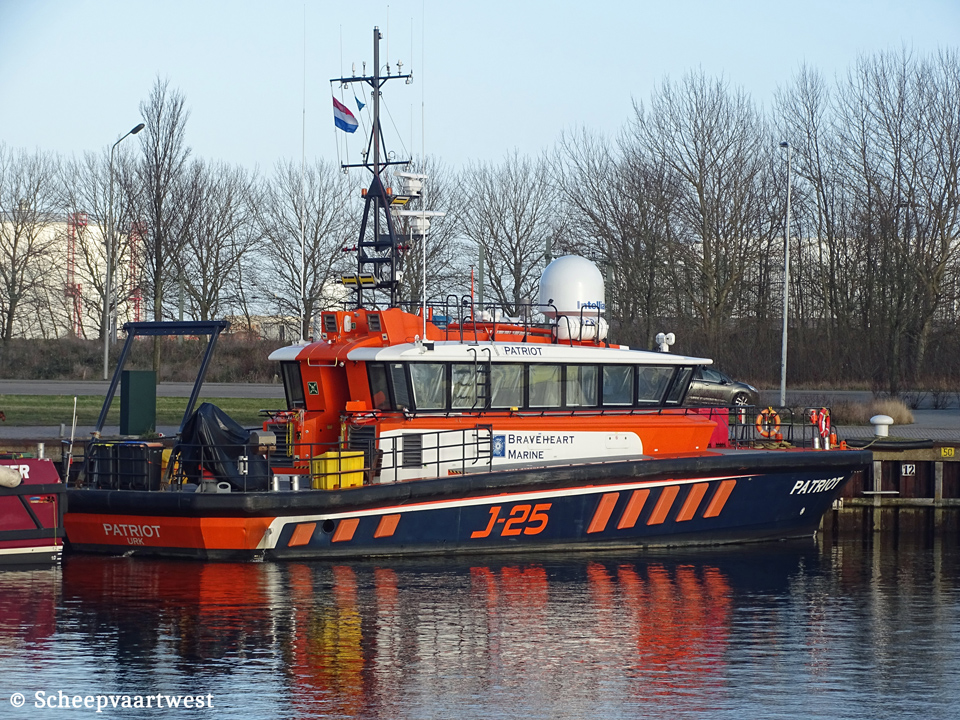

PATRIOT |
|
Type |
Multi-purpose vessel - Maintenance support vessel |
|
IMO-number |
9845245 |
|
Call sign |
PDEN |
|
Flag |
The Netherlands |
|
Port of registry |
Urk |
|
GT |
127 t |
|
DWT |
Summer: 143 t |
|
NT |
38 t |
|
Length |
25,90 m overall 23,87 m between perpendiculars |
|
Breadth |
7,00 m |
|
Draught |
1,45 m |
|
Speed |
Max: 25,0 knots |
|
Built |
2017 |
|
Date of completion |
05/08/2017 |
|
Builder |
Javelin International B.V. / NG Shipyards The Netherlands |
|
Yard number |
25.25 |
|
Hull material |
Aluminium |
|
Watertight compartments |
3 |
|
Continuous decks |
1 |
|
Main engine |
2x MAN V12 - 12 cylinder 128 x 157 mm combustion engines total 2.058 kW / 2.796 hp at 2.100 rpm Build: 08/10/2014 Builder: MAN Truck & Bus AG, Nurnberg - Germany |
|
Propellers |
2x Screw propeller solid at 700 rpm |
|
Generators |
2x Diesel generatorsets each 65 kVA - 52 kW - 68 hp |
|
Deck space |
25 m² |
|
Tank capacities |
Fuel: 25.000 litres Fuel transfer: 15.000 litres Fresh water: 4.000 litres Grey water: 600 litres |
|
Crew |
3 |
|
Accommodation |
12x Crew seats & lounge seats 2x Toilets, galley & shower 6x Cabins with 10 berths total Technical room |
|
Manager |
Braveheart Exploitatie BV |
|
Owner |
Contact Braveheart Marine BV De Meer 9 8321 MT Urk The Netherlands |
|
Latest data adjustment |
26 June 2023 |
