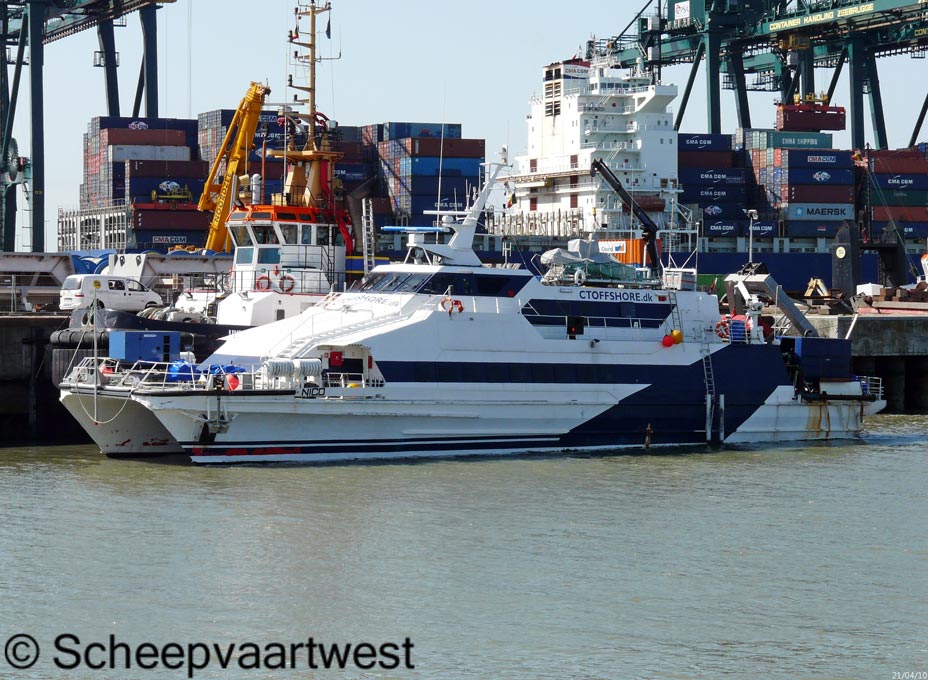

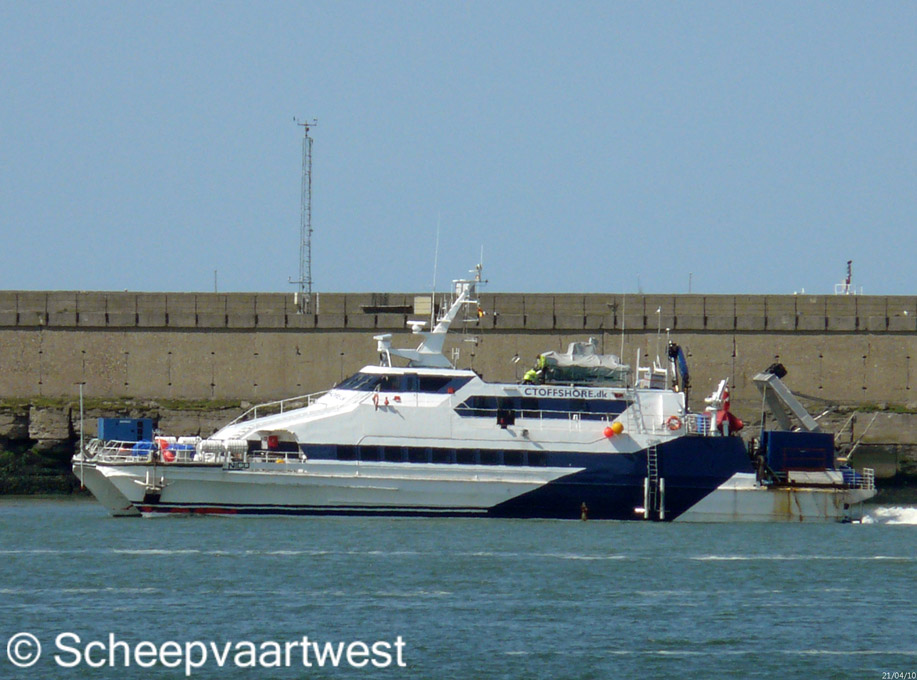

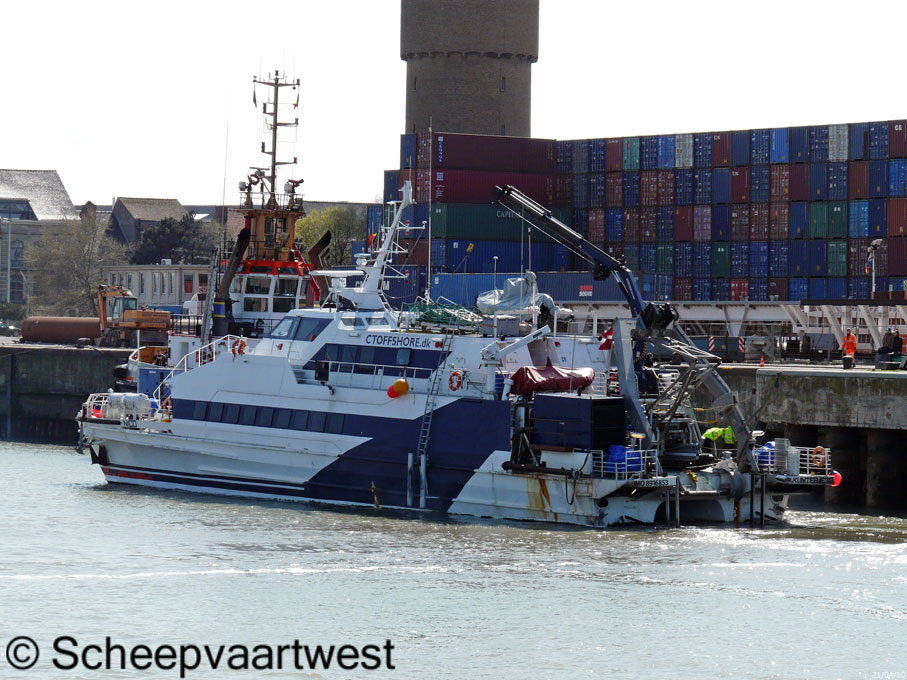

| Zeebrugge 24 April 2010 |
 |
 |
|
| Zeebrugge 21/04/10 | Zeebrugge 21/04/10 | |
|
Name |
NICO |
|
Previous names |
1990 - 2007 Varangerfjord 2007 Nico |
|
Type |
Catamaran - Support vessel |
|
Service |
Fast crew support Dive support GT & GF Survey support ROV Support Array installation & Post Lay Burial |
|
IMO-number |
8916853 |
|
Call sign |
OXTF2 |
|
Flag |
Denmark |
|
Previous flag |
1990 - 2007 Norway |
|
Port of registry |
Klintebjerg |
|
GT |
417 t |
|
NT |
125 t |
|
Length |
38,82 m overall 35,84 m between perpendiculars |
|
Breadth |
9,40 m |
|
Draught |
Summer: 1,85 m |
|
Freeboard |
2.273 mm |
|
Depth |
2,40 m |
|
Speed |
Economic: 16,0 knots Max.: 22,0 - 25,0 knots |
|
Built |
1990 |
|
Keel laid |
20.11.1989 |
|
Launch date |
11.05.1990 |
|
Date of completion |
06.06.1990 |
|
Builder |
Kvaerner Fjellstrand |
|
Yard number |
1600 |
|
Hull material |
Aluminium |
|
Main engine |
2x MTU 16V396 - 1.800 kW water jet drive Manufacture: MTU Friedrichshafen GmbH |
|
Propulsion thruster reduction |
2x BU 755 GGL Manufacture: ZFRIED |
|
Auxiliary power |
2x MTU - 70 kW |
|
Bow thruster |
4x 100 bhp forward |
|
Loading capacity |
25,0 - 30,0 t |
|
A-frame |
Outboard: 3,00 m Inboard: 3,50 m Height over deck: 5,00 m Lift capacity: 6,0 t Lift winch: 0 - 6,0 t |
|
Fuel capacity |
22,5 m³ |
|
Client work areas |
Deck: aft deck open area 60,0 m² Garage: sheltered garage 30,0 m² Survey area: sheltered next to garage 20,0 m² |
|
Cable installation info |
Turn table: diameter 5,0 m - 25 t LCE: cable engine 3,0 t Crane: at aft deck 7,5 m - 1.800 kg Anchor: 4 point warp system - 4 anchors |
|
Accommodation |
Single cabins: 6 Double cabins: 8 Open mess & day room: 40,0 m² |
|
Crew |
14 |
|
Manager |
CT Offshore AS |
|
Previous manager |
1990 - 2007 Veolia Transport Nord AS, Region FFR |
|
Operator |
CT Offshore Denmark |
|
Owner |
CT Offshore AS |
|
Previous owners |
1990 - 2007 Veolia Transport Nord AS, Region FFR |
