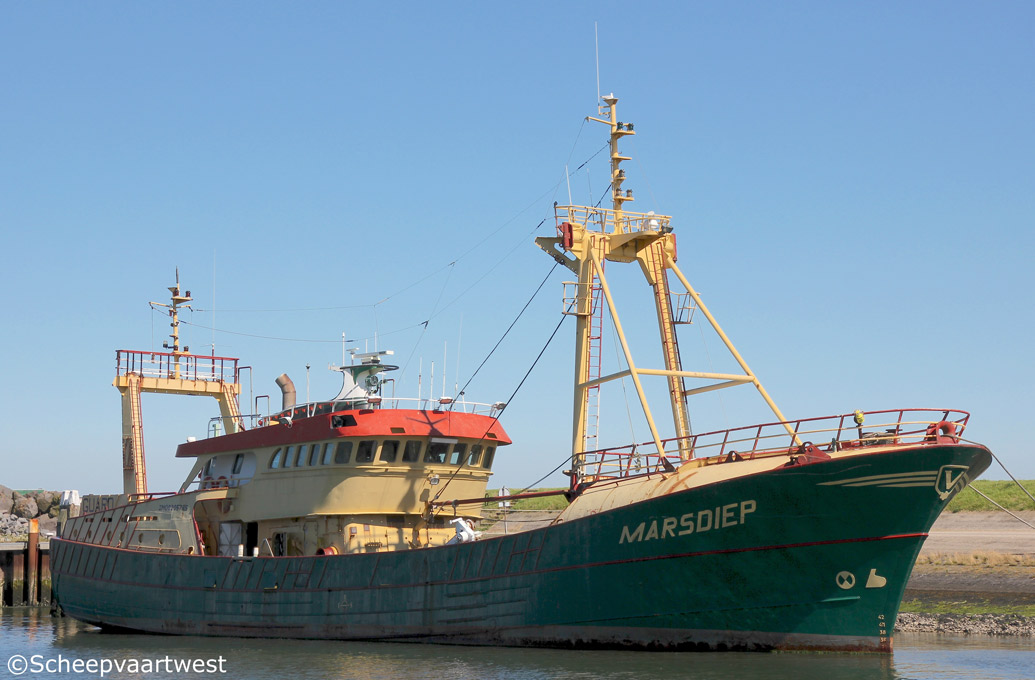

Marsdiep - IMO 8205785

Oudeschild - Texel 19 July 2016

Name

MARSDIEP

Previous names

1983 - 1993 LE.64 Hoop Op Zegen

1993 - 01.1999 UK.42 Pieternella

01.1999 - 09.2007 UK.143 Andries De Vries

Type

Utility vessel - Offshore and support vessel

IMO-number

8205785

Call sign

YJTB9

Flag

Vanuatu

Port of registry

Port Vila

Previous flags

The Netherlands

Republic of Panama - Call sign: HO4017

GT

485 t

NT

145 t

Length

42,02 m

Breadth

9,01 m

Draught

3,83 m

Depth

5,10 m

Speed

12,5 knots

Built

1983

Date of completion

03.1983

Builder casco

Stocznia Polnocna
Gdynia
Poland

Yard number: B276/4

Builder completion

Maaskant Shipyard BV
Stellendam
The Netherlands

Yard number: 404

Hull material

Steel

Continuous decks

1

Main engine

1x Deutz SBV9M682 - 4 stroke single acting 9 cylinder 240 x 280 mm diesel engine 1.471 kW at 900 rpm

Built: 1992

Builder: Klöckner Humboldt Deutz AG - Germany

Gearbox

1x Reintjes WAV 2660 - reduction 5,944 : 1

Propellers

1x fixed propeller- aft at 151 rpm

Diameter: 3.000 mm - 4 blades

Generators

2x Scania DS11 - 6 cylinder 127 x 145 mm diesel engine each 195 kW at 1.500 rpm coupled with generator Indar 280-M each 125 kVA

1x Sisu Valmet 411DG - 4 cylinder 108 x 120 mm diesel engine 40 kW at 1.500 rpm coupled with Indar 255-S generator 40 KVA

Compressed air receivers

2x Air receivers each 30,0 bar

Bow thruster

1x Jastram thruster

Tank capacities

Potable water: 73 m³

Fuel oil: 145 m³

Lub oil: 3

Navigation & communications

1x Magnetic Compass
1x Micro Technica Gyro Compass
1x Decca Bridgemaster CD 181/6 Radar
1x Decca Bridgemaster CD 252/6 Radar
1x Furuno GP70 GPS
1x Skipper 607 Echo Sounder
1x Sailor T 2031 Transmitter
1x Sailor R 2022 Receiver
1x Decca Speedlog
1x Rudder Indicator
1x Decca Autopilot
1x Sailor RT 2048 VHF
1x Sailor RT 2047 VHF
1x Furuno NX 500 Navtex
1x Magnavox MX 100 GPS
1x Decca BRX-3 DGPS
1x Sart
2x Handheld VHF

Owner

Evert Baijs
Oudeschild - Texel
The Netherlands

Previous names & owners

1983 - 1993 LE.64 Hoop Op Zegen - Hoop Op zegen BV (J. Toering), Lemmer - The Netherlands

1993 - 01.1999 UK.42 Pieternella - A. de Vries & Zn holding BV, Urk - The Netherlands

01.1999 - 09.2007 UK.143 Andries De Vries - Andries De Vries BV, Urk - The Netherlands

Latest data adjustment

10 August 2016
