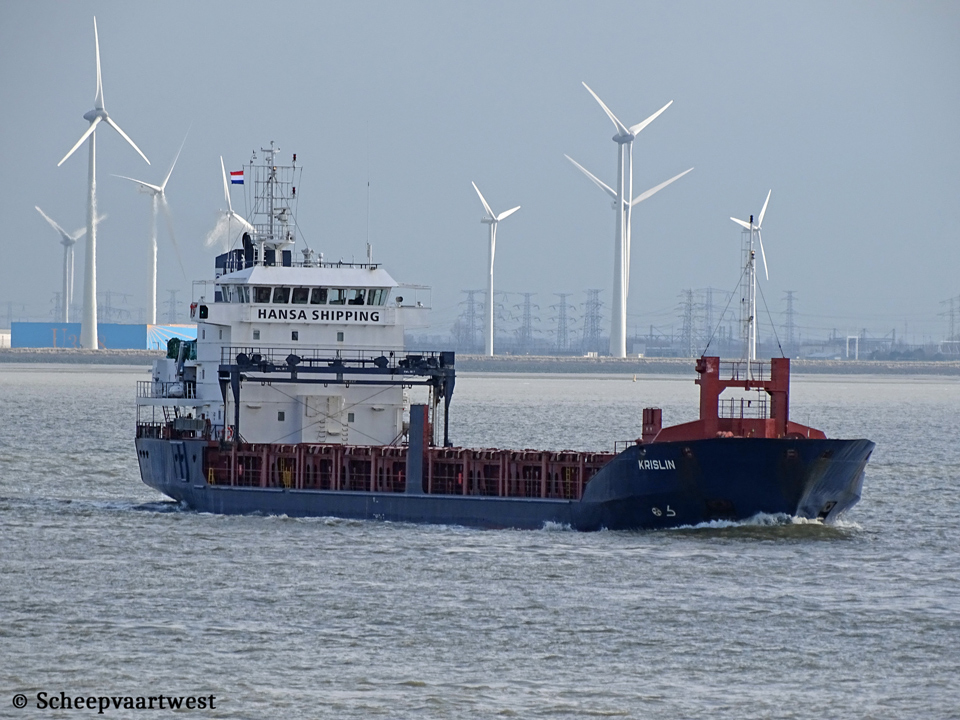

Westerschelde 14 February 2020 |
|
Name |
KRISLIN |
|
Previous names |
2005 - 2017 Anna |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9312377 |
|
Call sign |
9HA4440 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2005 - 2017 Antigua & Barbuda, St. John's - Call sign: V2CY3 |
|
GT |
3.618 t |
|
DWT |
5.164 t |
|
NT |
1.783 t |
|
Number of 20ft containers |
267 |
|
Length |
100,63 m overall 95,39 m registered |
|
Breadth |
15,20 m registered |
|
Draught |
5,88 m |
|
Depth |
7,30 m moulded |
|
Speed |
12,0 knots |
|
Built |
2005 |
|
Keel laid |
20/08/2004 |
|
Launch date |
08/03/2005 |
|
Date of completion |
04/05/2005 |
|
Builder |
Rousse Industry A.D. 5, Matei Stoikov Street 7000 Ruse Bulgaria |
|
Yard number |
871 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.400 kW / 3.263 hp at 750 rpm Year of manufacture: 2004 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 185 rpm |
|
Boilers |
1x Water heater, oil fired - 5,0 bar Heating surface: 13,0 m² Year of Manufacture: 2004 Manufacturer: A.C.V. Nederland B.V. Kaartenmakerstraat 5 2984 CB Ridderkerk The Netherlands 1x Water heater, exhaust gas heated - 6,0 bar Heating surface: 53,0 m² Year of Manufacture: 2004 Manufacturer: MP Rohrverformungstechnik GmbH Kirchstr. 15 57629 Norken Federal Republic of Germany |
|
Electric installations |
2x Plants each 380/220 V - 270 kVA 1x Plant 380 V - 550 kVA 1x Plant 380 V - 88 kVA 3x Plants each 24 V - 145 Ah 2x Plants each 24 V - 160 Ah |
|
Shaft generator |
1x 550 kVA |
|
Generators |
2x Main diesel generatorsets each 270 kVA |
|
Emergency generator |
1x Diesel generatorset 88 kVA |
|
Batteries |
2x Batteries for automation each 160 Ah |
|
Compressed air receivers |
2x Receivers each 250 litres - 30 bar 1x Receiver 125 litres - 30 bar 1x Receiver 30 litres - 30 bar 1x Receiver 10 litres - 30 bar |
|
Bow thruster |
1x Transverse thruster 220 kW, forward |
|
Number of holds |
2 Hold 1: 31,32 x 12,78 x 8,30 m Hold 2: 31,85 x 12,78 x 8,30 m |
|
Cargo hold capacity |
Grain: 6.570 m³ / 232.000 ft³ |
|
Number of hatches |
2 Hatch 1: 27,30 x 13,10 m Hatch 2: 31,85 x 13,10 m |
|
Anchor equipment |
3x Anchors weight each 2.460 kg Chain Length: 467,50 m |
|
Lifting equipment |
1x Gantry crane |
|
Crew |
9 |
|
Commerical manager |
Hansa Shipping OU Ahtri tn 12 10151 Tallinn Estonia |
|
ISM manager |
Hansa Ship Management OU Ahtri tn 12 10151 Tallinn Estonia |
|
Registered owner |
HS Krislin OU Care of Hansa Shipping OU Ahtri tn 12 10151 Tallinn Estonia |
|
Latest data adjustment |
16 October 2021 |
