Antwerpen 07 May 2014 |
 |
 |
 |
||

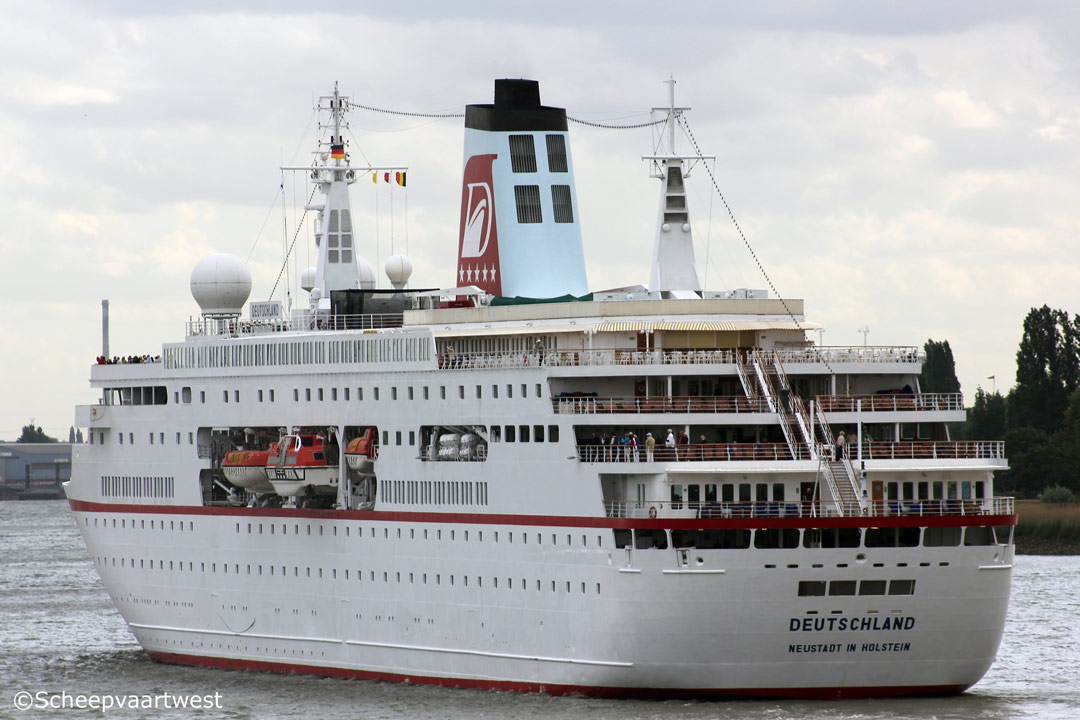

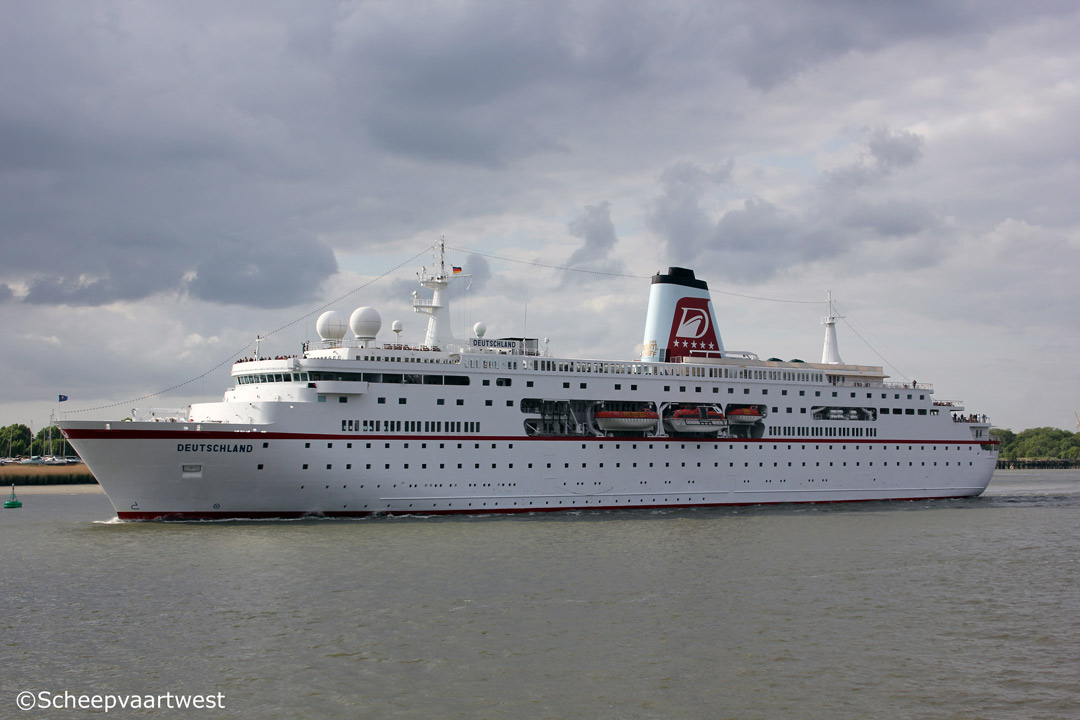

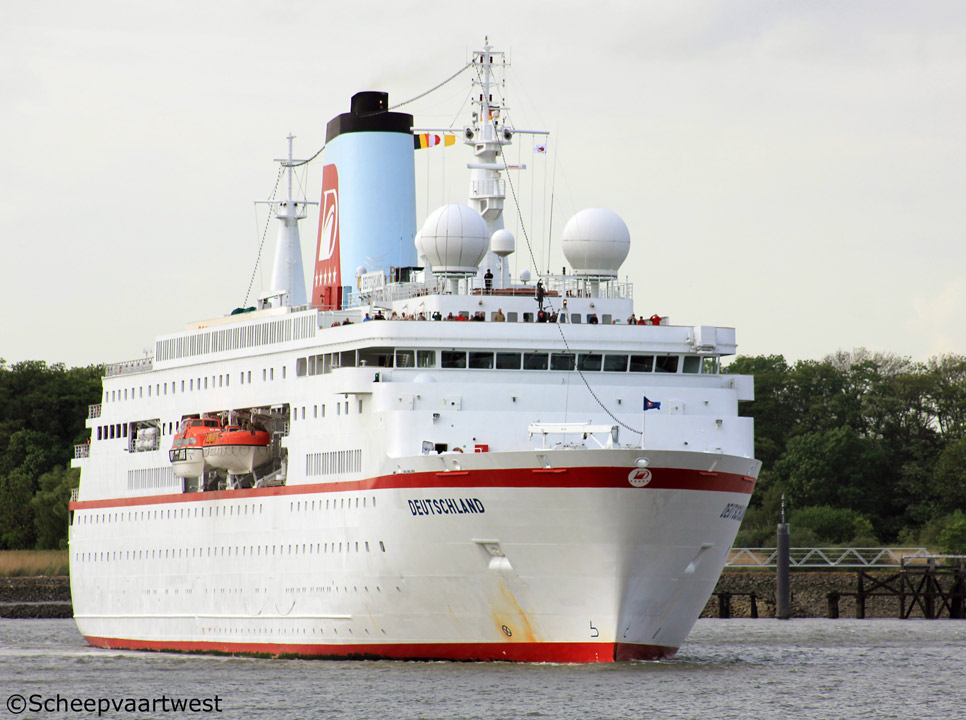

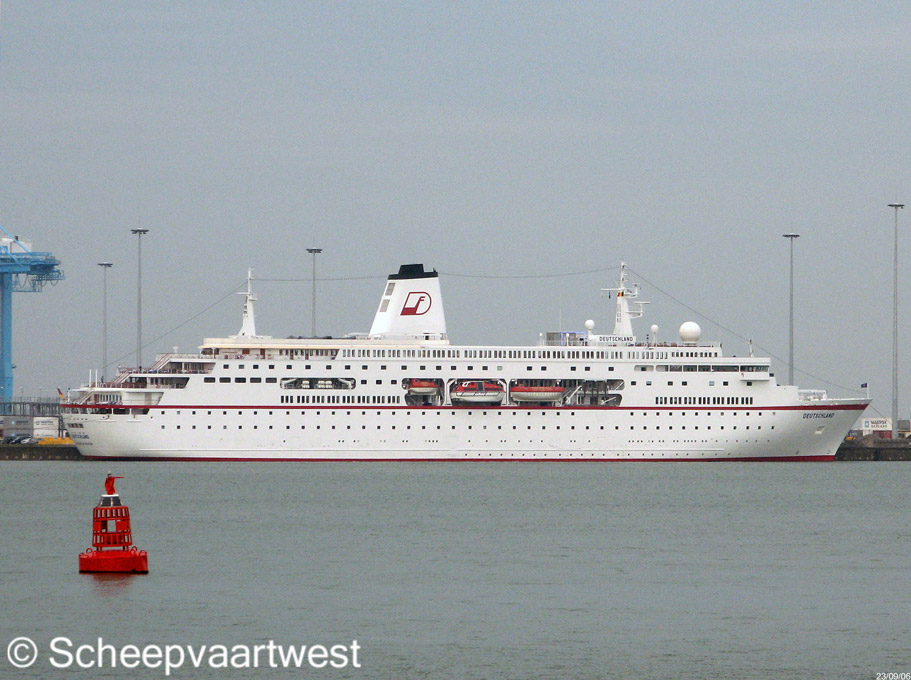

| Antwerpen 07/05/14 | Antwerpen 07/05/14 | Zeebrugge 23/09/06 |
|
Name |
DEUTSCHLAND |
|
Type |
Passengers ship / Cruise |
|
IMO-number |
9141807 |
|
Call sign |
DMMC |
|
Flag |
Germany |
|
Port of registry |
Neustadt (Holstein) |
|
GT |
22.496 t |
|
DWT |
3.460 t |
|
NT |
8.264 t |
|
Length |
175,49 m overall 155,80 m between perpendiculars 161,76 m registered |
|
Breadth |
23,00 m extreme |
|
Draught |
5,78 m |
|
Freeboard |
2.323 mm |
|
Depth |
16,20 m moulded |
|
Speed |
19,0 knots |
|
Built |
1998 |
|
Keel laid |
01.12.1996 |
|
Launch date |
16.01.1998 |
|
Date of completion |
01.05.1998 |
|
Builder |
HDW - Howaldtswerke-Deutsche Werft GmbH |
|
Yard number |
328 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
16 |
|
Continuous decks |
5 |
|
Main engines |
2x Krupp MAK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm diesel engine- each 3.520 kW at 600 rpm Year of manufacture: 1997 Manufacturer: Krupp Mak Maschinenbau GmbH Federal Republic of Germany |
|
Propellers |
2x Controllable pitch propeller - aft at 164 rpm |
|
Boilers |
2x Steam boiler, oil fired - 10,0 bar Heating surface: 124,0 m² 2x Steam boiler, exhaust gas heated - 11,0 bar Heating surface: 200,0 m² 2x Steam boiler, exhaust gas heated - 11,0 bar Heating surface: 270,0 m² Year of manufacture: 1997 Manufacturer: Howaldtswerke-Deutsche Werft GmbH |
|
Electric installations |
1x Plant 660/440 V - 3.600 kVA 1x Plant 660 V - 6.000 kVA 1x Plant 660 V - 325 kVA |
|
Shaft generators |
2x Each 3.000 kVA |
|
Generators |
2x Main diesel generatorsets each 1.800 kVA |
|
Emergency generator |
1x Diesel generatorset 325 kVA |
|
Compressed air receivers |
3x Receivers each 1.000 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster ULSTEIN - 1.000 kW, forward |
|
Tank capacities |
Fuel: 1.216 m³ Ballast water: 2.106,5 m³ |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Chain length: 577,50 m Diameter: 58 mm |
|
Cabins |
302 |
|
Passengers |
513 |
|
Total crew |
260 |
|
Manager |
Peter Deilmann Reederei GmbH & Co. KG |
|
Operators |
11.0501998 - 05.2015 Peter Deilmann Reederei, Neustadt - Germany 05.2005 Absolute Nevada LLC, Las Vegas, Nevada - USA |
|
Owner |
Schiffahrtsgesellschaft MS "DEUTSCHLAND" GmbH & Co. |
|
Special annotation |
Deadwood aft |
|
Renamed |
09.2015 - 01.05.2016 World Odyssey - Bahamas, Nassau - Call sign: C6BZ6 Owner: Absolute Nevada LLC Manager: V Ships Leisure SAM |
|
Latest data adjustment |
09 January 2017 |
