| Mallorca, Spain 19 September 2012 |
 |
 |
 |
 |
 |
 |
|||||

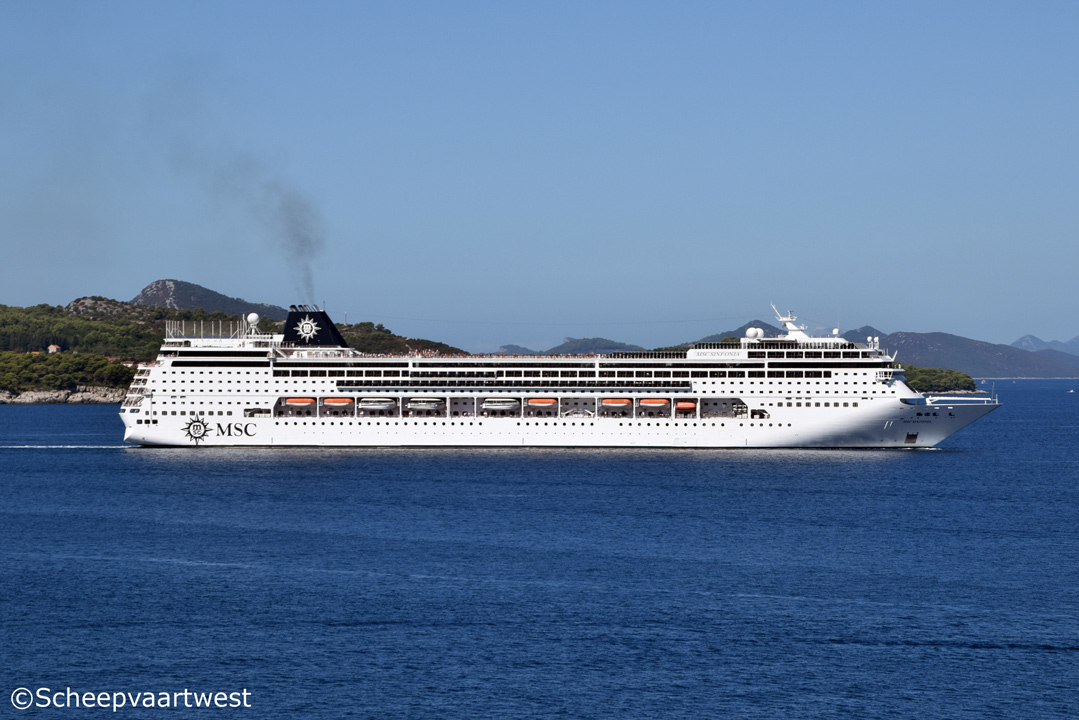

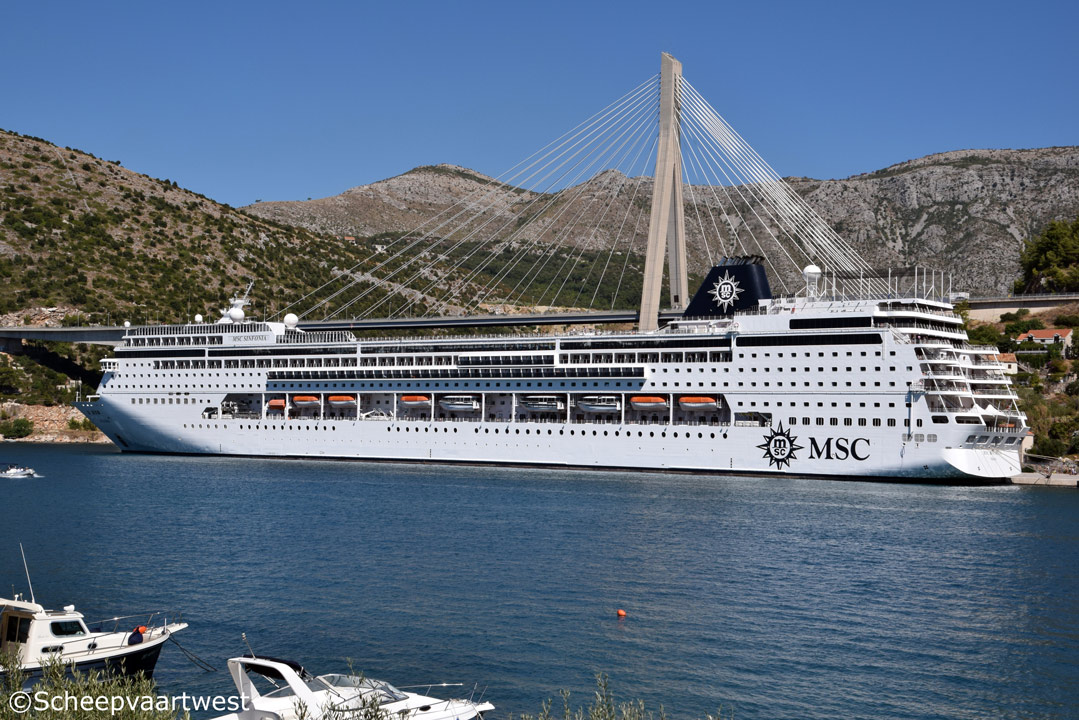

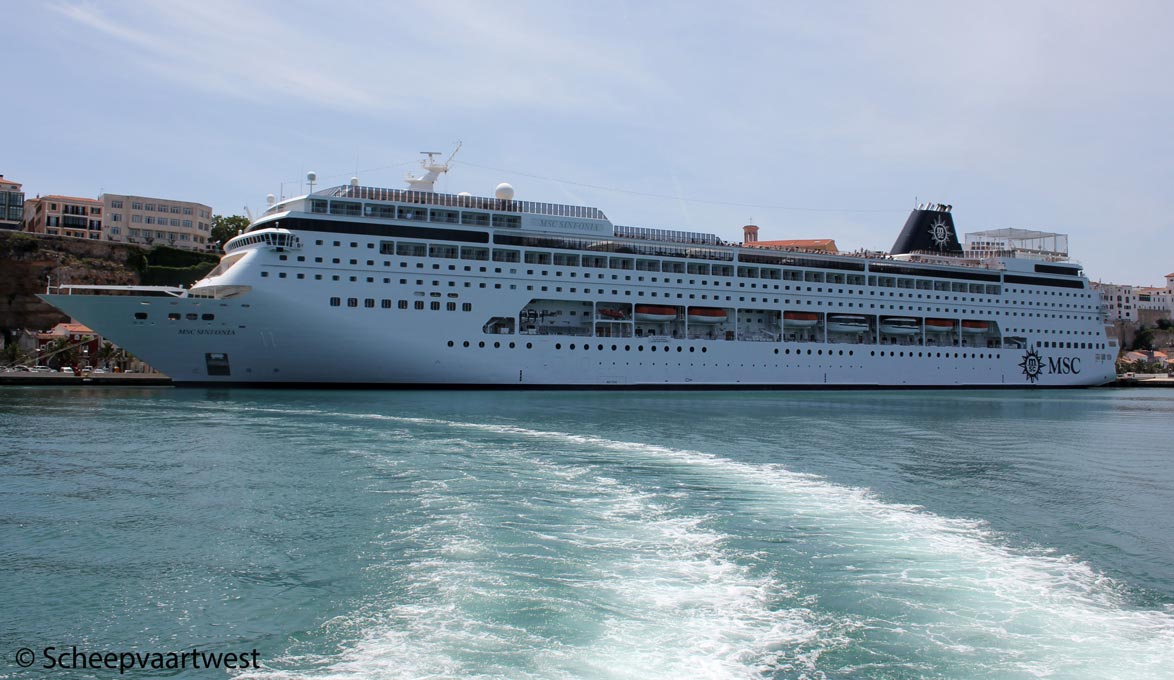

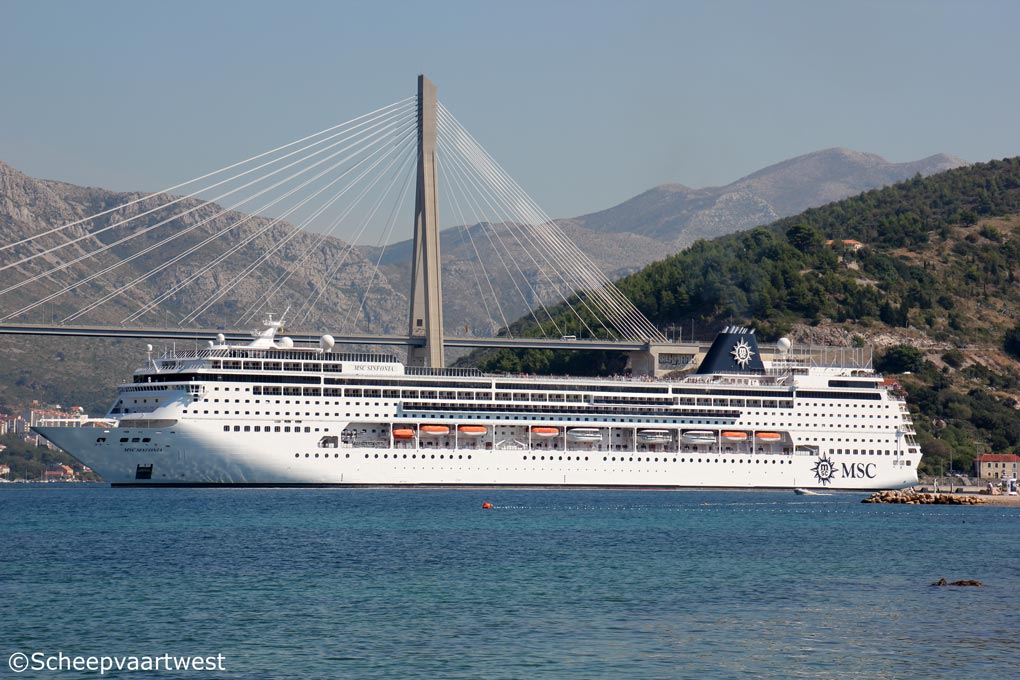

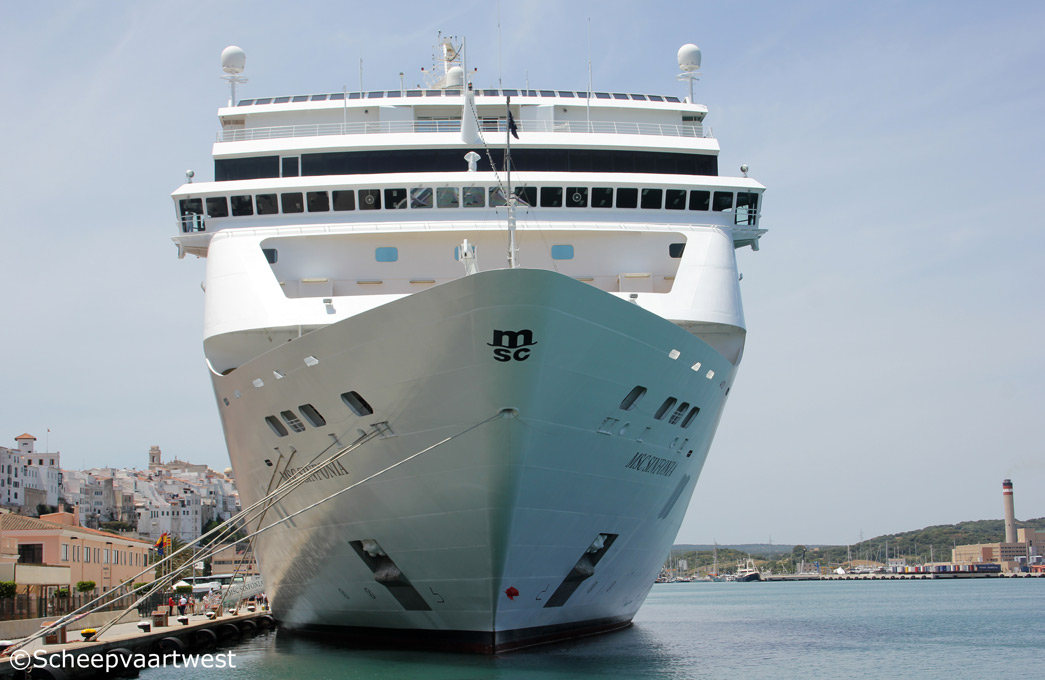

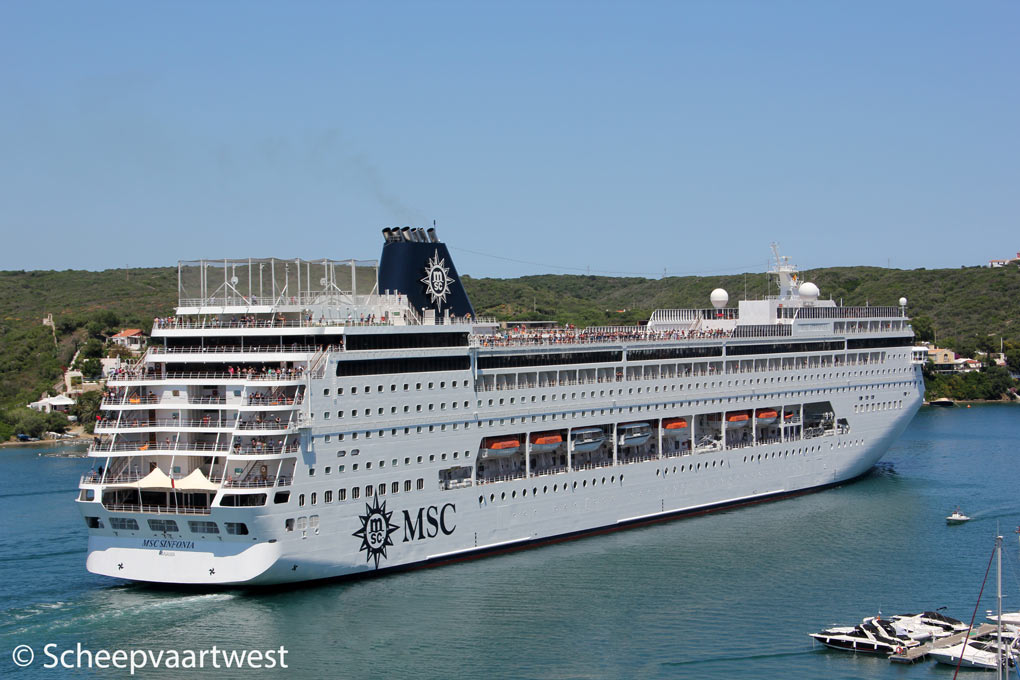

| Mahon, Menorca 07/06/13 | Mahon, Menorca 07/06/13 | Mahon, Menorca 07/06/13 | Mahon, Menorca 07/06/13 | Dubrovnik, Croatia 29/09/16 | Dubrovnik, Croatia 29/09/16 | |||||
 |
 |
|||||||||
| Dubrovnik, Croatia 14/09/17 | Dubrovnik, Croatia 14/09/17 | |||||||||
|
Name |
MSC SINFONIA |
|
Previous names |
2002 Launch as: European Stars 18.04.2002 - 07.2004 European Stars - Festival Cruises |
|
Type |
Passenger ship - Cruise |
|
IMO-number |
9210153 |
|
Call sign |
H8XH |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
04.2002 - 07.2004 - Italy, Genoa - Italy |
|
GT |
58.625 t After elongation: 65.542 t |
|
DWT |
6.949 t |
|
NT |
33.419 t After elongation: 41.682 t |
|
Length |
251,25 m overall After elongation: 274.90 m overall 222,25 m between perpendiculars After elongation: 245,90 m |
|
Breadth |
28,80 m |
|
Draught |
6,81 m |
|
Freeboard |
3.207 mm |
|
Depth |
12,90 m |
|
Speed |
20,8 knots |
|
Built |
2002 Refit: 2005 2015 Lengthened at shipyard Fincantieri, Palermo - Italy |
|
Launch date |
03.04.2001 |
|
Date of completion |
18.04.2002 |
|
Builder |
STX France SA (Chantiers de l'Atlantique) |
|
Yard number |
X31 |
|
Hull material |
Ordinary steel |
|
Hull type |
Single hull |
|
Watertight compartments |
19 |
|
Continuous decks |
14 |
|
Main engine driven gen. |
Diesel/electric: 4x Wärtsilä Type 12V38 - 12 cylinder 380 x 475 mm diesel engines each 7.920 kW total combined power 31.680 kW at 600 rpm |
|
Electrical propulsion engine |
2x Mermaid Kamewa electrical driven azimuth pods power each 10.000 kW at 170 rpm |
|
Propelling system |
2x Pod solid - at 170 rpm |
|
Boilers |
2x CHO Unex 85,00 m² - 11,0 bar |
|
Electric installation |
Power Voltage: 6.600 V Lighting Voltage: 220 V Frequency: 60 Hz |
|
Diesel generators |
1x Diesel generatorset 938 kVA - 750 kW - 1.094 hp |
|
Fuel capacity |
2.493,8 m³ |
|
Passenger capacity |
2.069 |
|
All berths |
2.680 |
|
Passenger decks |
10 |
|
Crew |
711 |
|
Operator |
MSC Cruises (Mediterranean Shipping Company) - Italy |
|
Previous operator |
18.04.2002 - 07.2004 Festival Cruises, Genoa - Italy |
|
Owner |
MSC Crociere S.p.a.- Italy part of the Swiss MSC-Container Lines one of the largest shipping company in the world |
|
Registered owner |
Newco Sinfonia SA. - Switszerland Subsidiary company of MSC Cruises S.p.a. - Italy |
|
Latest data adjustment |
14 November 2016 |
