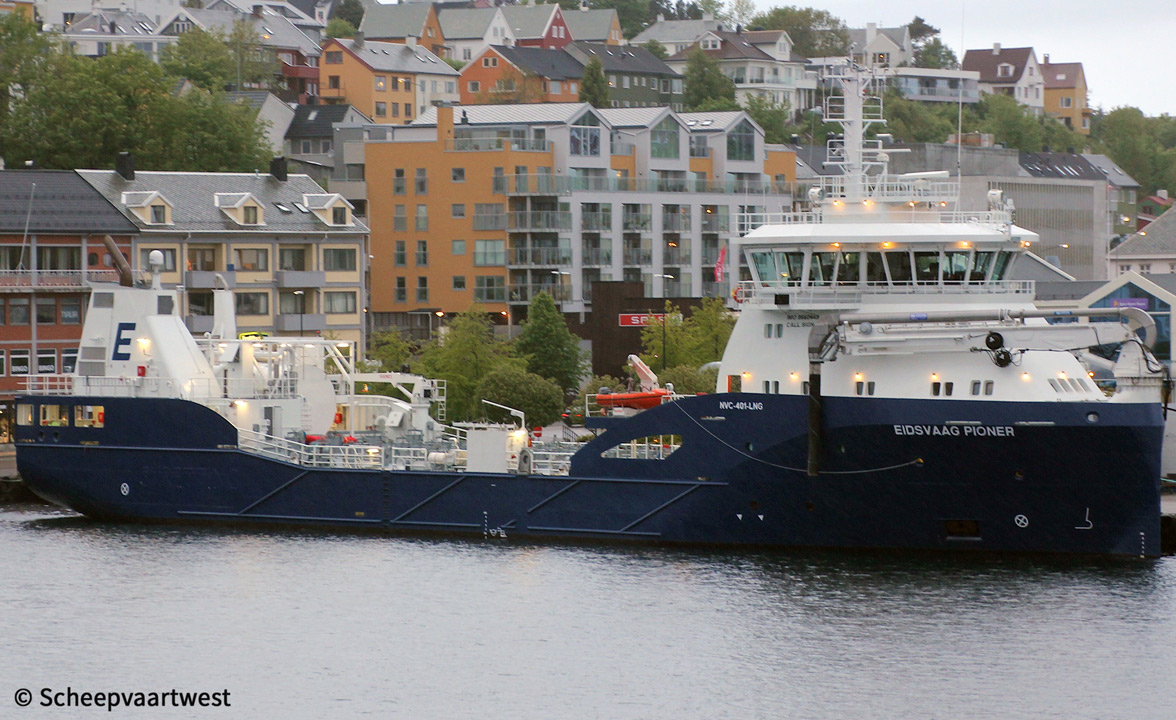

Kristiansund, Norway 30 May 2019 |
|
Name |
EIDSVAAG PIONER |
|
Type |
Multi-purpose carrier - Single deck |
|
IMO-number |
9660449 |
|
Call sign |
LFTA |
|
Flag |
Norway |
|
Port of registry |
Trondheim |
|
GT |
2.145 t |
|
DWT |
Summer: 1.467 t |
|
NT |
644 t |
|
Length |
74,70 m overall 72,90 m between perpendiculars |
|
Breadth |
13,60 m extreme |
|
Draught |
5,10 m |
|
Depth |
7,90 m |
|
Speed |
15,0 knots laden |
|
Built |
2013 |
|
Keel laid |
11/07/2012 |
|
Launch date |
28/12/2012 |
|
Date of completion |
28/05/2013 |
|
Builder casco |
STX OSV Tulcea S.A |
|
Builder completion |
Vard Group AS avd Aukra |
|
Yard number |
768 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
1x Bergen C26:33L-9 - LNG powered combustion engine 2.430 kW |
|
Propellers |
1x Controllable pitch propeller - Diameter 3.200 mm |
|
Shaft generator |
1x Marelli 1.100 kW |
|
Generators |
2x Nogva Scania DI16 main diesel generatorsets each 469 kW Manufacturer: Scania CV AB, Industrial & Marine Engines |
|
Emergency generator |
1x Nogva John Deere 6068TFM50 diesel generatorset |
|
Bow thruster |
1x Kongsberg TT 1300 FP - 540 kW forward 1x Kongsberg TT 1300 FP - 540 kW aft |
|
Load capacity |
2.030 m³ |
|
Tank capacities |
LNG: 110 m³ Diesel oil: 35 m³ Gas oil: 27 m³ Fresh water: 30 m³ Ballast:938 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
|
Manager |
Eidsvaag AS |
|
Registered owner |
Eidsvaag AS |
|
Latest data adjustment |
25 July 2019 |
