Antwerpen 28 September 2019 |
|
Name |

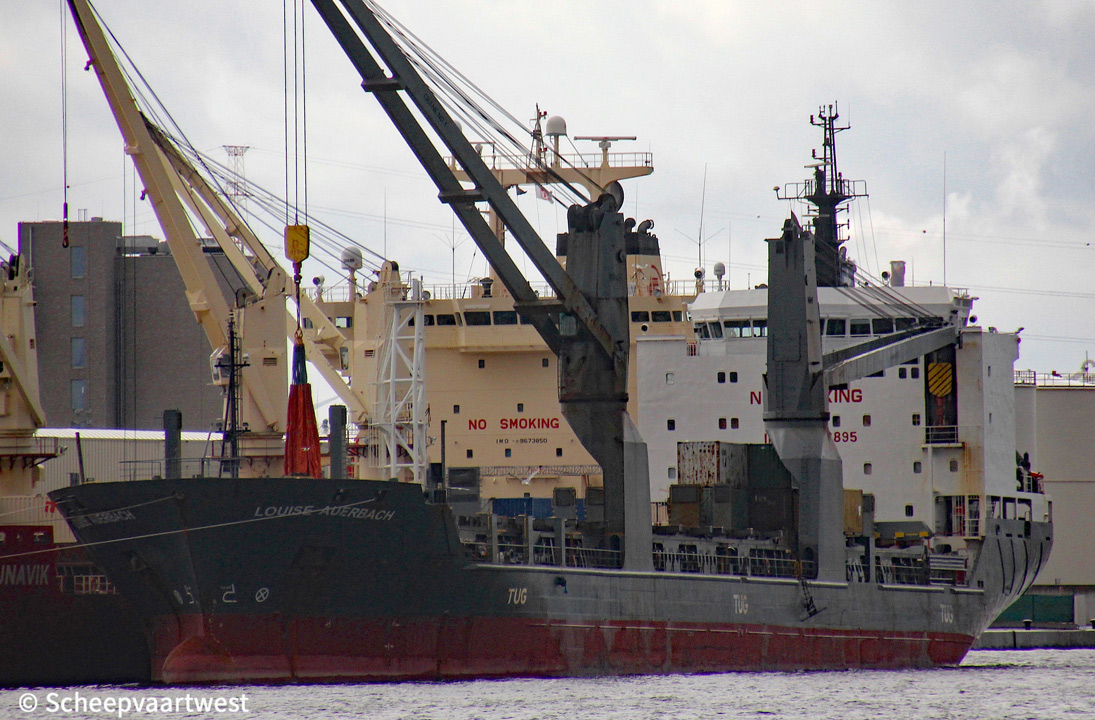

LOUISE AUERBACH |
|
Previous names |
2007 - 03/2011 Beluga Fanfare 03/2011 - 2017 Fanfare |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9388895 |
|
Call sign |
D5SN9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2007 - 2017 Antigua & Barbuda, St. John’s - Call sign: V2CO8 |
|
GT |
9.611 t |
|
DWT |
Summer: 12.651,6 t |
|
NT |
4.260 t |
|
Number of 20ft containers |
On deck: 331 In hold: 334 Total: 665 |
|
Container capacity 14t |
528 |
|
Reefer plugs |
50 on deck |
|
Length |
138,07 m overall 130,00 m between perpendiculars |
|
Breadth |
21,37 m extreme 21,00 m moulded |
|
Draught |
Max: 8,00 m |
|
Height above keel |
40,09 m |
|
Freeboard |
3.500 mm |
|
Depth |
11,00 m to main deck |
|
Speed |
Laden: 14,0 knots Max: 15,0 knots |
|
Built |
2007 |
|
Keel laid |
29/12/2004 |
|
Launch date |
18/07/2007 |
|
Delivery date |
20/12/2007 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard China |
|
Yard number |
QS2004 0308 |
|
Hull material |
Steel |
|
Main engine |
1x MAK 6M43C - 4 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW at 500 rpm Manufacturer: Caterpillar Motoren |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
700 kW |
|
Generators |
3x MAN D2840 LE301 main diesel generatorsets each 395 kW |
|
Emergency generator |
1x MAN D2866 E diesel generatorset 99 kW |
|
Bow thruster |
500 kW |
|
Number of cargo holds |
3 Hold 1: 18,75 x 15,01 x 10,53 m Hold 2: 42,00 x 17,50 x 11,18 m Hold 3: 25,50 x 17,50 x 10,77 m |
|
Cargo hold capacity |
Grain: 20.898 m³ Bale: 19.311 m³ |
|
Hatch type |
Automatic folding-type |
|
Hold ventilation |
Mechanical hold ventilation |
|
Floor space |
Under deck: 2.810 m² / 30.247 ft² On deck: 1.480 m² / 15.931 ft² |
|
Max permitted loads |
Tanktop: 16,0 t/m² Tweendeck hold 1: 2,5 t/m² Tweendeck hold 2-3: 4,0 t/m² Hatch covers: 1,75 t/m² |
|
Tank capacities |
Ballast: 5.003,9 m³ Fuel oil: 871 m³ MDO: 260 m³ Fresh water: 128 m³ |
|
Anchor equipment |
Length: 545,34 m Diameter: 52 mm |
|
Cargo gear |
1x NMF DK II port-side mounted deck cranes - SWL 150 t each Combinable up to 300 t Outreach: 4,00 to 33,00 m |
|
Manager |
Auerbach Bereederung GmbH & Co. KG Deichstraße 48 20459 Hamburg Germany |
|
Registered owner |
Auerbach Schiff 6 GmbH & Co KG |
|
Latest data adjustment |
17 March 2020 |
