Westerschelde 19 June 2015 |
|
Name |

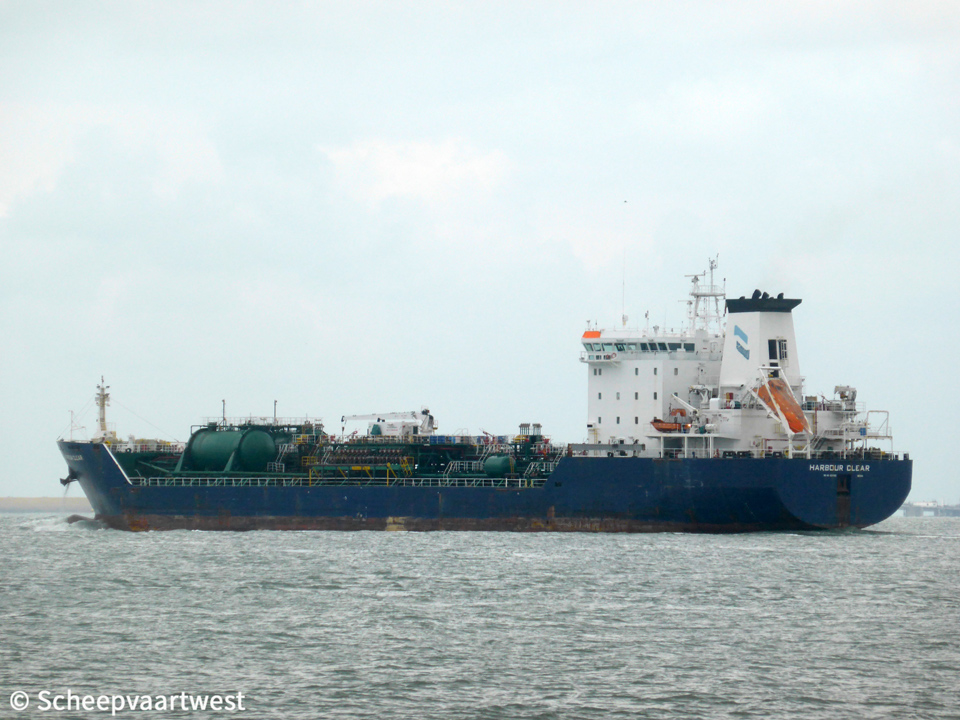

HARBOUR CLEAR |
|
Previous names |
2001 - 04/2004 Jo Chiara D 04/2004 - 01/2006 Chiara DP 01/2006 - 04/2009 Nora 04/2009 - 2015 Harbour Clear |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9230012 |
|
Call sign |
C6XV2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
11.320 t |
|
DWT |
Summer: 16.225 t |
|
NT |
4.961 t |
|
Length |
138,11 m overall 126,50 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
9,10 m |
|
Depth |
12,27 m |
|
Speed |
14,0 knots |
|
Built |
2001 |
|
Keel laid |
29/09/2000 |
|
Date of completion |
27/06/2001 |
|
Builder |
Cantiere Navale De Poli Spa. Pellestrina Italy |
|
Yard number |
186 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Wärtsilä SACM 6L46C - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 6.300 kW / 8.560 bhp at 500 rpm Builder: Wärtsilä Italia SPA, Venezia - Italy |
|
Propellers |
1x Screw propeller controllable pitch - 112,0 rpm |
|
Boilers |
2x CHO Babcocl Wanson - 6,0 bar 1x CHR Babcocl Wanson - 6,0 bar |
|
Shaft generator |
1x 2.000 kVA - 1.600 kW |
|
Generators |
3x Main diesel generatorsets each 1.219 kVA - 975 kW - 1.325 hp |
|
Emergency generator |
1x Diesel generatorset 291 kVA - 233 kW - 416 hp |
|
Bow thruster |
1x 600 kW |
|
Number of cargo tanks |
19 |
|
Cargo tank capacity |
100%: 17.227 m³ 98%: 16.846,4 m³ |
|
Cargo handling |
12x Hydraulic motor driven Framo pumps each 300 m³/h 7x Hydraulic motor driven Framo pumps each 200 m³/h 1x Emergency portable pump 80 m³/h |
|
Tank capacities |
Fuel oil: 1.261,8 m³ |
|
Crew size |
24 persons |
|
Manager |
Nordic Tankers Marine A/S Harbour House, Sundkrogsgade 21 2100 Copenhagen O Denmark |
|
Renamed |
2015 Njord Clear Bahamas, Nassau - Call sign: C6XV2 Manager: Fleet Management (Hong Kong) Ltd. Owner: Harbour Clear Ltd. |
|
Latest data adjustment |
25 May 2020 |
