Antwerpen 23 July 2019 |
|
Name |

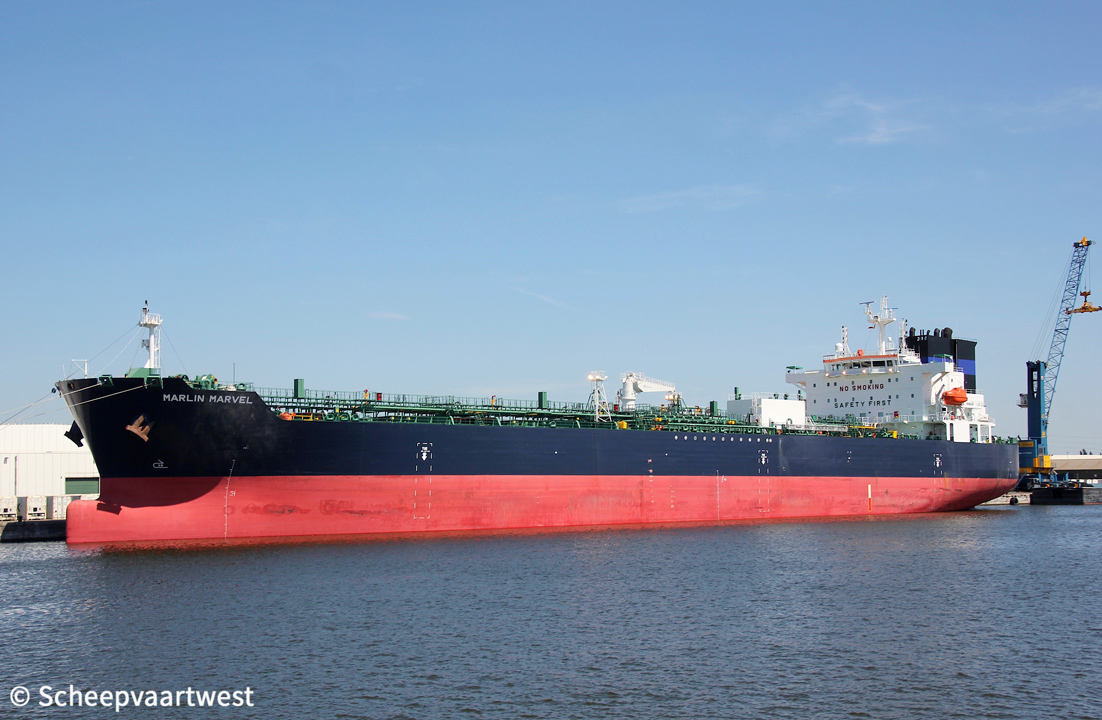

MARLIN MARVEL |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9829473 |
|
Call sign |
9V9318 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
29.991 t registered Suez: 32.003,95 t |
|
DWT |
47.499 t |
|
NT |
12.836 t registered Panama: 24.793 t Suez: 27.981,51 t |
|
Displacement |
58.085 t |
|
Length |
183,00 m overall 175,15 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Max: 12,81 m |
|
Freeboard |
6.315 mm |
|
Depth |
19,10 m moulded |
|
Speed |
14,5 knots |
|
Built |
2019 |
|
Keel laid |
24/08/2018 |
|
Launch date |
11/11/2018 |
|
Delivery date |
05/03/2019 |
|
Builder |
Hyundai Vinashin Shipyard Co., Ltd. #1 My Giang Ninh Phuoc Ninh Hoa Khanh Hoa Vietnam |
|
Yard number |
S450 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 6G50ME-C9.5-HPSCR - 6 cylinder 500 x 2.500 mm combustion engine 7.180 kW at 86,9 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Auxiliary boiler Aalborg OL - 8,82 bar 1x Composite boiler Aalborg OC-TCi - 8,82 bar Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: HHI electro electric system |
|
Cargo oil tank capacity |
54.112,4 m³ |
|
Tank capacities |
Fuel oil: 1.335,5 m³ Hydraulic oil: 17,9 m³ Fresh water: 376,8 m³ Lube oil: 120,8 m³ Ballast: 21.963,8 m³ Diesel oil: 3638 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co. |
|
Crew size |
25 |
|
Operator |
Scorpio Marine Management India Pvt Ltd. 101, Central Ave, Marg, Hiranandani Gardens, Sainath Nagar, Powai Mumbai, Maharashtra 400076 India |
|
Registered owner |
Xiang T11 SG International Ship Lease Pte. Limited |
|
Renamed |
02/2020 STI Marvel Republic of Singapore, Singapore City - Call sign: 9V9318 Owner: Xiang T11 SG International Ship Lease Pte. Limited Operator: Scorpio Marine Management India Pvt Ltd. |
|
Latest data adjustment |
26 May 2020 |
