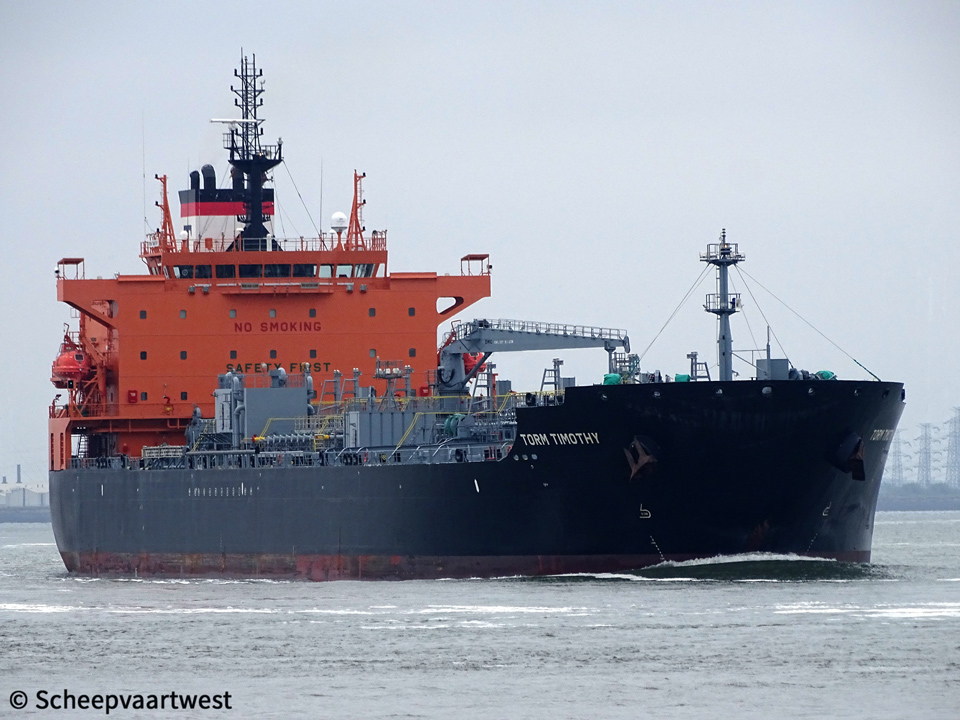

Torm Timothy 01

Westerschelde 19 May 2018

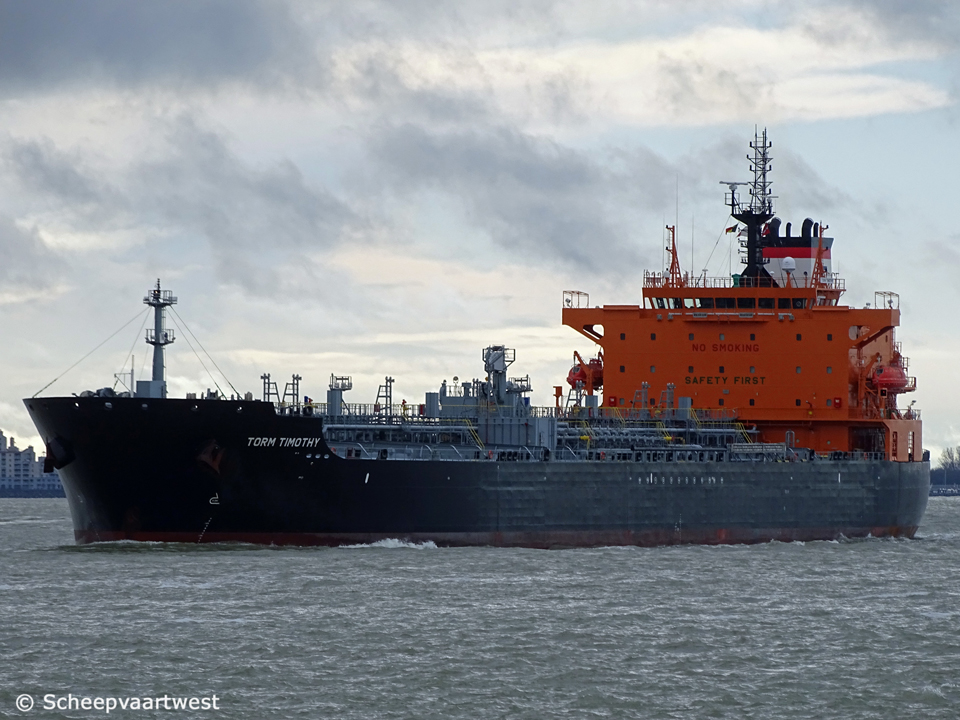

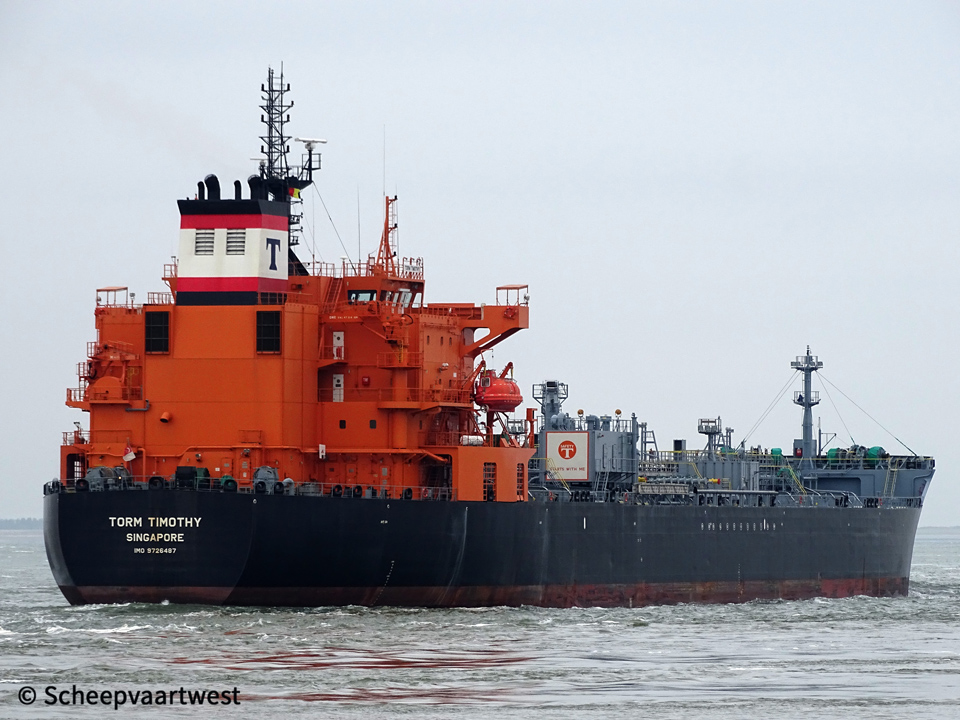

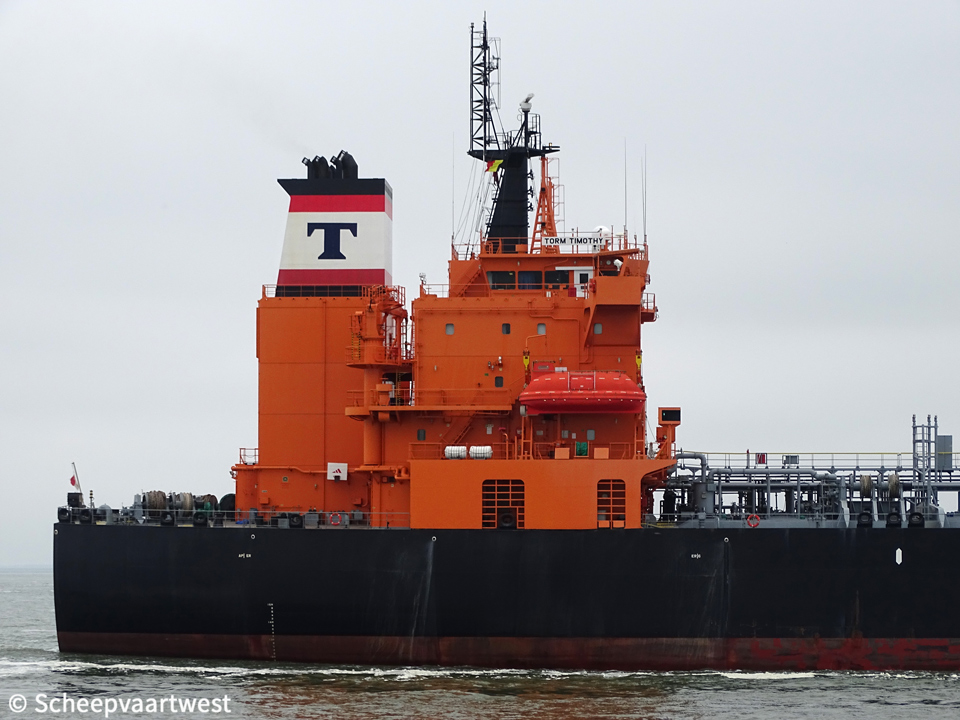

Torm Timothy 03   Torm Timothy 02   Torm Timothy IMO 9726487 04
Westerschelde 19/05/18 Westerschelde 19/05/18   Westerschelde 28/02/17


Name

TORM TIMOTHY

Type

Chemical and oil product tanker

IMO-number

9726487

Call sign

KTTE

Flag

United States of America

Port of registry

Wilmington, DE

Previous flag

2015 -2020 Republic of Singapore, Singapore City - Call sign: 9V3569

2020 - 2023 Denmark, Copenhagen - Call sign: OZTX2

GT

29.609

Suez: 31.182,11

DWT

49.666,7 t

NT

13.788

Suez: 26.793,96

Panama: 24.672

Displacement

60.492,1 t

Length

183,00 m overall

174,00 m between perpendiculars

Breadth

32,24 m extreme

Draught

Max: 13,32 m

Freeboard

Summer: 5.814 mm

Depth

19,10 m moulded

Speed

Max: 14,5 knots

Built

2015

Keel laid

13/03/2015

Delivery date

05/11/2015

Builder

Sungdong Shipbuilding and Marine Engineering

1609-2, Hwang-Li, Gwangdo-Myeon Tongyoung-Si, Gyeongsangnam-Do

South Korea

Yard number

3092

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W/STX 6G50ME-B9.3 - 2 stroke 6 cylinder combustion engine Mcr 7.317 kW at 88,6 rpm

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Auxiliary boiler - 7,85 MPa

1x Composite boiler - 7,85 MPa

Manufacturer: Kang Rim Heavy Ind. Co., Ltd.

Generators

3x Main diesel generatorsets each 800 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12

Cargo tanks capacity 100%

52.799,70 m³

Tank capacities

Ballast: 22.379,80 m³

Hydraulic oil: 22,50 m³

Fresh water: 510,60 m³

Fuel oil: 1.229,60 m³

Lub oil: 122,60 m³

Diesel oil: 334,00 m³

Crew

30

Operator

Torm A/S

Tuborg Havnevej 18

Hellerup

Denmark

Registered owner

Torm Tanker Corporation

Latest data adjustment

18 November 2024
