Westerschelde 05 October 2015 |
|
Name |

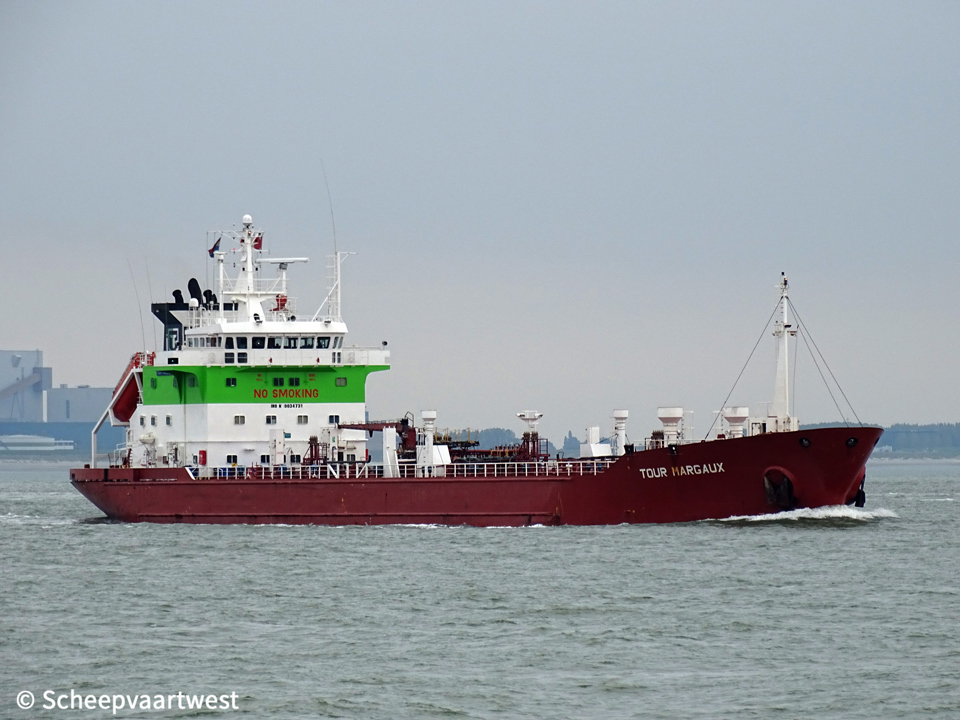

TOUR MARGAUX |
|
Type |
Oil & Chemical tanker |
|
IMO-number |
9034731 |
|
Call sign |
9HBW8 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
5.499 t |
|
DWT |
Summer: 8.674 t |
|
NT |
2.474 t |
|
Length |
113,63 m overall 107,43 m between perpendiculars |
|
Breadth |
17,70 m extreme |
|
Draught |
Max: 8,01 m |
|
Freeboard |
Summer: 2.913 mm |
|
Depth |
11,20 m moulded |
|
Speed |
Max: 14,0 knots |
|
Built |
1993 |
|
Keel laid |
01/12/1991 |
|
Date of completion |
09/02/1993 |
|
Builder |
Yvc IJsselwerf B.V. Capelle a/d IJssel The Netherlands |
|
Yard number |
257 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
15 |
|
Number of decks |
5 |
|
Main engine |
1x Bergen Diesel BD-32 M9 (BRM 9) - combustion engine 3.640 kW / 4.950 bhp at 750 rpm Build: 1992 Manufacturer: Bergens Mekaniske Verksteds AS, Ulstein |
|
Propellers |
1 |
|
Boilers |
2x Thermal oil plant boiler - 10,0 bat Heating Surface: 77 m² Manufacturer: Konus Kessel 1x Exhaust boiler - 10,0 bar Heating Surface: 117 m² Manufacturer: Gekakonus |
|
Shaft generator |
1x Leroy Somer LSA 50 L6 generator 625 kVA |
|
Generators |
2x Mitsubishi S6R-MPTA main diesel engines connected Leroy Somer LSA 49 L9b generators each 565 kVA at 1.500 rpm |
|
Emergency generator |
1x Mitsubishi S6R-MPTA diesel engine connected Leroy Somer LSA 465 generator each 258 kVA kVA at 1.500 rpm |
|
Bow thruster |
1x Lips controllable pitch thruster 405 kW |
|
Number of tanks |
11x Tanks stainless steel Avesta 20x Tanks epoxy phenguard coated |
|
Tank capacity 98% |
9.516 m³ |
|
Pomps |
11x Cargo pumps each 150 m³/h 2x Cargo pumps each 200 m³/h |
|
Anchor equipment |
2x Anchor weight: 2.295 kg Cable length: 795,00 m Diameter: 44 mm |
|
Crew size |
15 |
|
Renamed |
07/2017 Kapidag Turkey, Istanbul - Call sign: TCA5714 Owner: Hicri Ercili Denizcilik AS Manager: Hicri Ercili Denizcilik Anonim Şirketi |
|
Latest data adjustment |
06 August 2020 |
