Westerschelde 06 November 2016 |
|
Name |

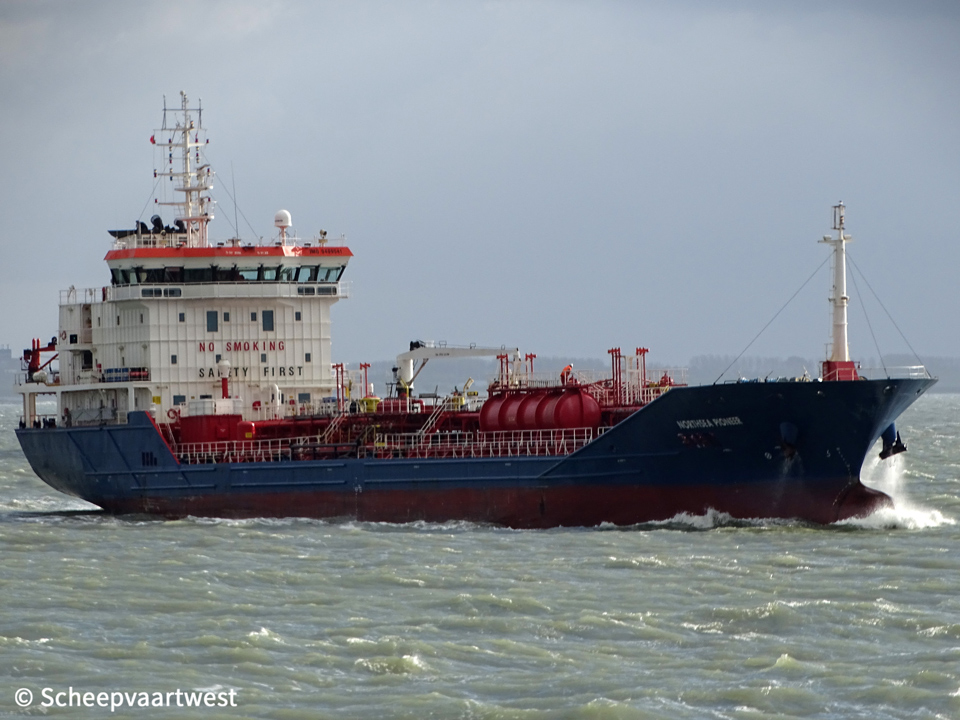

NORTHSEA PIONEER |
|
Previous names |
2009 - 02/2015 Ahmet Cihan |
|
Type |
Oil and chemical tanker |
|
IMO-number |
9499541 |
|
Call sign |
9HA3784 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2009 - 2015 Turkey - Call sign: TCTO6 |
|
GT |
4.369 t |
|
DWT |
Summer: 6.267,2 t Winter: 6.050,1 t |
|
NT |
2.039 t |
|
Displacement |
8.896,2 t |
|
Light ship |
2.629,2 t |
|
Length |
121,62 m overall 112,31 m between perpendiculars |
|
Breadth |
16,00 m extreme |
|
Draught |
Summer: 6,32 m |
|
Keel to masthead |
33,30 m |
|
Air draft |
28,10 m light ship |
|
Freeboard |
Summer:1.680 mm Winter: 1.818 mm |
|
Depth |
8,00 m moulded |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Date of completion |
20/04/2009 |
|
Builder |
Sahin Celik Shipyard Istanbul Turkey |
|
Yard number |
46 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm Built: 10/09/2008 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
2x CHO S-MAN AB 50,70 m² - 10,0 bar 1x CHR S-MAN AB 58,00 m² - 10,0 bar |
|
Shaft generator |
1x 1.000 kVA / 800 kW |
|
Generators |
3x Caterpillar C18 - 4 stroke 6 cylinder 145 x 183 mm diesel generatorsets each 581 kVA - 465 kW - 632 hp at 1.800 rpm |
|
Bow thruster |
1x 350 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
1P: 445 m³ 1S: 447 m³ 2P: 585 m³ 2S: 579 m³ 3P: 655 m³ 3S: 655 m³ 4P: 656 m³ 4S: 656 m³ 5P: 655 m³ 5S: 655 m³ 6P: 535 m³ 6S: 537 m³ |
|
Segregations with double valve separation |
12 |
|
Number of slop tanks 98% |
2 Slop 1: 70 m³ Slop 2: 70 m³ |
|
Total tank capacity 98% |
7.200 m³ |
|
Number of pumps |
12x Centrifugal cargo pumps 200 m³/h 2x Centrifugal cargo pumps 100 m³/h 1x Centrifugal cargo pumps 70 m³/h 2x Centrifugal ballast pumps 350 m³/h |
|
Manifolds |
Distance bow to centre of manifold: 66,62 m Stern to centre manifold: 55,00 m Distance deck to centre of manifold: 33,00 m Distance manifold to rail: 3,80 m Distance bridge front centre of manifold: 37,00 m |
|
Tank capacities |
Fuel: 329,72 m³ |
|
Lifting equipment |
1x Deck crane - SWL 5,0 t outreach 7,00 m |
|
Manager |
North Sea Tankers B.V. Rotterdam The Netherlands |
|
Owner |
Metmar Denizcilik Ticari ve Teknik Hizmetler San Ltd. Sti. Turkey |
|
Renamed |
2019 Ipek S Malta, Valletta - Call sign: 9HA3784 Owner: Unimar Denizcilik Rom. Hizmt. San. Ve Tic. A.S. Operator: Swan Tanker Denizcilik Ticari Ve Teknik Hizmetler |
|
Latest data adjustment |
13 August 2020 |
