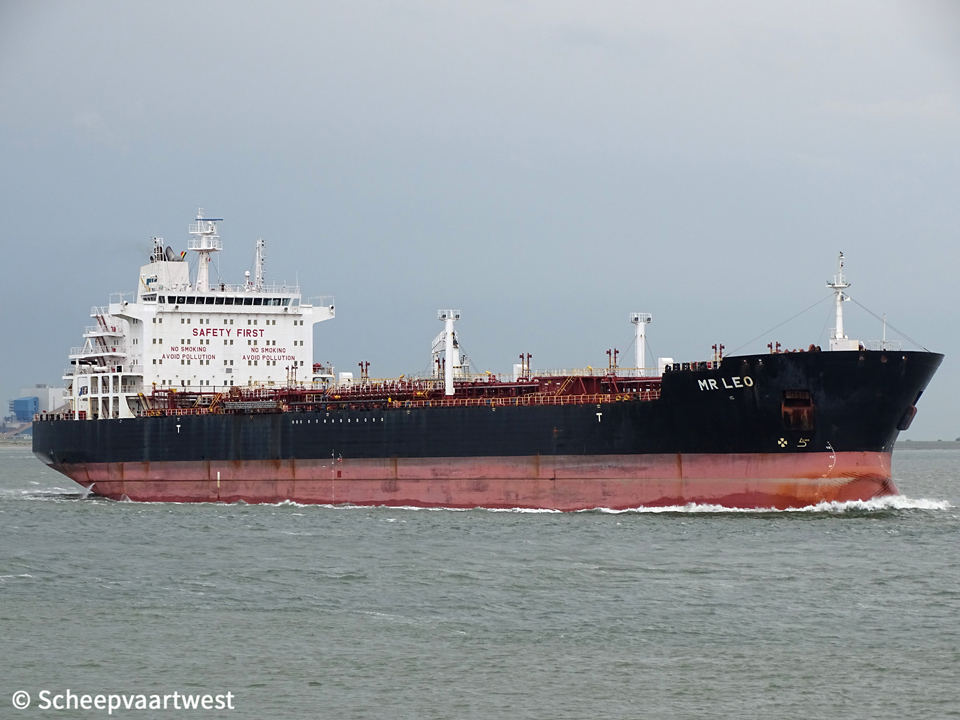

Westerschelde 12 August 2019 |
|
Name |
MR LEO |
|
Previous names |
Build as: Meriom Iris 2008 - 01/2014 Marlin Iris |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9442720 |
|
Call sign |
V7ML2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
30.345 t Suez: 31.532,26 t |
|
DWT |
Summer: 50.352 t |
|
NT |
14.609 t Panama: 25.182 t Suez: 28.284,69 t |
|
Displacement |
62.174 t |
|
Length |
183,20 m overall 176,00 m between perpendiculars |
|
Breadth |
32,00 m moulded |
|
Draught |
Max: 9,79 m |
|
Freeboard |
Summer: 5.612 mm |
|
Depth |
18,20 m moulded |
|
Speed |
Max: 14,8 knots |
|
Built |
2008 |
|
Keel laid |
15/02/2008 |
|
Launch date |
22/05/2008 |
|
Delivery date |
19/09/2008 |
|
Builder |
CSSC Offshore And Marine Engineering (Group) Company Limited No. 40 Fang Cun Road, South Guangzhou Guangzhou, 510382 China |
|
Yard number |
06130047 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Dalian 6S50MCC - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm Manufacturer: Dalian Marine Diesel Works Co.Ltd.(B&W), Dalian - China |
|
Propellers |
1x Fixed propeller Manufacturer: Panyu Yuanhang propellers Manufacturing Co., Ltd. |
|
Boilers |
1x Exhaust gas boiler - 9 MPA 1x Fired boiler - 9 MPA Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 910 kW Manufacturer: Zhenjiang Marine Diesel Works |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
58.344,81 m³ |
|
Tank capacities |
Diesel oil: 237,33 m³ Ballast: 22.491,11 m³ Fresh water: 619,56 m³ Lub oil: 128,18 m³ Fuel oil: 1.979,01 m³ |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision overhead travelling crane - SWL 4,0 t Manufacturer: South china Marine Co., Ltd. 1x Engine room overhead travelling crane - SWL 3,0 t Manufacturer: Danish Crane Building A/S |
|
Operator |
Empire Navigation Inc. Leof. Vouliagmenis 88 Elliniko 167 77 Greece |
|
Registered owner |
MR Leo Ltd. |
|
Latest data adjustment |
16 August 2020 |
