Westerschelde 03 July 2020 |
|
Name |

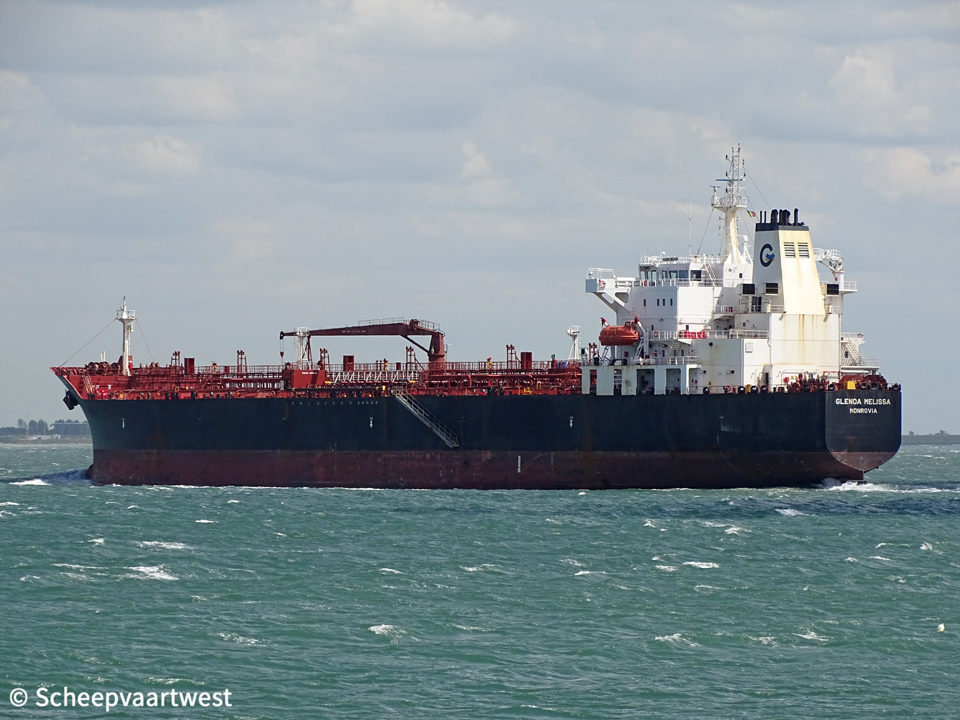

GLENDA MELISSA |
|
Type |
Oil tanker/Chemical tanker |
|
IMO-number |
9494682 |
|
Call sign |
A8XY9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
29.130 t |
|
DWT |
Summer: 47.203 t |
|
NT |
12.471 t |
|
Displacement |
57.392 t |
|
Length |
183,17 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 12,43 m |
|
Freeboard |
6.403 mm |
|
Depth |
18,80 m moulded |
|
Speed |
Service: 14,5 knots Max: 15,4 knots |
|
Built |
2011 |
|
Keel laid |
09/10/2010 |
|
Launch date |
29/11/2010 |
|
Delivery date |
28/02/2011 |
|
Builder |
Hyundai Mipo Dockyard Company Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
H2202 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 3 Oil tight: 10 Non tight: 1 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C7 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 8.598 kW at 123,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Water tube boiler - 7 MPa 1x Unfired Exhaust Gas Boiler - 7 MPa Manufacturer: Kangrim Heavy Industry |
|
Generators |
3x Hyundai/Himsen 5H21/32 - 4 stroke 5 cylinder 210x 320 mm diesel engine each 780 kW connected with generators each 730 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity |
54.411,2 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.800 m³ |
|
Pumps |
12x Framo Cargo pumps each 600 m³/h 2x Framo cargo pumps each 300 m³/h 1x Framo cargo pumps 75 m³/h 2x Framo ballast pumps each 900 m³/h |
|
Max. loading rate |
3.600 m³/h |
|
Max. discharging rate |
3.600 m³/h |
|
Tank capacities |
Ballast: 22.256,80 m³ Lube oil: 110,40 m³ Fresh water: 391,40 m³ Hydraulic oil: 17,90 m³ Diesel oil: 210,00 m³ Fuel oil: 1.426,80 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 ton 1x Engine room overhead crane - SWL 3,0 t 1x Provision crane - SWL 3.0 t |
|
Crew size |
25 |
|
Operator |
Ishima Pte Ltd. 6 Battery Road #34-01 Singapore 049909 Republic of Singapore |
|
Registered owner |
Glenda International Shipping Limited The Anchorage 17-19 Sir John Rogerson's Quay Dublin, 2 Ireland |
|
Latest data adjustment |
07 September 2020 |
