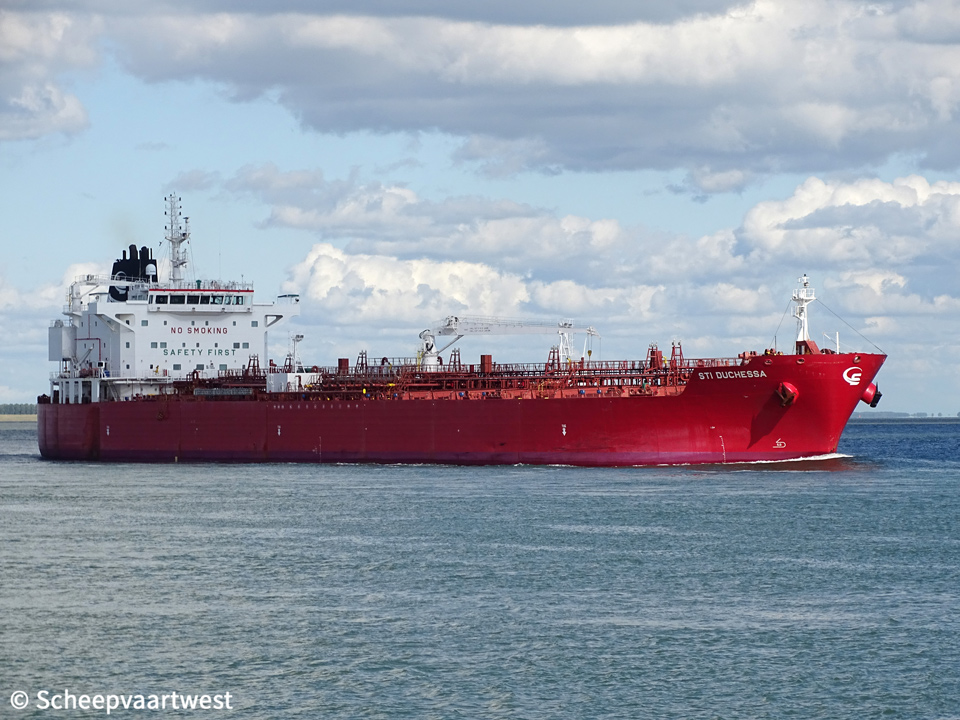

Westerschelde 10 July 2020 |
|
Name |
STI DUCHESSA |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9669938 |
|
Call sign |
V7CA3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
29.785 t Suez: 31.623,45 t |
|
DWT |
Summer: 49.990,2 t |
|
NT |
13.224 t Suez: 27.515,13 t Panama: 24.724 t |
|
Displacement |
60.613 t |
|
Length |
183,12 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,3 m |
|
Freeboard |
6.065 mm |
|
Depth |
19,40 m moulded |
|
Speed |
14,5 knots |
|
Built |
2014 |
|
Keel laid |
01/07/2013 |
|
Launch date |
13/09/2013 |
|
Delivery date |
27/01/2014 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2389 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/HHI 6G50ME-B9.3 - 2 strone 6 cylinder 500 x 2.500 mm combustion engine 8.090 kW at 90,7 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Auxiliary boiler - 9,0 MPa - Aalborg(Mission) OL 1x Composite boiler - 9,0 MPa - Aalborg OC Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Hyundai/Himsen 6H21/32 - 4 stroke 6 cylinder 201 x 320 mm diesel engines each 900 kW connected with generators each 850 kW Manufacturer: HHI Electro Electric System |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
54.816,20 m³ |
|
Number of slop tanks |
2 |
|
Pumps |
12x Cargo pumps each 500 m³/h |
|
Tank capacities |
Hydraulic oil: 17,90 m³ Ballast: 22.443,60 m³ Fresh water: 276,40 m³ Lub oil: 131,10 m³ Fuel oil: 1.458,70 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane port - SWL 2,0 t 1x Provision Crane Stbd - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
25 |
|
Operator |
Scorpio Marine Management India Pvt Ltd. |
|
Registered owner |
Hai Kuo Shipping 1653 Limited Shanghai China |
|
Latest data adjustment |
25 September 2020 |
