Westerschelde 06 August 2019 |
|
Name |

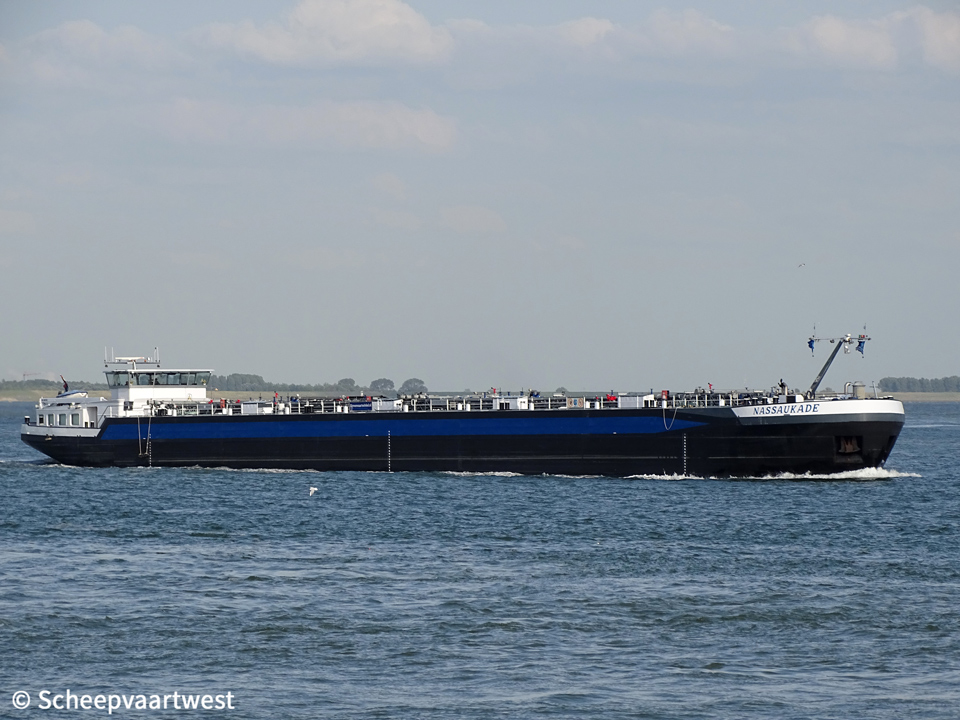

NASSAUKADE |
|
Type |
Inland tanker |
|
ENI-number |
02331740 |
|
Call sign |
PB3070 |
|
Flag |
The Netherlands |
|
Port of registry |
Hellevoetsluis |
|
Tonnage |
3.300 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,78 m |
|
Depth |
5,50 m |
|
Built |
2008 |
|
Builder casco |
Centromost Stocznia Rzeczna Plock Poland |
|
Builder completion |
Bijlsma Shipyard Lemmer The Netherlands |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA electronic engine 1.836 hp / 1.349 at 1.600 rpm |
|
Gearbox |
1x Masson Marine type MM W7350 - reduction 5031:1 |
|
Propellers |
1x Left-handed 5 blade propeller diameter 1.750 mm with nozzle diameter 1.762 mm |
|
Generators |
1x Caterpillar C18 ACERT diesel engine connected with Marathon 572 RSL 4030 generator 525 kVA 1x Caterpillar C18 ACERT diesel engine connected with Marathon 572 RSL 4028 generator 520 kVA 2x John Deere 4045 HFU72 diesel engines connected with Marathon 363 CSL 1607 generators each 85 kVA |
|
Pumps |
2x EPS 500 cargo pumps each 500 m³/h connected with ABB electro motor each 230 kW 2x EPS 10 slop tank pumps each 10 m³/h connected with ABB electro motor each 7,5 kW |
|
Bow thruster |
1x Verhaar Omega-Jet 31130-4k electro motor 375 kW - 1.780 rpm |
|
Cargo tank capacity |
3.800 m³ |
|
Owner |
Nassaukade Tankvaart CV Hellevoetsluis The Netherlands |
|
Latest data adjustment |
26 September 2020 |
