Vlissingen 25 February 2020 |
|
Name |

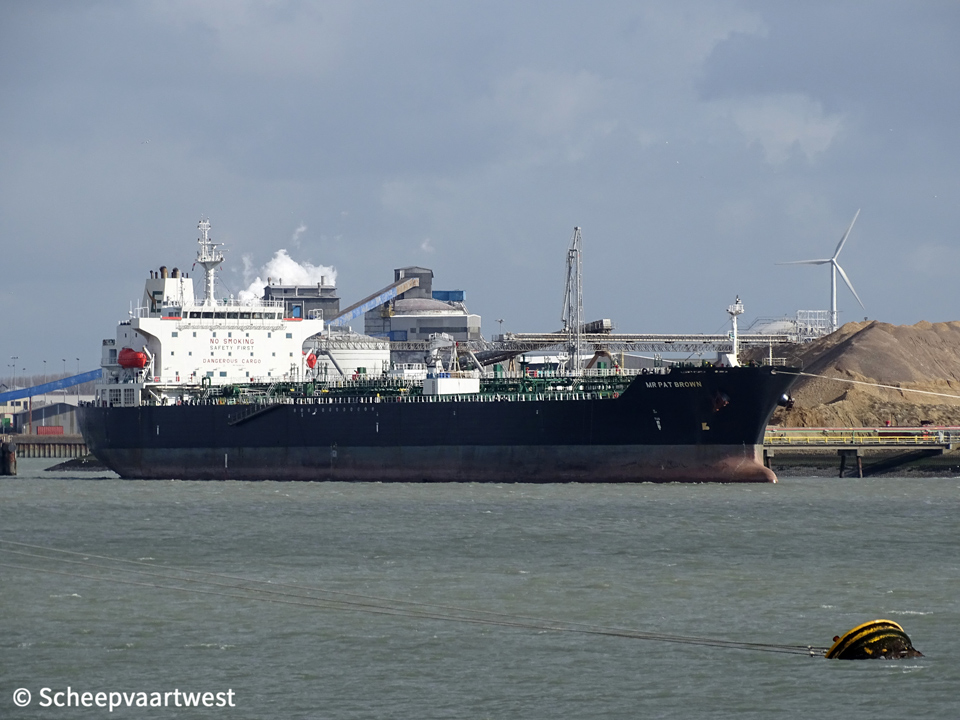

MR PAT BROWN |
|
Previous names |
2009 Launch as: Warhol 2009 - 01/2014 Miss Marilena |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9428334 |
|
Call sign |
V7RE5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
30.031 t |
|
DWT |
Summer: 50.096,21 t |
|
NT |
13.395 t |
|
Displacement |
60.971,92 t |
|
Length |
183,00 m overall 175,54 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,08 m |
|
Freeboard |
6.053 mm |
|
Depth |
13,00 m |
|
Speed |
Max: 14,9 knots |
|
Built |
2009 |
|
Keel laid |
08/08/2008 |
|
Delivery date |
19/02/2009 |
|
Builder |
Spp Shipbuilding Company Ltd 537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si Gyeongsangnam-Donam Do, 664-942 South Korea |
|
Yard number |
S-1025 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Doosan/MAN-B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary water tube boiler 1x Exhaust gas water tube boiler |
|
Generators |
3x STX/MAN-B&W 6L23/30H - 4 stroke 6 cylinder 225 x 300 mm diesel engines each 970 kW connected with generators each 900 ekW |
|
Cargo tank capacity |
53.174,36 m³ |
|
Pumps |
12x cargo pumps each 600 m³/h |
|
Tank capacities |
Fresh water: 708,46 m³ Ballast: 22.322,31 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 2,5 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 3,0 t |
|
Crew |
20 |
|
Manager |
Empire Navigation Inc. Leof. Vouliagmenis 88 Elliniko 16777 Greece |
|
Registered owner |
Warhol Shipping Company Limited c/o Empire Navigation Inc. 88 Vouliagmenis Avenue Elliniko 16777 Greece |
|
Latest data adjustment |
03 October 2020 |
