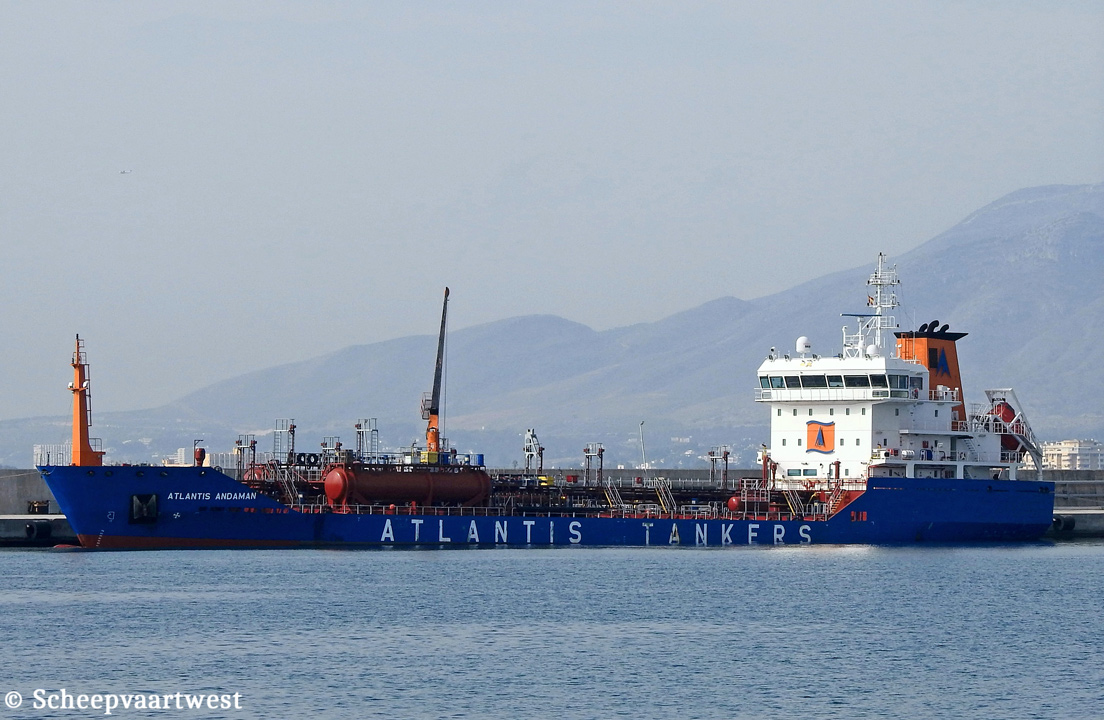

Malaga, Spain 16 September 2020 |
|
Name |
ATLANTIS ANDAMAN |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9508079 |
|
Call sign |
9HYK9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
4.263 t |
|
DWT |
Summer: 6.416,2 t |
|
NT |
1.988 t |
|
Length |
109,00 m overall 101,30 m between perpendiculars |
|
Breadth |
16,80 m |
|
Draught |
Summer: 6,65 m |
|
Freeboard |
1.661 mm |
|
Depth |
8,30 m |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Date of completion |
08/06/2009 |
|
Builder |
Istanbul Tersanesi Istanbul Turkey |
|
Yard number |
21 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M25C - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.665 kW / 3.621 hp at 750 rpm Builder: Caterpillar Motoren Gmbh & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
2x CHO 63,00 m² - 10,0 bar 1x CHR 82,70 m² - 10,0 bar |
|
Shaft generator |
1x 848 kW |
|
Generators |
3x Main diesel generatorsets each 462 kVA - 370 kW - 530 hp |
|
Emergency generator |
1x Diesel generatorset 174 kVA - 139 kW - 189 hp |
|
Bow thruster |
1x 346 kW |
|
Number of cargo tanks |
10 |
|
Cargo tank capacity |
7.167 m³ |
|
Number of slop tanks |
2 |
|
Segregation |
12x Segregation with double valves |
|
Tank capacities |
Fuel: 320,25 m³ |
|
Crew size |
13 |
|
Technical manager |
Atlantis Tankers Muallim Naci Caddesi No: 47 TR-34347 Ortaköy Beşiktaş İstanbul |
|
Commercial manager |
Armona Denizcilik AS Istanbul Turkey |
|
Registered owner |
Andaman Shipping Limited |
|
Group |
Atlantis Tankers |
|
Latest data adjustment |
23 November 2010 |
