Malaga, Spain 18 August 2020 |
|
Name |

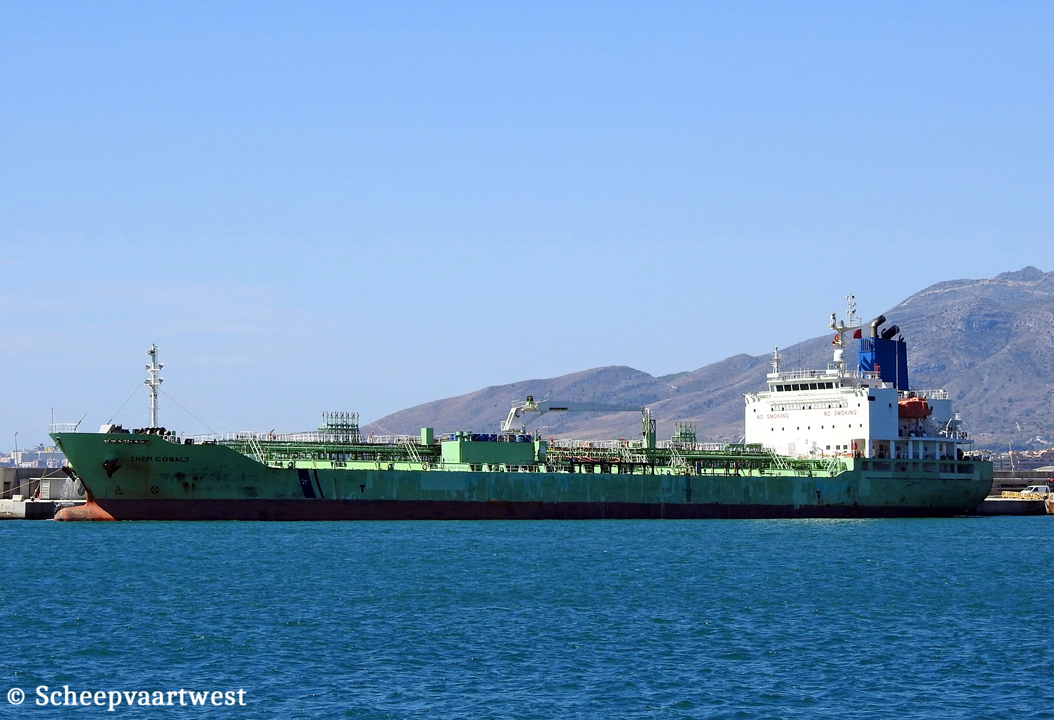

CHEM COBALT |
|
Previous names |
07/2016 - 06/2019 BW Cobalt |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9740770 |
|
Call sign |
D5TK3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2016 - 2019 Isle of Man - United Kingdom - Call sign: 2JNU5 |
|
GT |
11.918 t registered |
|
DWT |
19.989,94 t |
|
NT |
6.255 t registered |
|
Length |
146,50 m overall |
|
Breadth |
24,00 m moulded |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
138,00 x 24,00 x 13,10 m |
|
Registered L x B x D |
138,44 x 24,00 x 13,10 m |
|
Freeboard |
Summer: 3.414 mm |
|
Depth |
13,10 m moulded |
|
Speed |
Service: 14,5 knots Max: 16,3 knots |
|
Built |
2016 |
|
Keel laid |
13/10/2015 |
|
Launch date |
23/04/2016 |
|
Date of completion |
27/07/2016 |
|
Builder |
Shitanoe Ship Building Company Ltd. Usuki Japan |
|
Yard number |
7061 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Makita 6S40ME-B9 - 2 stroke single acting 6 cylinder 400 x 1.770 mm combustion engine 4.620 kW at 124,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,3 bar Evaporation: 15,95 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorset each 530 kW |
|
Bow thruster |
1x 412 kW |
|
Number of cargo tanks |
18 |
|
Cargo tank capacity |
Liquid: 22.267,82 m³ |
|
Tank capacities |
Fuel oil: 919,98 m³ Fresh water: 375,05 m³ |
|
Crew size |
23 |
|
Manager |
ASM Maritime B.V. Strawinskylaan 1979 World Trade Center, Tower I, Level 7 1077 XX Amsterdam The Netherlands |
|
Registered owner |
Chem Cobalt SA |
|
Previous names & owners |
07/2016 - 06/2019 BW Cobalt - Lemax Ltd. |
|
Latest data adjustment |
23 November 2020 |
