Vlissingen 10 September 2018 |
|
Name |

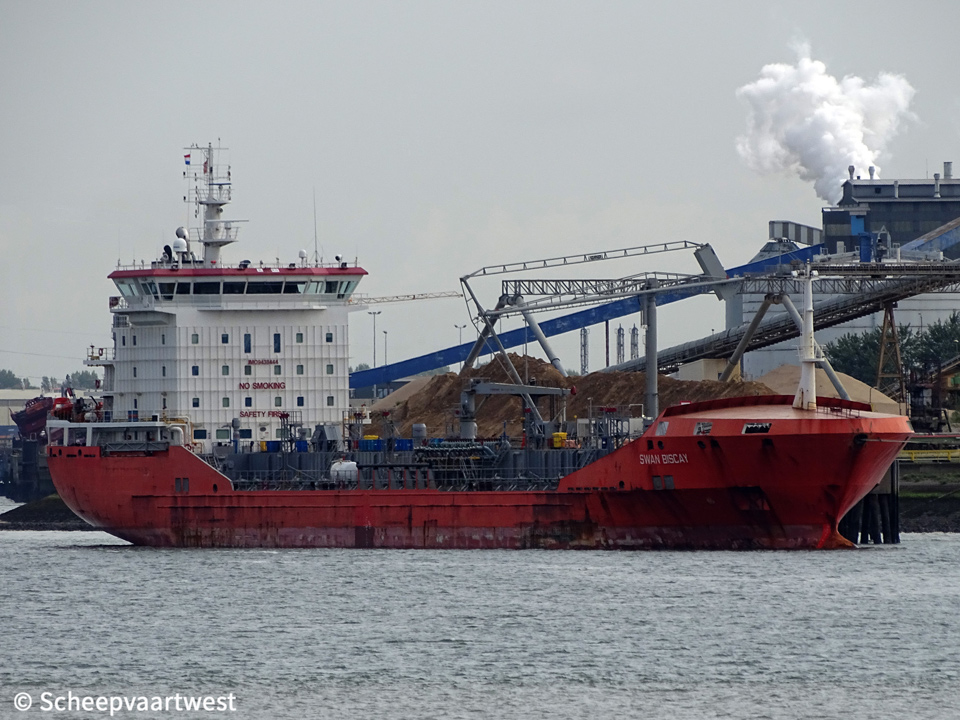

SWAN BISCAY |
|
Previous names |
2008 - 11/2014 Ozay 6 |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9438444 |
|
Call sign |
V7JH4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2008 - 2014 Turkey - Call sign: TCTB9 |
|
GT |
8.198 t |
|
DWT |
Summer: 11.530 t |
|
NT |
3.783 t |
|
Length |
130,12 m overall 123,67 m between perpendiculars |
|
Breadth |
19,60 m extreme |
|
Draught |
Summer: 8,35 m Ballast: 4,61 m |
|
Moulded L x B x D |
123,32 x 19,60 x 10,90 m |
|
Registered L x B x D |
123,67 x 19,60 x 10,90 m |
|
Height from keel to mast |
40,10 m |
|
Air draft |
35,50 m loaded condition |
|
Depth |
10,90 m moulded |
|
Freeboard |
Summer: 2.561 mm |
|
Speed |
Max: 13,8 knots |
|
Built |
2008 |
|
Keel laid |
03/03/2007 |
|
Date of completion |
02/02/2008 |
|
Builder |
Torlak Gemi Insaat Sanayi Ve Ticaret A.S Tuzla Turkey |
|
Yard number |
52 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 6M43(C) - 4 stroke single acting 6 cylinder 430 x 610 mm combustion engine 5.400 kW at 500 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 470 mm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x Auxiliary thermal oil heater - 13,0 bar Evaporation: 3.600 kW 1x Auxiliary Exhaust gas boiler - 7,0 bar Evaporation: 3.600 kW Manufacturer: Aalborg Boiler Production |
|
Generators |
3x Yanmar 6N18(A)L-EV main diesel generatorsets each 800 kW at 720 rpm Builder: Yanmar Power Technology Co., Ltd. |
|
Emergency generator |
1x MAN D2866 E diesel generatorset |
|
Bow thruster |
1x Jastram hydraulic driven 368 kW/ 500 hp |
|
Number of tanks |
20 |
|
Cargo tank capacity 98% |
13.006,18 m³ including slop tanks |
|
Slop tank capacity 98% |
544,70 m³ |
|
Number of segregations |
20 including slop tanks |
|
Pumps |
6x Framo deepwell hydraulic cargo pumps each 300 m³/h 12 x Framo deepwell hydraulic cargo pumps each 200 m³/h 2x Framo deepwell hydraulic cargo pumps each 100 m³/h 2x Framo hydraulic ballast pumps each 350 m³/h |
|
Manifolds |
Distance from bow to centre manifold: 61,50 m Distance from stern to centre manifold: 69,17 m Distance between manifolds: 865 mm Distance from ship side to manifold: 4,50 m Distance from deck / centre of manifold: 2,35 m |
|
Tank capacities |
Fuel oil: 596 m³ Fresh water: 218 m³ Ballast: 4.740,76 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 52 mm |
|
Lifting equipment |
2x Hose handling crane - SWL 5,0 t |
|
Manager |
Norstar Ship Management Pte Ltd. 1Raffles Place #58-00 One Raffles Place Singapore 048616 |
|
Time charter |
Uni-Tankers AS Turbinevej 10 DK-5500 Middelfart Denmark |
|
Registered owner |
SFIII Swan Biscay, LLC |
|
Renamed |
2020 Norstar Biscay Marshall Islands, Majuro - Call sign: V7JH4 |
|
Latest data adjustment |
09 November 2020 |
