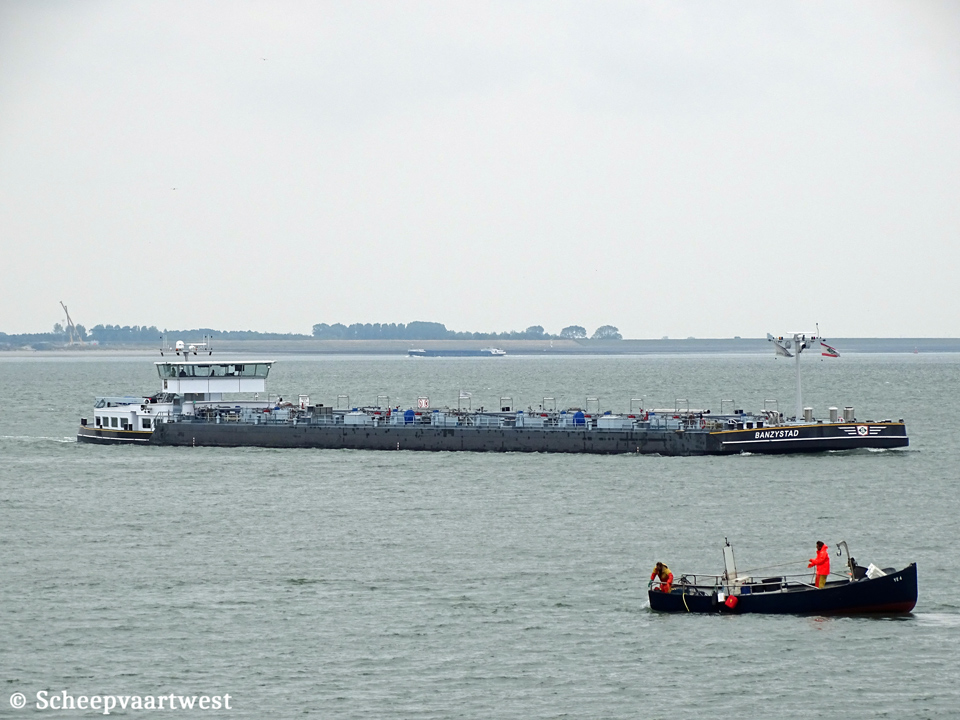

Westerschelde 11 June 2020 |
|
Name |
BANZYSTAD |
|
Type |
Inland tanker |
|
ENI-number |
02333145 |
|
Call sign |
PB5969 |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Ahn |
|
Tonnage |
4.297 t |
|
Length |
110,00 m |
|
Breadth |
13,50 m |
|
Draught |
4,26 m |
|
Built |
2009 |
|
Builder casco |
JSC Archangelsk Shipbuilding Archangels Russia |
|
Builder completion |
Den Breejen Shipyard Hardinxveld-Giessendam The Netherlands |
|
Yard number |
3519 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
2x Caterpillar 3508 (C) DI-TA electronic combustion engine each 746 kW / 1.014 hp at 1.600 rpm |
|
Gearbox |
Masson Marine type MM W17000 reduction 4,950:1 |
|
Generators |
1x Caterpillar type C32 diesel engine connected with Stamford generator 662 kW / 560 eKW 60 Hz 1x Caterpillar generatorset type C 4.4 diesel engine connected with Stamford generator 87 kVA |
|
Bow thruster |
680 hp/ 500 kW electro-motor at 1.800 rpm - Veth-Jet type 4-K-1300V |
|
Number of cargo tanks |
13x Center tanks |
|
Pumps |
13x Marflex MDPD-80 cargo pomp |
|
Cargo tank capacity |
97%: 4.731 m³ 95%: 4.634 m³ |
|
Operator |
Somers |
|
Owner |
Portus SA in Ahn G.D. Luxembourg |
|
Latest data adjustment |
07 December 2020 |
