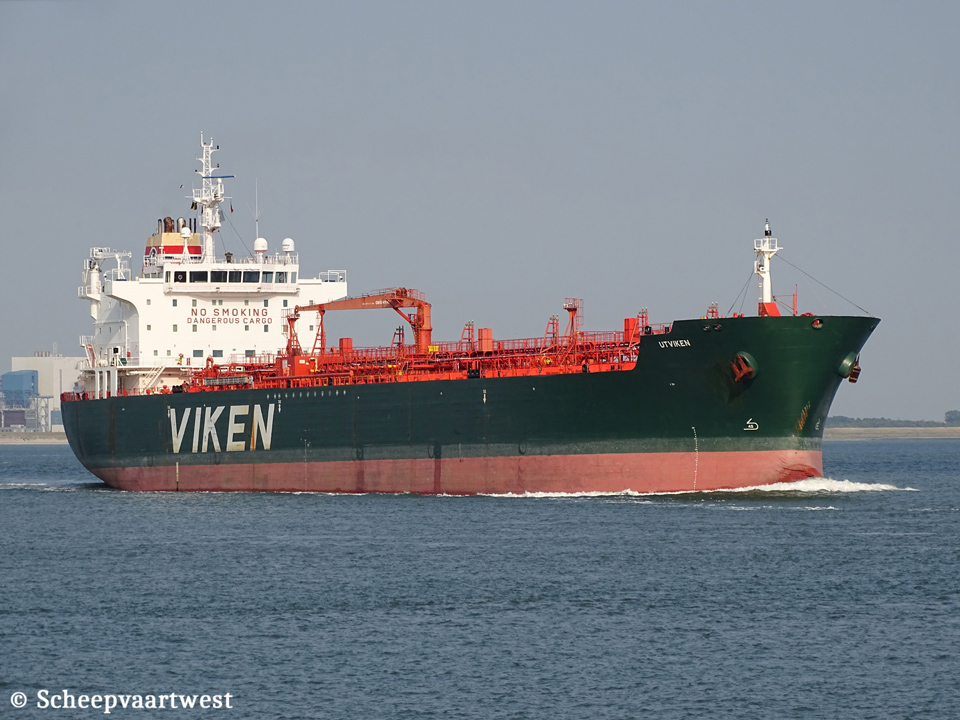

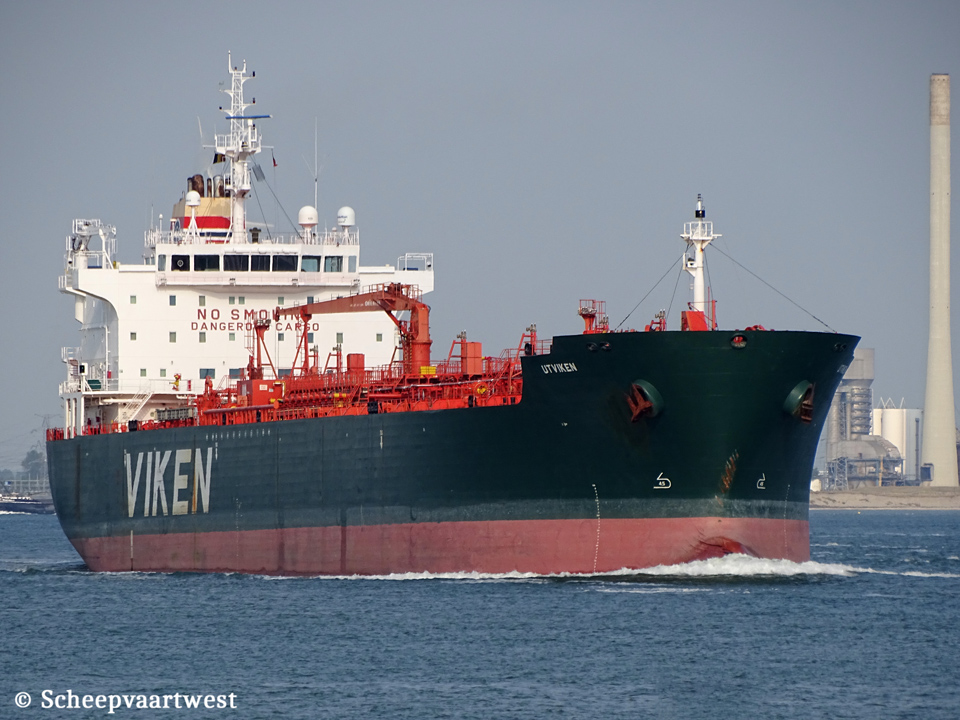

Westerschelde 10 June 2020 |
 |
| Westerschelde 10/06/20 |
|
Name |
UTVIKEN |
|
Previous names |
2009 - 2019 Orinoco Star |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9411989 |
|
Call sign |
D5RF5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 2019 Isle of Man, Douglas - Call sign: 2BTS2 |
|
GT |
23.312 t |
|
DWT |
Summer: 37.872 t |
|
Length |
185,00 m |
|
Breadth |
28,00 m |
|
Draught |
Summer: 11,52 m |
|
Depth |
16,70 m |
|
Speed |
Max: 15,5 knots |
|
Built |
2009 |
|
Keel laid |
01/11/2008 |
|
Launch date |
05/01/2009 |
|
Delivery date |
03/03/2009 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2095 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
17 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN- B&W 6S46MC-C - 6 cylinder combustion engine 7.860 kW |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary boiler, vertical shell - Mission OL Manufacturer: Alfa Laval Aalborg A/S 1x Auxiliary boiler, composite Manufacturer: Kangrim |
|
Generators |
3x Yanmar 5H21/32 diesel generatorsets each 960 kW Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Doosan Infracore diesel generatorset 120 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
42.630 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.052 m³ |
|
Pumps |
10x Framo Deepwell cargo pumps each 500 m³/h 2x Framo Deepwell cargo pumps each 300 m³/h 2x Framo Deepwell cargo pumps each 200 m³/h 2x Ballast pumps each 750 m³/h |
|
Tank capacities |
Ballast: 18.101 m³ Fuel: 900 t |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Deck crane - SWL10,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
28 |
|
Operator |
Viken shipping AS Ervikveien 24, 5106 Øvre Ervik Norway |
|
Registered Owner |
Utviken AS |
|
Latest data adjustment |
01 January 2021 |
