| Westerschelde 01 October 2018 |
 |
|
| Westerschelde 06/09/17 | |
|
Name |

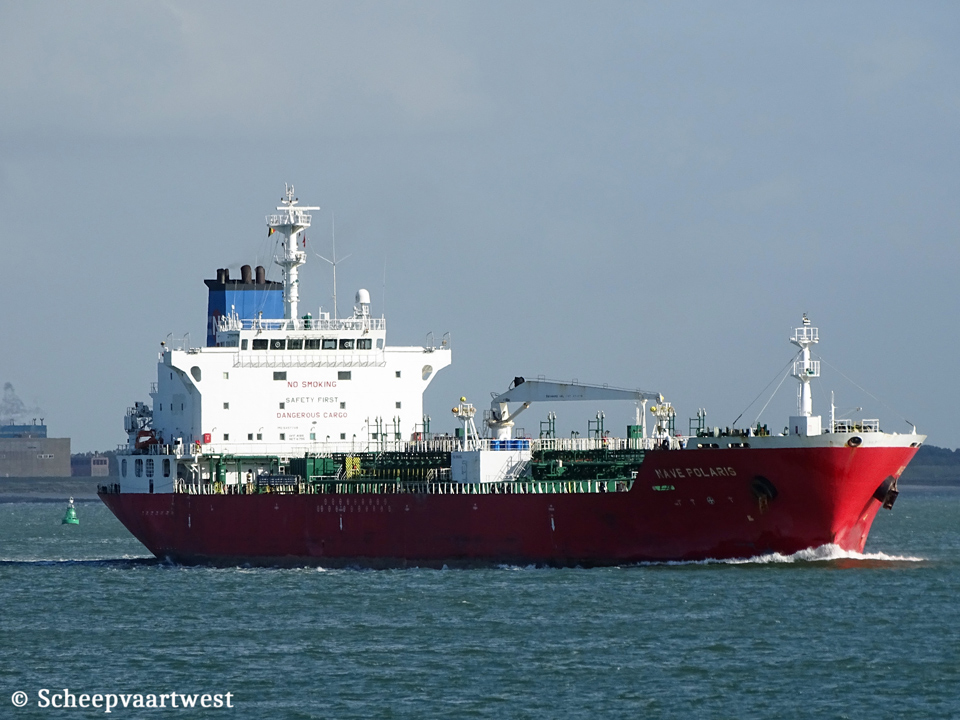

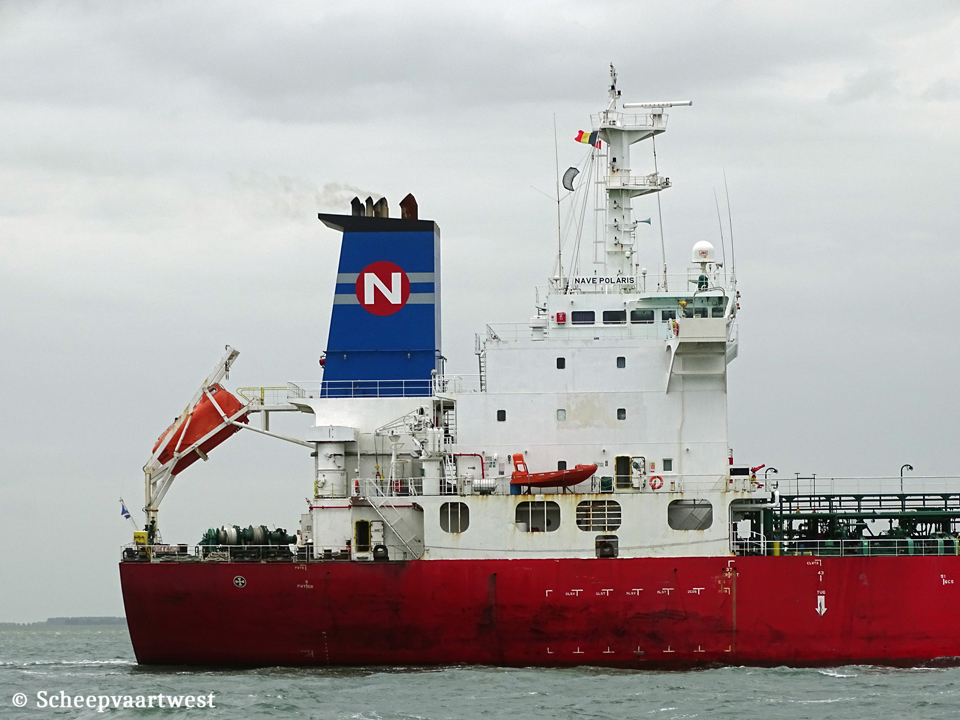

NAVE POLARIS |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9457749 |
|
Call sign |
V7VQ6 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
17.846 Suez: 18.866,98 |
|
DWT |
Summer: 25.145,42 t |
|
NT |
6.796 Suez: 16.277,23 Panama: 14.922 |
|
Displacement |
32.829,39 t |
|
Length |
170,10 m overall |
|
Breadth |
26,20 m moulded |
|
Draught |
Summer: 10,12 m |
|
Reg. dimensions L x B x D |
161,94 x 26,20 x 15,60 m |
|
Rule dimensions L x B x D |
161,00 x 26,20 x 15,60 m |
|
Air draft |
34,99 m |
|
Freeboard |
5.512 mm |
|
Depth |
15,60 m moulded |
|
Speed |
15,5 knots |
|
Built |
2011 |
|
Keel laid |
31/08/2009 |
|
Launch date |
30/10/2010 |
|
Delivery date |
27/01/2011 |
|
Builder |
Dae Sun Shipbuilding & Engineering Co., Ltd. 12, 4-GA, Bongnae-Dong, Youngdo-Gu Busan South Korea |
|
Yard number |
SB494 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x STX/MAN-B&W 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW at 129,0 rpm Manufacturer: STX Engine Co., Ltd.(B&W), Changwon - South Korea |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Sil La Metal Co. |
|
Boilers |
1x Fired boiler Mission OL - 9,0 MPa 1x Unfired Exhaust Gas Boiler Mission XS-2V - 9,0 MPa Manufacturer: Aalborg Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 850 kW / 1.063 kVA - 450 Volt Manufacturer: HHI Electro Electric System |
|
Bow thruster |
1x 736 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
100%: 31.283,63 m³ 98%: 30.522 m |
|
Number of slop tanks |
2 |
|
Pumps |
12x Cargo pumps each 260 m³/h 2x Cargo pumps each 150 m³/h |
|
Tank capacities |
Hydraulic oil: 14,11 m³ Fuel oil: 1.523,36 m³ Ballast: 13.740,81 m³ Fresh water: 641,28 m³ Lube oil: 122,07 m³ Diesel oil: 112,76 m³ |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 10,0 t 1x Provision crane - SWL 2,2 t Manufacturer: Se Kwang Marine Machineries Co., Ltd. 1x Engine room overhead crane - SWL 2,0 t Manufacturer: Dae Kyung Co., Ltd. |
|
Crew |
25 |
|
Manager |
Navios Tankers Management Inc. 85 Akti Miaouli Street Piraeus 185 38 Greece |
|
Registered owner |
Andros Shipping Corporation Care of Navios Tankers Management Inc. 85 Akti Miaouli Street Piraeus 185 38 Greece |
|
Renamed |
2023 Songa Polaris Malta, Valletta - Call sign: 9HA5797 Manager: Songa Shipmanagement Ltd.,Paisley - United Kingdom Owner: Shine Treasure SA, Kobe - Japan |
|
Latest data adjustment |
26 November 2024 |
