Westerschelde 14 June 2019 |
|
Name |

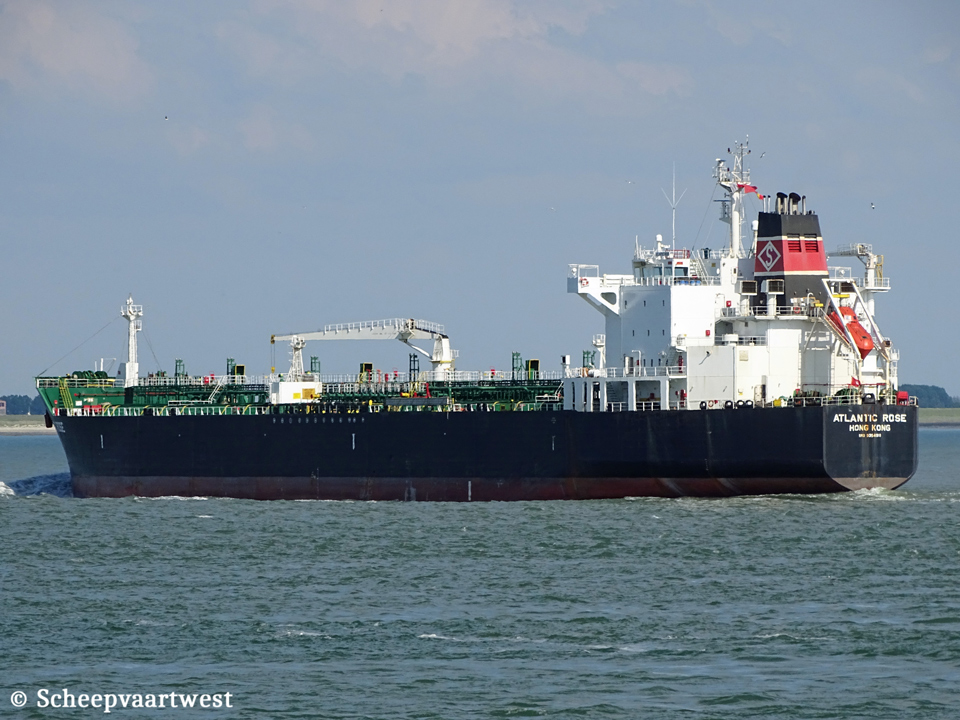

ATLANTIC ROSE |
|
Type |
Oil product tanker |
|
IMO-number |
9354911 |
|
Call sign |
VREF7 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29,266 t Suez: 30.870,22 t |
|
DWT |
Summer: 49.999 t Winter: 43.729 t |
|
NT |
13.134 Suez: 27.285,61 t Panama: 24.299 t |
|
Displacement |
Summer: 54.151 t Winter: 52.881 t |
|
Length |
183,21 m overall |
|
Breadth |
32,23 m extreme |
|
Draught |
Summer: 11,81 m Winter: 11,56 m |
|
Reg. dimensions L x B x D |
175,56 x 32,20 x 18,80 m |
|
Rule dimensions L x B x D |
174,00 x 32,20 x 18,80 m |
|
Keel to masthead |
47,48 m |
|
Air draft |
Summer deadweight: 35,67 m Normal ballast: 40,82 m Lightship: 45,15 m |
|
Freeboard |
Summer: 7.021 mm Winter: 7.267 mm |
|
Depth |
18,80 m |
|
Speed |
Ballast max: 14,0 knots / Economic: 12,5 knots Laden max: 14,0 knots / Economic: 12,5 knots |
|
Built |
2008 |
|
Keel laid |
19/05/2008 |
|
Launch date |
21/07/2008 |
|
Date of completion |
11/09/2008 |
|
Builder |
Hyundai Mipo Dockyard Co,, Ltd, Ulsan South Korea |
|
Yard number |
2012 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
Transverse: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2,000 mm combustion engine 9,480 kW at 127,0 rpm Build: 05/2008 Manufacturer: Hyundai Heavy Industries Co,, Ltd,, Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
Auxiliary water tune boiler - 8,8 kg/cm² Heating surface: 191,8 m² Economizer water tune boiler - 11,7 kg/cm² Heating surface: 366,0 m² Build: 05/2008 Manufacturer: Kangrim Heavy Industrial Co,, Ltd,, Changwon - South Korea |
|
Generators |
3x HHI-EMD 5H21/32 main diesel generatorsets each 720 kW / 912 kVA - 450 Volt |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
Seg#1: 6.763,8 m³ (1p/s) Seg#2: 9.138,8 m³ (2p/s) Seg#3: 9.317,6 m³ (3p/s) Seg#4: 9.317,6 m³ (4p/s) Seg#5: 9.300,8 m³ (5p/s) Seg#6: 8.068,2 m³ (6p/s) Total: 51.906,8 m³ |
|
Number of slop tanks |
2 |
|
Slop tanks capacity |
1,174,8 m³ (slop p/s) |
|
Number of pumps |
12x Framo submerged hydraulic centrifugal cargo pumps each 600 m³/h 2x Framo submerged hydraulic centrifugal cargo pumps each 300 m³/h 2x Frama ballast pumps each 750 m³/h |
|
Maximum loading rate |
3.600 m³/h |
|
Maximum discharging rate |
3.600 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 56,75 m Bow to centre manifold: 92,22 m Stern to centre manifold: 90,99 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 650 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Fuel oil: 1.422,2 m³ Fresh water: 292,8 m³ Water ballast: 4,690,9 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 1x Engine room crane - SWL 2,0 t 1x Provision crane - SWL 2,0 t |
|
Crew |
20 |
|
Manager |
Diamond S Management LLC 33 Benedict Pl Greenwich, CT 06830-5316 United States |
|
Technical operator |
Anglo Eastern Ship Management (S) Pte Ltd. 200, Cantonment Road #16-02 South Point Singapore 089763 Republic of Singapore |
|
Commercial operator |
Norient Product Pool ApS Strandvejen 52 DK-2900 Hellerup Denmark |
|
Registered owner |
Heroic Saggittarius Inc (Hong Kong) Care of Diamond S Management LLC 33 Benedict Place, 2nd Floor, Greenwich, CT 06830 United States |
|
Latest data adjustment |
18 June 2021 |
