Westerschelde 27 December 2018 |
 |
 |
 |
 |
|||

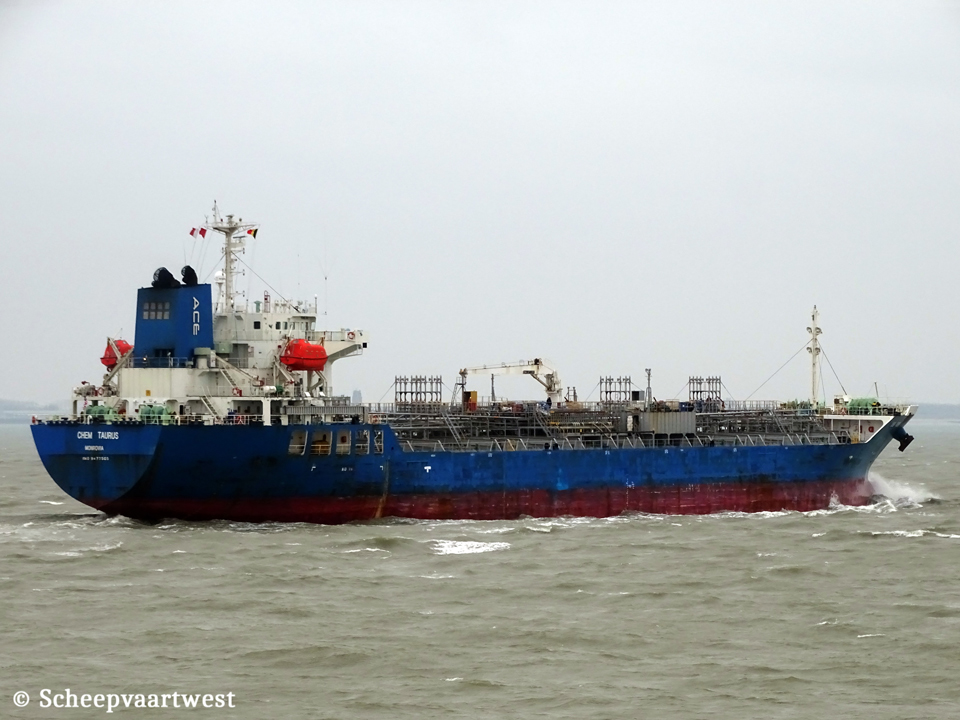

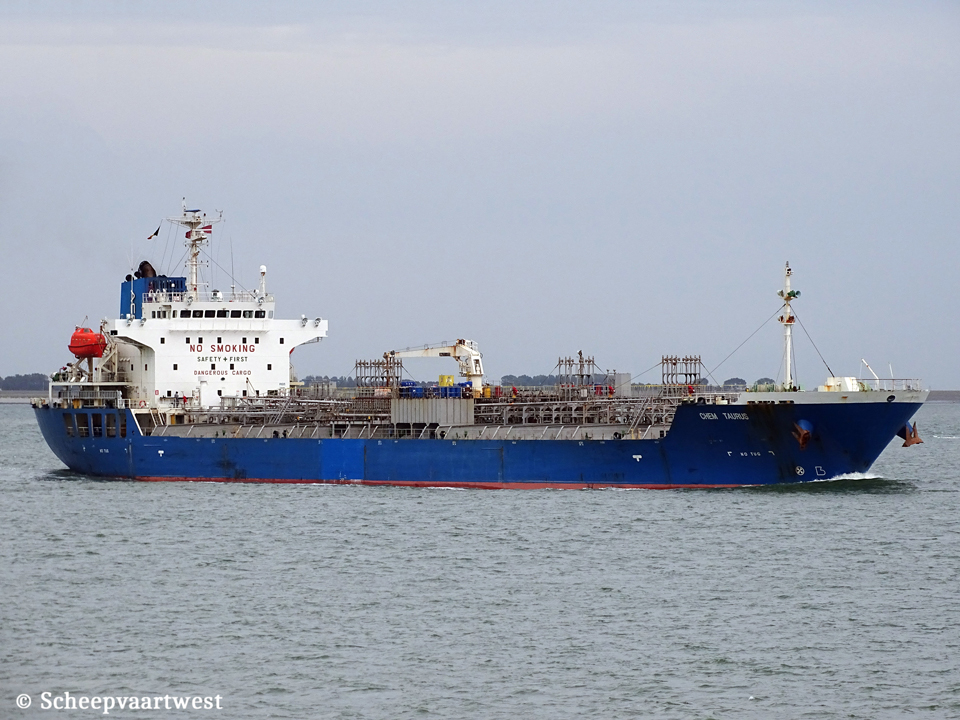

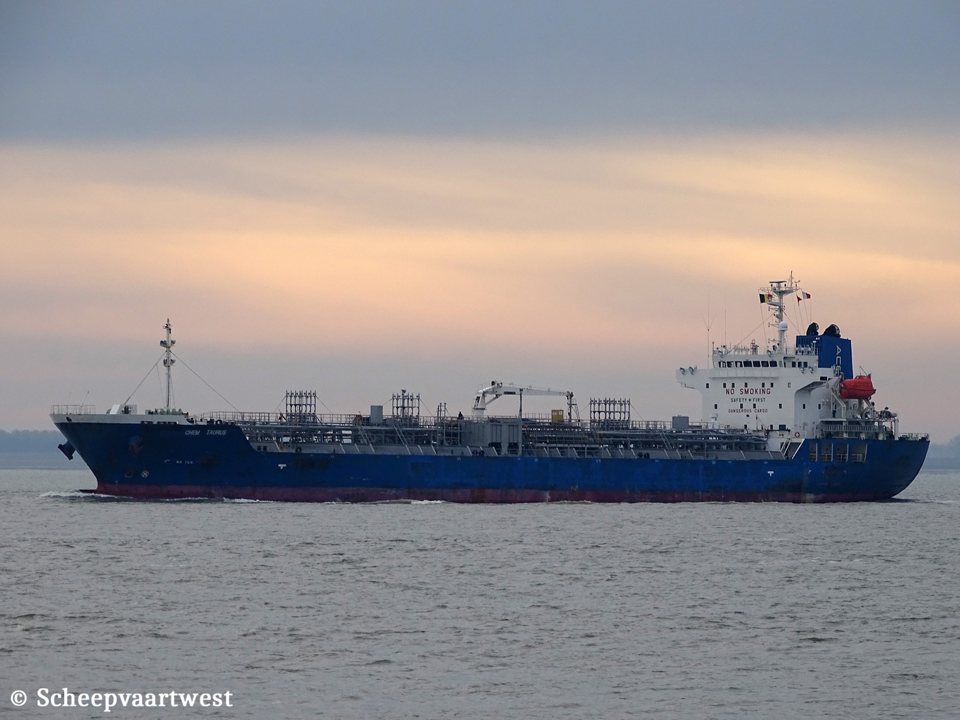

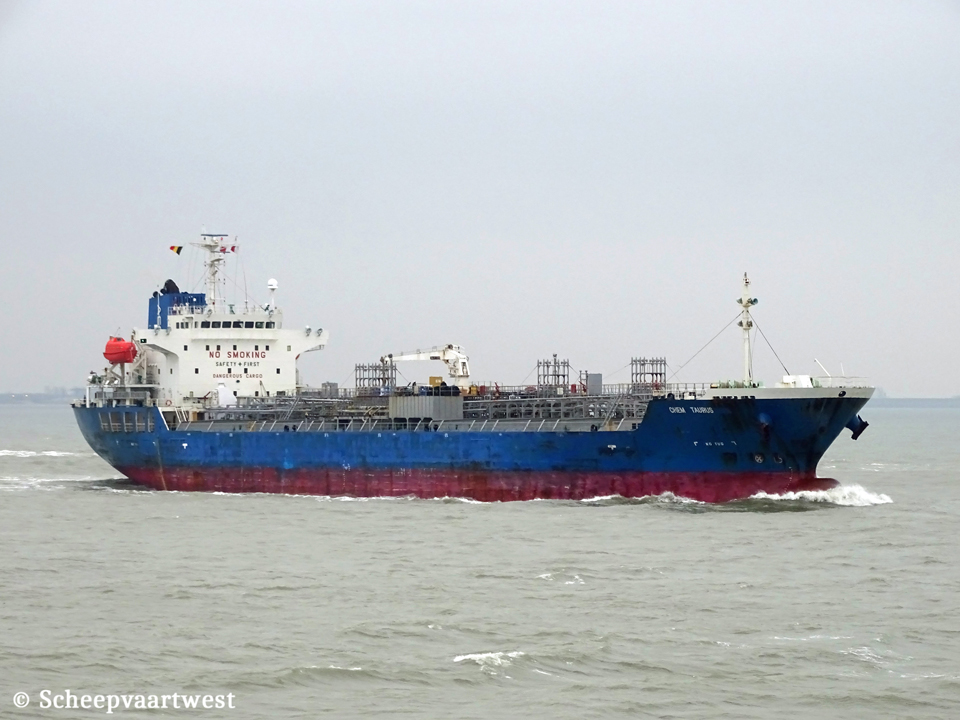

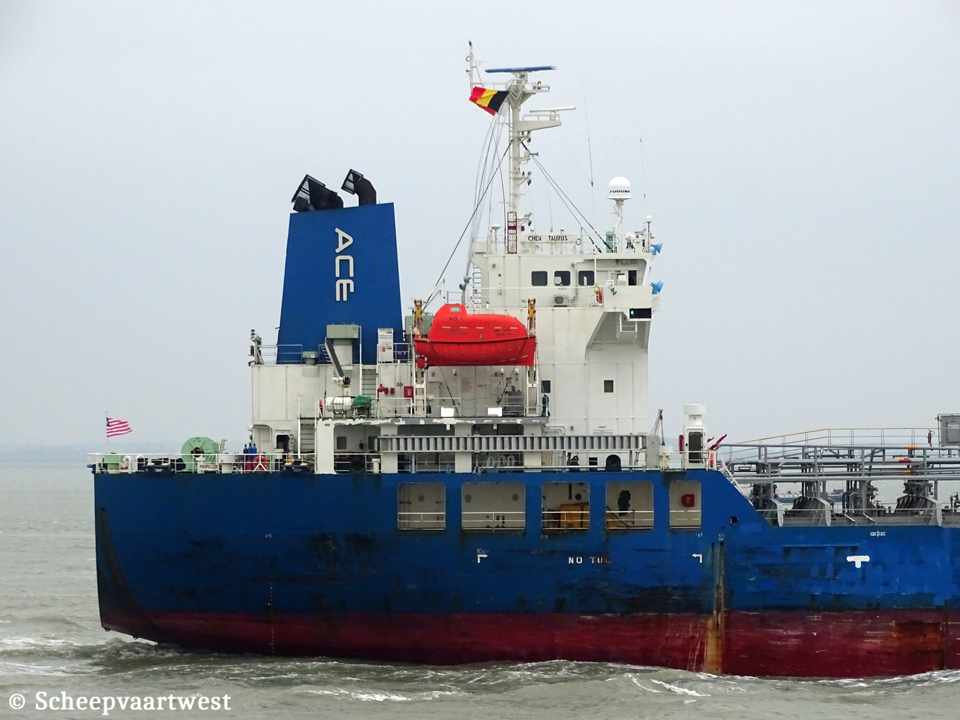

| Westerschelde 29/12/18 | Westerschelde 29/12/18 | Westerschelde 29/12/18 | Westerschelde 27/08/20 | |||
|
Name |
CHEM TAURUS |
|
Previous names |
2010 - 07/2011 Golden Yuka 07/2011 - 2018 Fairchem Yuka |
|
Type |
Oil and chemical tanker |
|
IMO-number |
9477505 |
|
Call sign |
D5PT9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2010 - 2018 Republic of Panama, Panama City - Call sign: 3ETZ6 |
|
GT |
11.655 t |
|
DWT |
Summer: 19.960,87 t |
|
NT |
6.120 t Suez: 11.864,44 t registered Panama: 9.806 t registered |
|
Length |
145,53 m overall |
|
Breadth |
23,70 m moulded |
|
Draught |
Summer: 9,71m |
|
Moulded L x B x D |
137,00 x 23,70 x 13,35 m |
|
Registered L x B x D |
137,92 x 23,70 x 13,35 m |
|
Keel to mast end |
37,20 m |
|
Freeboard |
3.664 mm |
|
Depth |
13,35 m moulded |
|
Speed |
Max.: 16,8 knots Service: 14,6 knots |
|
Built |
2010 |
|
Keel laid |
27/08/2009 |
|
Launch date |
07/11/2009 |
|
Date of completion |
18/01/2010 |
|
Builder |
Usuki Shipyard Co., Ltd. Japan |
|
Yard number |
1719 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW / 8.362 hp at 136,0 rpm Manufacturer: Hitachi Zosen Corporation Innoshima Works - Japan |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 420 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 18,94 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 460 kW / 450 Volt 60 Hz |
|
Bow thruster |
1x 641 kW |
|
Number of cargo tanks |
26 + 2 slop tanks |
|
Segregations |
26x Natural segregations |
|
Cargo tank capacity 98% |
22.171 m³ |
|
Pumps |
14x Framo Deepwell pumps each 200 m³/h 12x Framo Deepwell pumps each 330 m²/h |
|
Tank capacities |
Fuel oil: 1.397 m² Fresh water: 221 m³ Water ballast: 6.733 m³ |
|
Crew |
19 |
|
Commercial manager |
Ace Quantum Chemical Tankers Strawinskylaan 1057 1077 XX Amsterdam The Netherlands |
|
ISM manager |
ASM Maritime B.V. Strawinskylaan 1979 World Trade Center, Tower I, Level 7 1077 XX Amsterdam The Netherlands |
|
Registered owner |
Chem Taurus SA Care of Ace Quantum Chemical Tankers CV Strawinskylaan 1057 1077 XX Amsterdam The Netherlands |
|
Latest data adjustment |
13 July 2022 |
